FC6A S
ERIES
MICROS
MART
L
ADDER
P
ROGRAMMING
M
ANUAL
FC9Y-B1726 1-9
1: O
PERATION
B
ASICS
Simulate Operation
This section describes the operating procedure to check the operation of the user program before transferring it to the FC6A Series
MICROSmart.

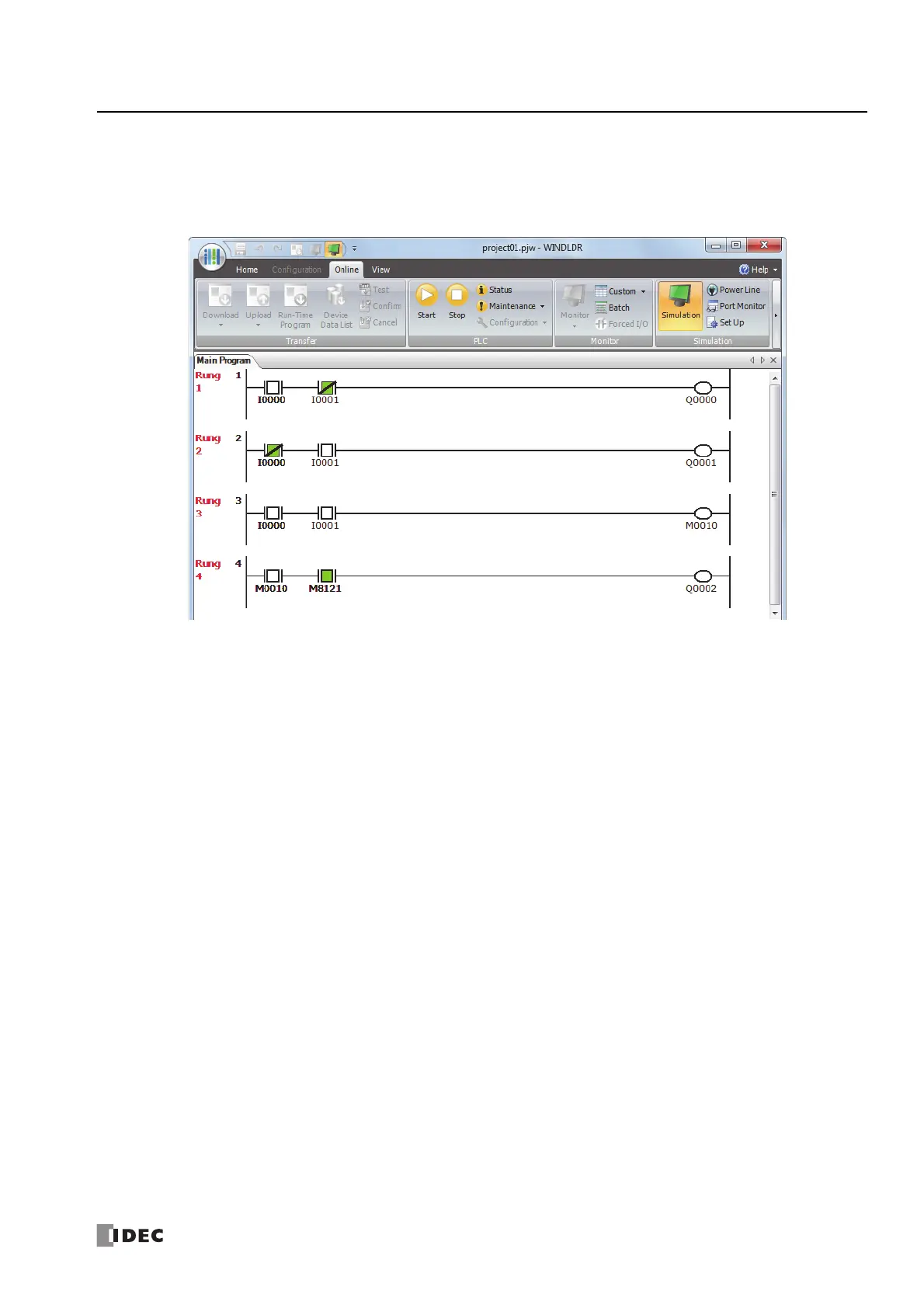

From the WindLDR menu bar, select Online > Simulation. The Simulation screen appears.
Select and right-click the input contact you want to change, and on the right-click menu, click Set or Reset.
To quit simulation, from the WindLDR menu bar, select Online > Simulation.
Notes:
• You can also change the status of an input contact by double-clicking it.
• To quit simulation, from the WindLDR menu bar, once more select Online > Simulation > Simulation.
