TRACE (Data Trace)
The filename of created CSV files is as follows:
• All-in-One CPU module:
The CSV file name is "DATE.csv." The date when the DLOG instruction is turned on is used as DATE.
Example: When the date is December 30, 2015, the file name is "20151230.csv".
•Plus CPU module:
A new folder "YYYYMMDD" (Year, Month, and Date) is created and csv files are stored in the folder. Underscore "_" and 2-digit
number "00 to 99" are appended to the csv filenames. When the file size exceeds the log data file size, a new file is created and
2-digit number is incremented and appended to the filename.
Example: When the date is April 1, 2017 and the first file in the day is created, the file is "20170401\20170401_00.csv."
When a CSV file with the same date does not exist in the folder designated by S1, the CSV file is created and the trace data is
output. The oldest data is output at the top of the trace data, and the latest data is output at the bottom of the trace data.

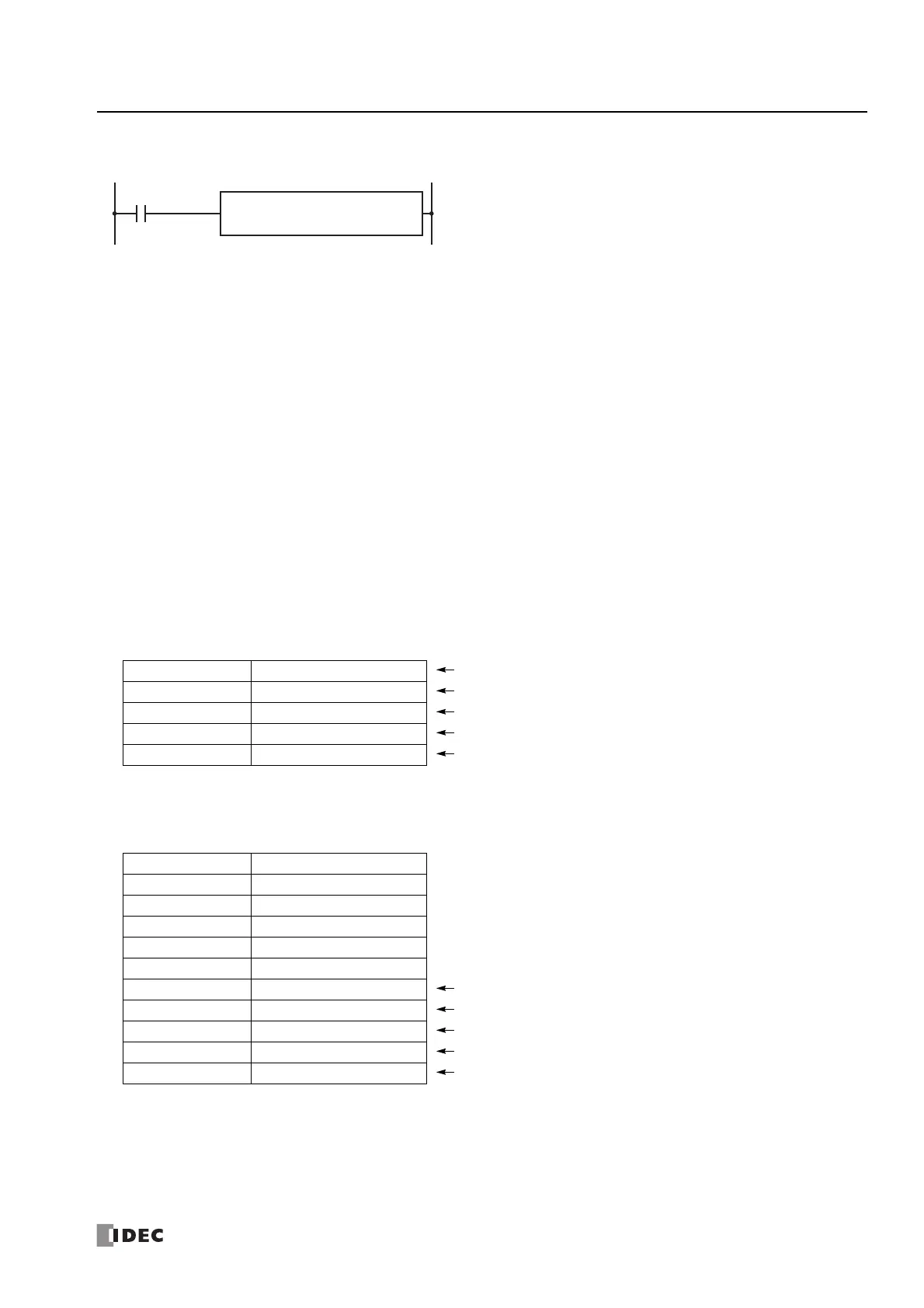

Output example
When a CSV file for the same date already exists in the folder designated by S1, the header and trace data are appended to the
CSV file.
Output example
When the execution of the TRACE instruction finishes, the device designated by D1 is turned on and the status code is stored to
the device designated by D2 according to the execution result. For status codes, see "3. D2 (destination 2): Execution Status" on
page 25-17.
The TRACE instruction saves the values for the previous number of scans for the
specified device in the specified data format as a CSV file on the SD memory card.
When the input is turned on, the date and time and the values of the previous
scans for the specified device are output to the CSV file in the folder assigned by
S1. When the execution of the instruction finishes, the device assigned by D1 is
turned on and the execution status is stored to the device assigned by D2.
When the folder assigned by S1 does not exist on the SD memory card, that
folder is created. The folder path is "FCDATA01\TRACE\User specified folder." For
details on the folder structure, see Chapter 11 "SD Memory Card" in the "FC6A
Series MICROSmart User’s Manual".
D1
*****
S1
*****
TRACE D2
*****
Triggered at: 2012/02/06 08:30:23 Header row 1
Scan D0010 Header row 2
Old 12345 Data 2 scans before
12345 Data 1 scan before
New 12345 Latest data
Triggered at: 2012/02/06 08:30:23
Scan D0010
Old 12345
12345
New 12345
Triggered at: 2012/02/06 17:16:15 Appended header row 1
Scan D0010 Appended header row 2
Old 1212 Appended data 2 scans before
1212 Appended data 1 scan before
New 1212 Appended latest data
