IDEC MICROSmart FC6A Series Ladder Programming Manual

FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726 16-1

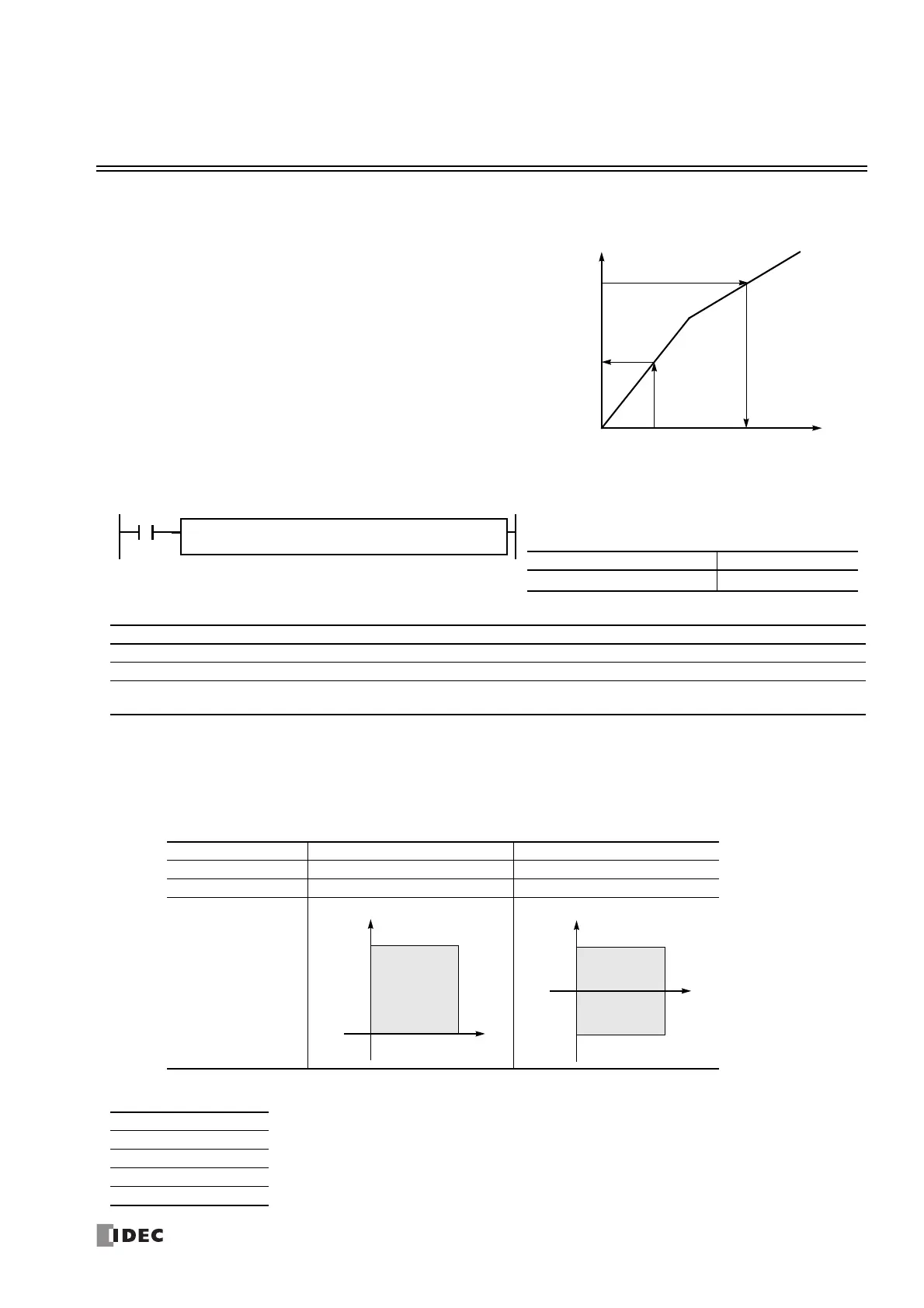

16: COORDINATE CONVERSION INSTRUCTIONS
Introduction
XYFS (XY Format Set)
Valid Devices
For valid device address ranges, see "Device Addresses" on page 2-1.
When T (timer) or C (counter) is used as X0 through Xn or Y0 through Yn, the timer/counter current value (TC or CC) is displayed.
S1 (Format number)
Select a format number 0 through 7. A maximum of 8 formats for XY conversion can be set.
Xn (X value), Yn (Y value)
Enter values for the X and Y coordinates. Two different data ranges are available depending on the data type.
Valid Data Types
This chapter describes the coordinate conversion
instructions that convert one data point to another
value using the linear relationship between the values
of X and Y.
(X0, Y0)
(X1, Y1)
(X2, Y2)
X
Y
When input is on, the format for XY conversion is set. The XY
coordinates define the linear relationship between X and Y.
No. of XY Coordinates n
2 to 32 0 ≤ n ≤ 31
XYFS(*) S1
*
Y0
*****
Xn
*****
.....
X0
*****
Yn
*****
Device Function I Q M R T C D P Constant Repeat
S1 (Source 1) Format number ———————— 0 to 7 —
X0 through Xn X value X X X X X X X — 0 to 65,535 —
Y0 through Yn Y value XXXXXXX—
0 to 65,535
–32,768 to 32,767
—
Data Type Word Integer
Xn (X value) 0 to 65,535 0 to 65,535
Yn (Y value) 0 to 65,535 –32,768 to 32,767
Valid Coordinates
W (word) X When a bit device such as I (input), Q (output), M (internal relay), or R (shift register) is assigned as Xn or Yn, 16
points are used.
When a word device such as T (timer), C (counter), or D (data register) is assigned as Xn or Yn, 1 point is used.
I (integer) X
D (double word) —
L (long) —
F (float) —
Y
0
65,535
65,535
X
Y
0
32,767
–32,768
X
65,535
