FC6A S
ERIES
MICROS
MART
L
ADDER
P
ROGRAMMING
M
ANUAL
FC9Y-B1726 11-5
11: W
EEK
P
ROGRAMMER
I
NSTRUCTIONS
5. D1 (destination 1): Output
This setting configures the output for the results when the configured day of the week and time and the current day of the week
and time are compared.
6. Pulse Output
This setting configures the operation for D1 (output). This setting is applied to all parameter tabs.
Selected check box
When the day of the week and the time configured in the ON settings matches the current day of the week and the time, the
output is turned on for only one scan.
Unselected check box
The output is turned on and off according to the ON settings and the OFF settings.

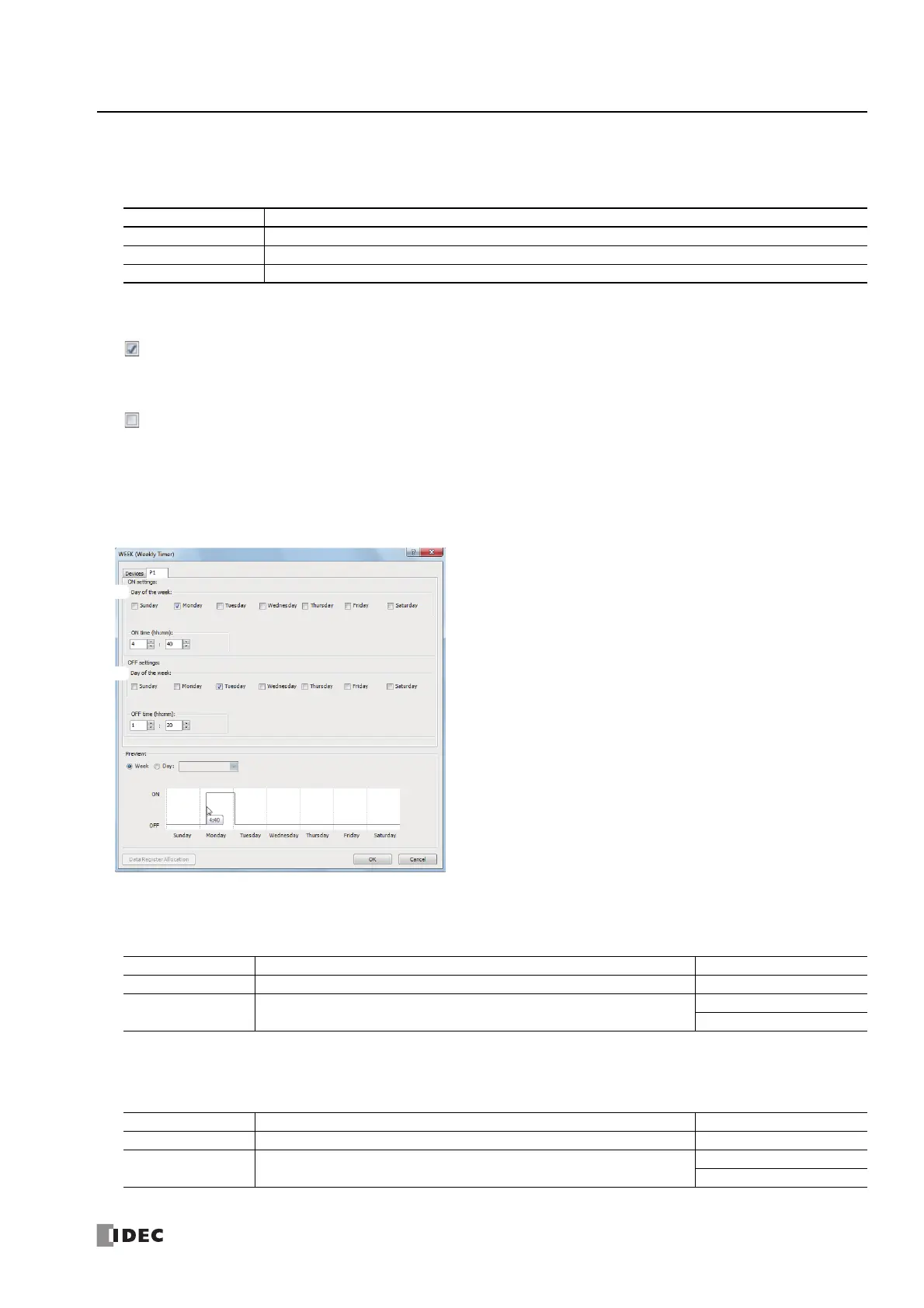

• Parameter tab
This tab configures the ON/OFF settings for the output. A maximum of 20 parameter tabs can be configured for one WEEK
instruction.
1. ON settings
This section configures the day of the week and the time to turn on the output. The output is turned on at the specified time for
the specified day of the week.
2. OFF settings
This section configures the day of the week and the time to turn off the output. The output is turned off at the specified time for
the specified day of the week.
Setting Description
Tag Name Specifies the tag name or the device address for each device.
Device Address Shows the device address that corresponds to the tag name.
Comment Shows the comment for the device address. This item can be edited.
Setting Description Range
Day of the week Specifies the days of the week. —
ON time Used to enter the time. Set the time in a range from 00:00 to 23:59.
Hour: 0 to 23
Minute: 0 to 59
Setting Description Range
Day of the week Specifies the days of the week. —
OFF time Used to enter the time. Set the time in a range from 00:00 to 24:00.
Hour: 0 to 24
Minute: 0 to 59
