FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726 11-25
11: W EEK P ROGRAMMER I NSTRUCTIONS

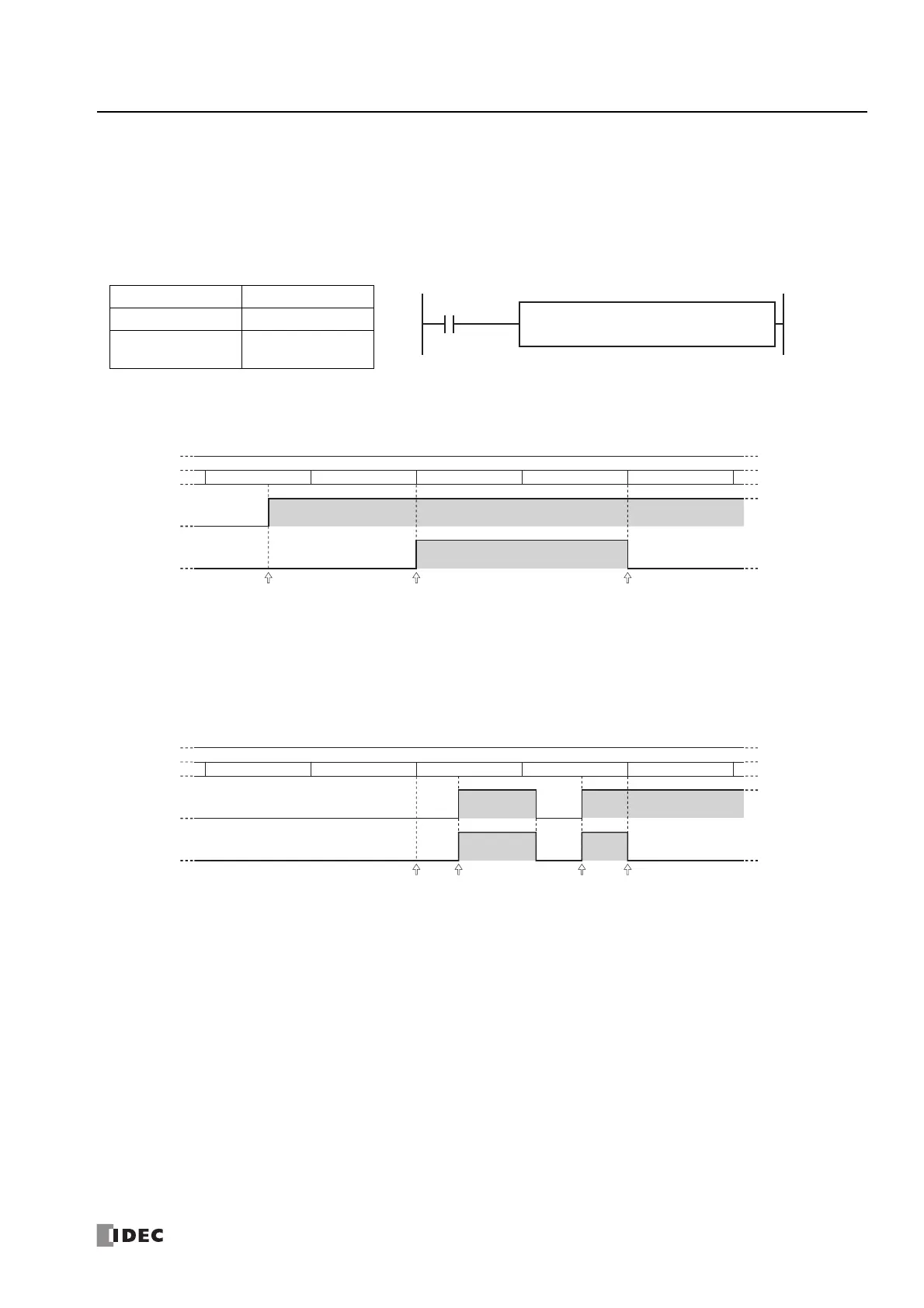

Timing Chart when the Input Turns On during the Configured Interval
When the input turns on or off during the interval between the ON settings and the OFF settings, and when the input turns on or
off after 0:00 on the date configured by the ON settings when pulse output is enabled, the timing chart is as follows.
• When pulse output is disabled
When the input is turned on, the current date and the ON and OFF settings are compared and the output turns on or off.
[When the input is on before the day specified by the ON settings]
On February 13, 2012, when the input is turned on, the result of the current date compared with the ON and OFF settings is not
within the ON and OFF settings (February 15 to February 17, 2012). Therefore, the output remains off.
[When the input is turned on or off during the interval between the ON and OFF settings]
On February 15, 2012, when the input is turned on, the result of the current date compared with the ON and OFF settings is within
the ON and OFF settings (February 15 to February 17, 2012). Therefore, the output turns on. The output turns off when the input
is turned off.
On February 16, 2012, when the input is turned on, the result of the current date compared with the ON and OFF settings is that
the output is turned on.
Settings
ON settings February 15, 2012
OFF settings February 17, 2012
Output port Q0
D1
Q0
S2YEAR S1 S3
1
M0000
Input M0000
ON
OFF
Output Q0
ON
OFF
13th
February 2012
Current date
14th 15th
16th
17th
Judgment ON settings
OFF settings
Input M0000
ON
OFF
Output Q0
ON
OFF
13th
February 2012
Current date
14th 15th
16th
17th
JudgmentON settings OFF settingsJudgment
