IDEC MICROSmart FC6A Series Ladder Programming Manual

28: U SER - DEFINED M ACRO I NSTRUCTION
28-8 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

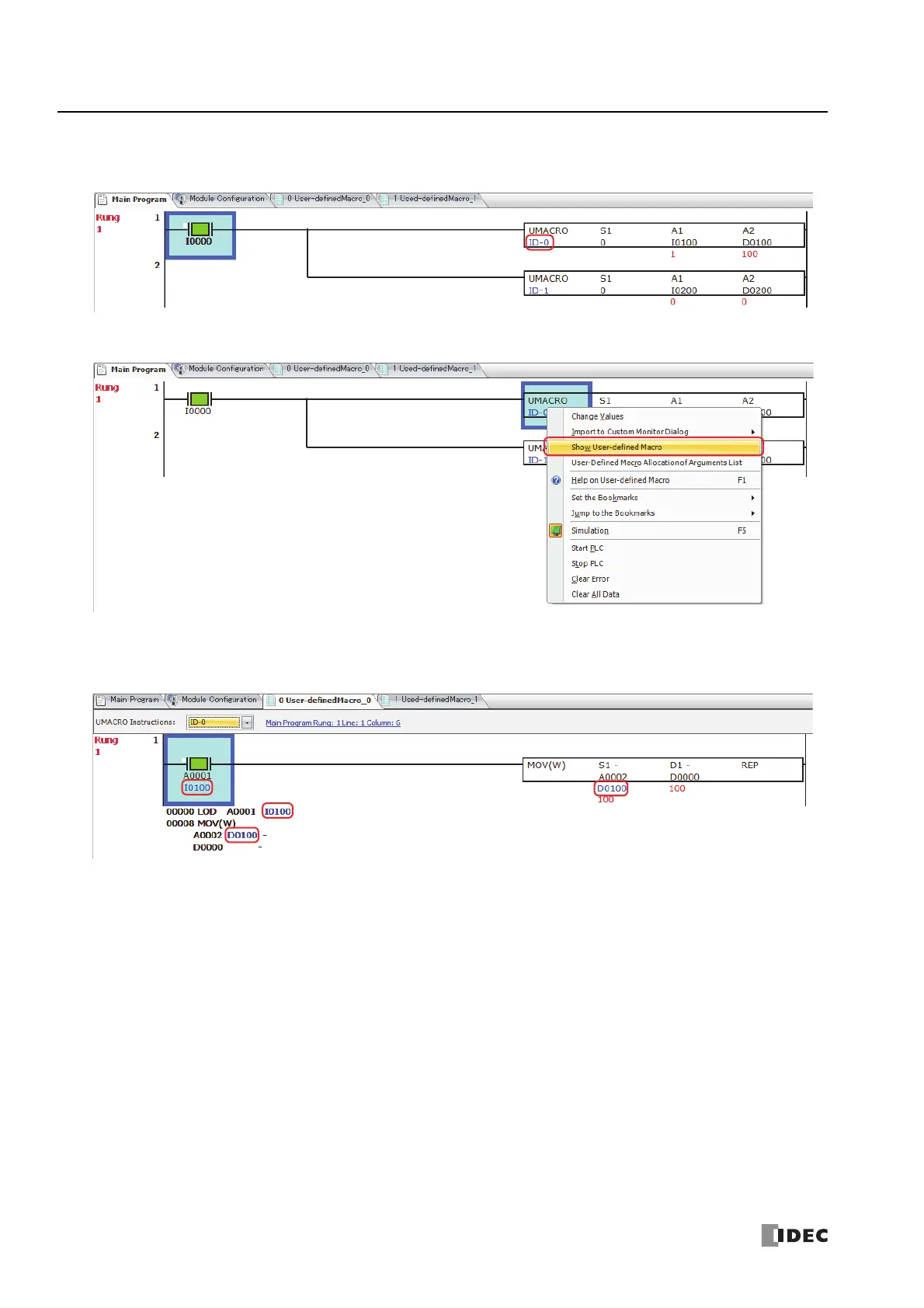

1. When the simulation and monitor are executed, the UMACRO instruction ID is displayed on the UMACRO instruction. UMACRO
instruction IDs are assigned to identify the UMACRO instructions that have been set.
2. Select and right-click a UMACRO instruction, and then click Show User-defined Macro on the right-click menu.
3. The user-defined macro opens that has the number set for the UMACRO instruction. The set argument devices (A1 to A100)
are simulated and monitored according to the status of the device address or tag name set for the UMACRO instruction that
called the user-defined macro.
The colors of the ID displayed on the UMACRO instruction and the device address, tag name, and comment of the caller of the
arguments set in the user-defined macro ladder program can be changed in the WindLDR Options dialog box.
