IDEC MICROSmart FC6A Series Ladder Programming Manual

4: B ASIC I NSTRUCTIONS
4-2 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726
Multiple OUT and OUTN
There is no limit to the number of OUT and OUTN instructions that can be programmed
into one rung.
Programming multiple outputs of the same output number is not recommended. However,
if doing so, it is good practice to separate the outputs with the JMP/JEND set of
instructions, or the MCS/MCR set of instructions. These instructions are detailed later in
this chapter.
When the same output number is programmed more than once within one scan, the
output nearest to the END instruction is given priority for outputting. In the example on the
right, output Q0 is off.

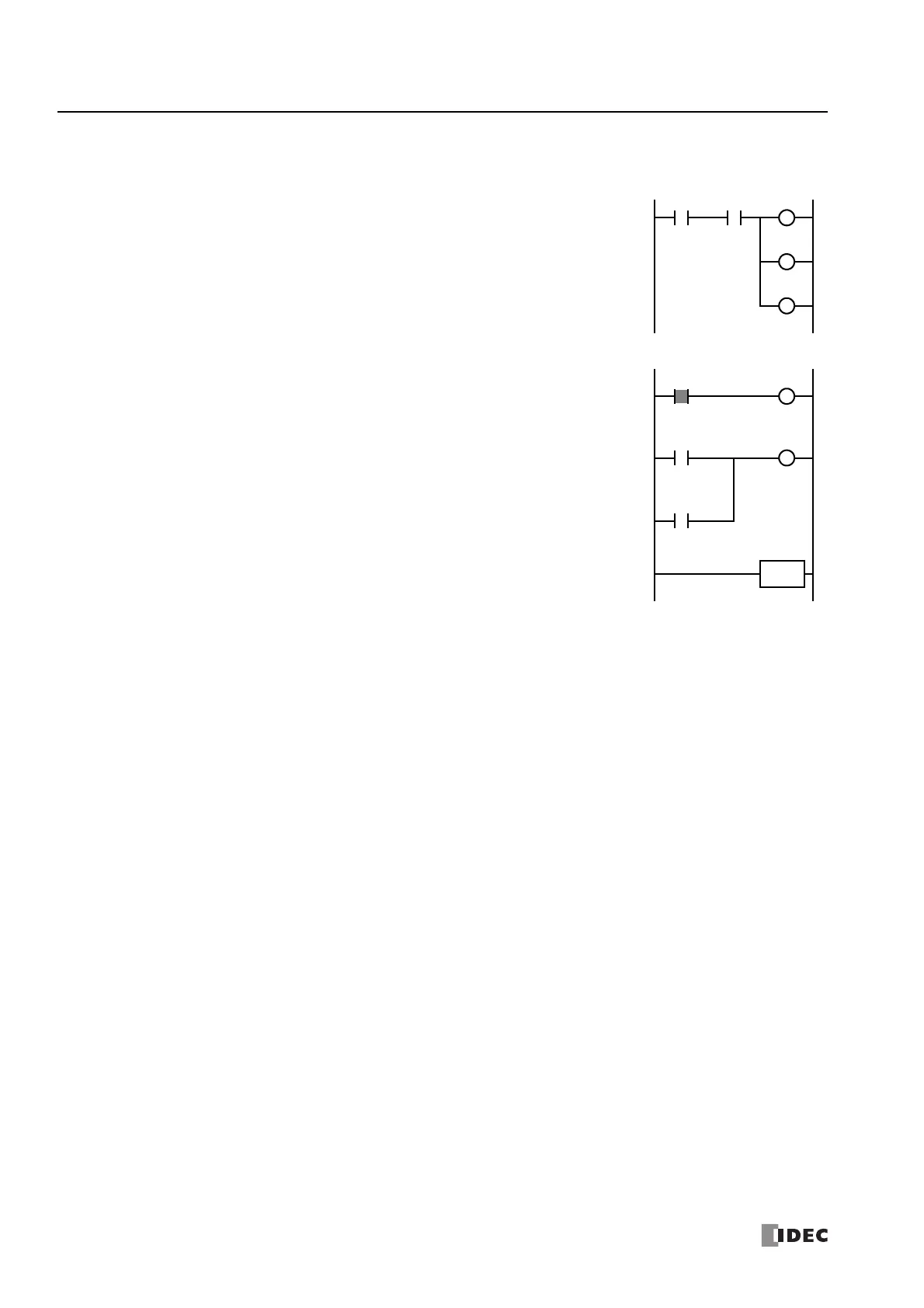

Ladder Diagram
I1 I2 Q0
Q1
Q2
Ladder Diagram
I1
I2
I3
END
ON
OFF
OFF
Q0
Q0
OFF
