IGS BAOHUI HYPER CROSS - Appendix 3

114

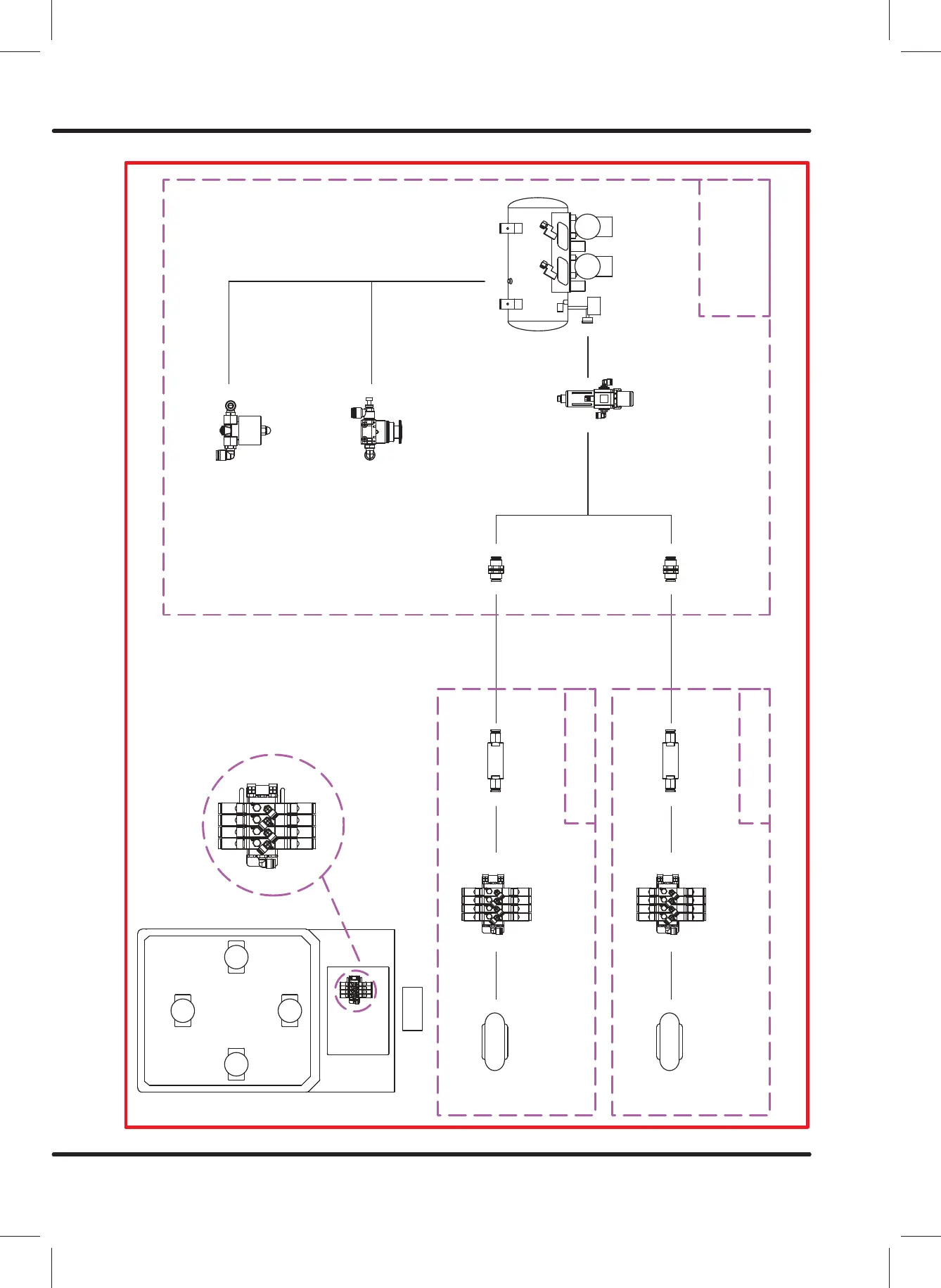

Appendix 3Ȉ$LUÀRZGLDJUDPRIWKHFDELQHW
pressure regulator valve
(AIRTAC_GFR40015F1)
pipeline
divide into
two
pipeline
divide into
two
push lock fitting
(AIRTAC_PM10)
1P screen box
check valves
(SNS_LCV-08)
AIR_SPRING
(GUOMAT-1B4060)
fluid solenoid valve(drain)
(AIRTAC_2L050-15)
air
intake
drain
coin box
1P vehicle platform 2P vehicle platform
check valves
(SNS_LCV-08)
AIR_SPRING
(GUOMAT-1B4060)
screen
1
2
3
4
1 2 3 4
solenoid valve/AIR_SPRING diagram
2P screen box
push lock fitting
(AIRTAC_PM10)
manual
valve(drain)
(CM3PMO6R)
solenoid valve model solenoid valve model
specification: solenoid valve:AIRTAC_4V230C-08(DC12V) base:AIRTAC_200M4F
