IGS BAOHUI HYPER CROSS - Maintenance Instructions for Platform Height Sensor

101
Maintenance and Repair
Replacing Parts

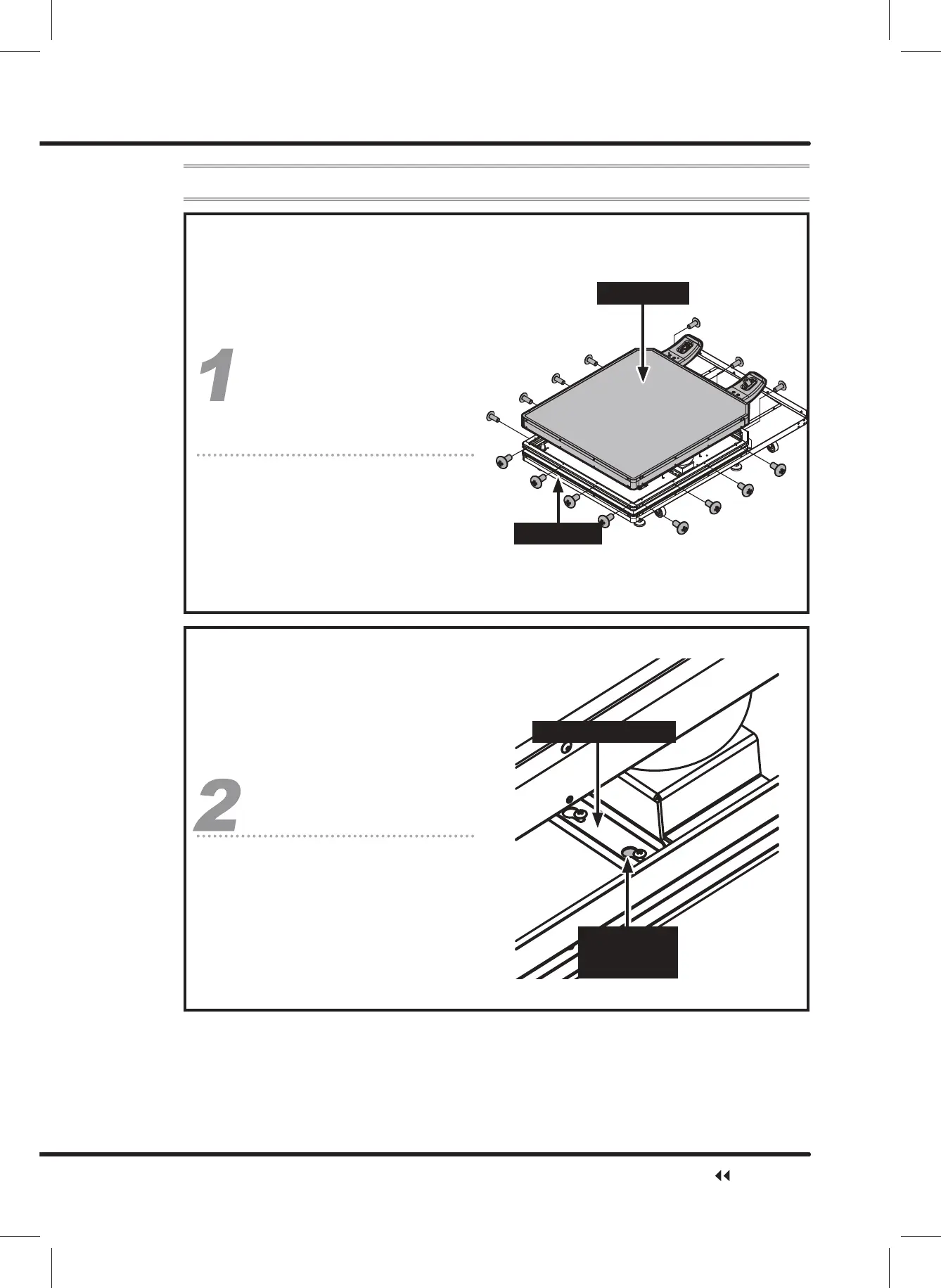

5.3.22 Maintenance instructions for platform height sensor
*RWRWKHDGMXVWLQJSDJHWRWRS
up the four air springs to the
top, remove the fixing screws
from the dust cover according to
the diagram, and lower the air
springs to the button.
Plateform
Dust cover
After loosening the height
sensor, take out the bracket by
WHDUGURSVKDSHGORQJKROH
6HQVRU¿[LQJEUDFNHW
7HDUGURS
shaped long
hole
