Machine Installation

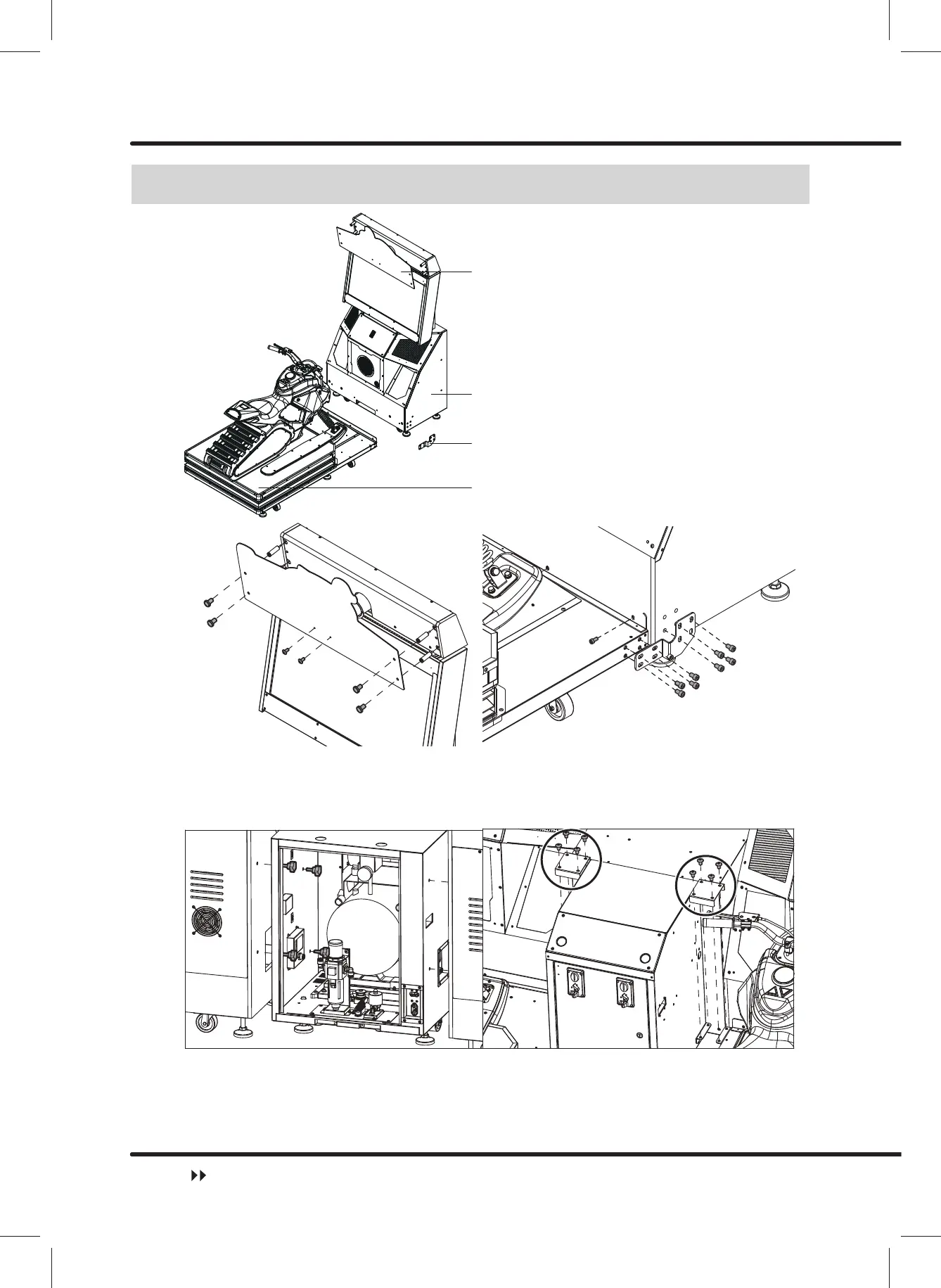

2.2 Disassembly and Reassembly Diagram for Transport
a
c
b
d
1. According to the diagram, assemble
the vehicle body and the screen box.
(1P and 2P cabinet can be assembled
in the same way.)
a. decorative acrylic
b. screen box
F¿[LQJKDUGZDUH
d. vehicle body
About the decorative acrylic:
Install the decorative acrylic on the
cabinet according to the diagram.
$ERXWWKH¿[LQJKDUGZDUH
When the vehicle body and the screen
box are assembled, secure the screws
according to the diagram.
2. Move the 1P and 2P cabinets up
against the central connector stand,
and then secure with screws from the
inner side. (both sides can be secured
with the same method)
3. Connect the 2 vehicle bodies to the
coin box, and secure with the fixing
hardware.
