21
Machine Installation

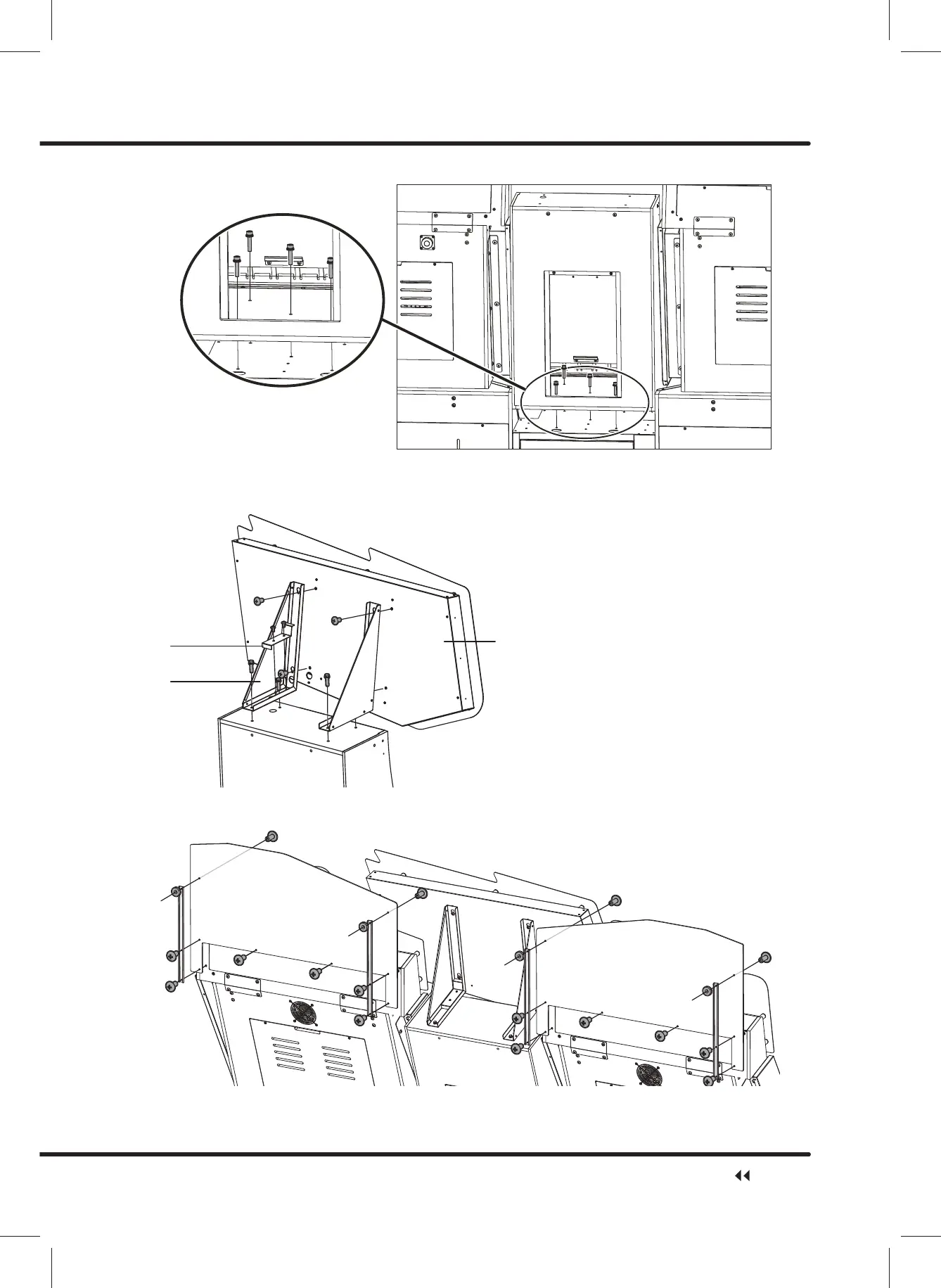

4. Install the springboard to central connector bracket according to the diagram.
a
c
b
5. Install the machine name light box
to the springboard according to the
diagram.
a. light box bracket
b. light box
c. wire cover
6HFXUHWKH39&ERDUGDQGWKH¿[LQJEUDFNHWRQWKHFDELQHW
Disassembly and Reassembly Diagram for Transport
