13

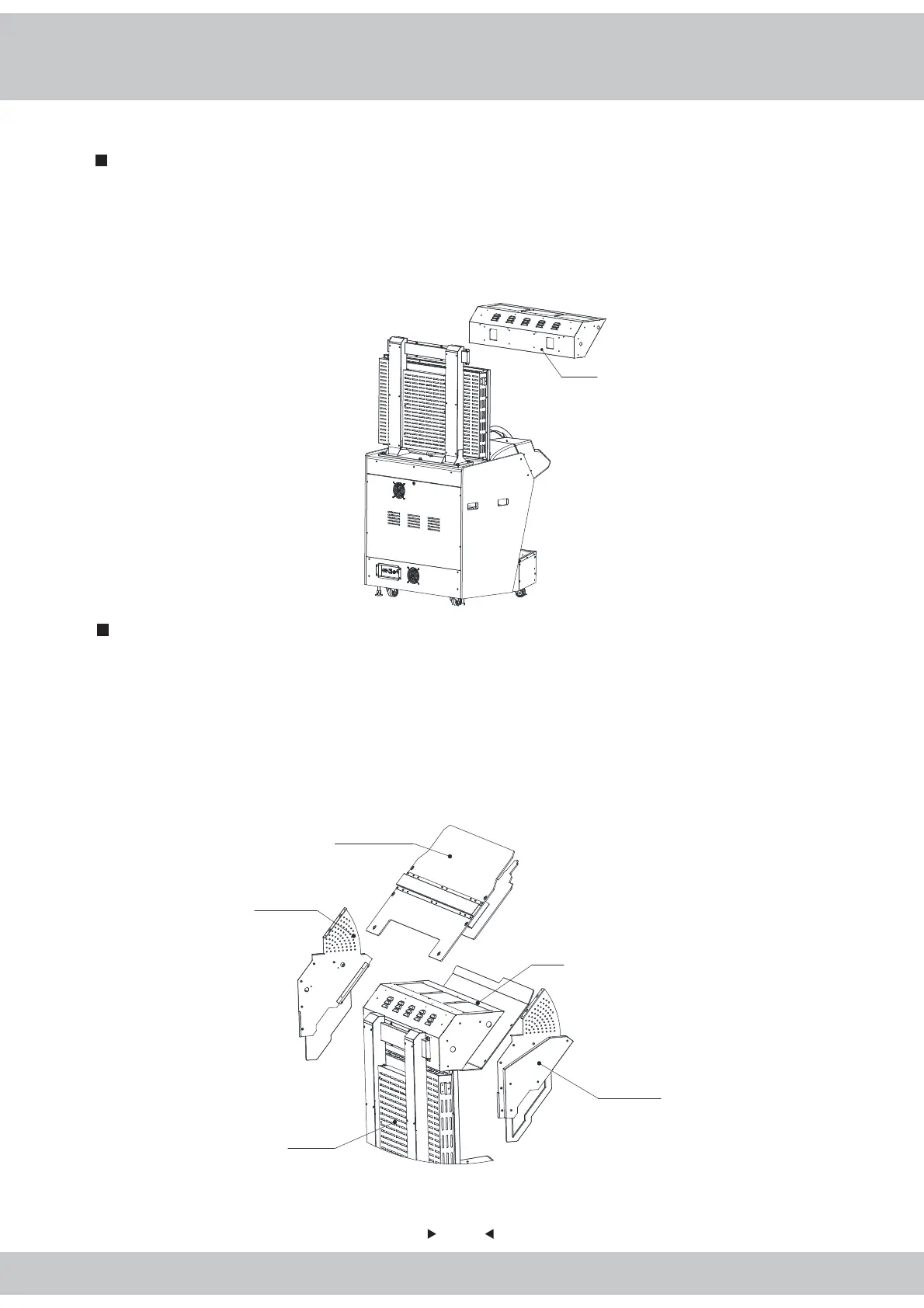

Step 3
Step 4
Light-box framework
1. First of all, hang the light-box framework onto the supporting frame and connect the wires on the
light-box framework properly, then use 8 cross-head round screws M5 * 16 (black-plated) to fix
the light-box framework to the display supporting frame.
2. Reinstalled the display deck-plate, display service-panel and back service door to its places.
Light box
Display
Left side of the light box
Right side of the light box
Card board components
1.When both sides of light box are installed, plug in the connectors at the left and right sides of light
box and put the connectors into the light box , and then use M5 * 12 (chrome-plated) to fix the
both sides to the light box.
2.After the left and right sides of the light box are fixed properly, put the card-board components
onto the host-machine and align the screw-holes, and then use M5 * 12 (chrome-plated)
hexagonal-socket flat head screws and flat gasketsφ6*φ20*2.0 to tighten.
To Next Page
