IGS WAHLAP TECH OverTake - Final host-machine assembly

55
55

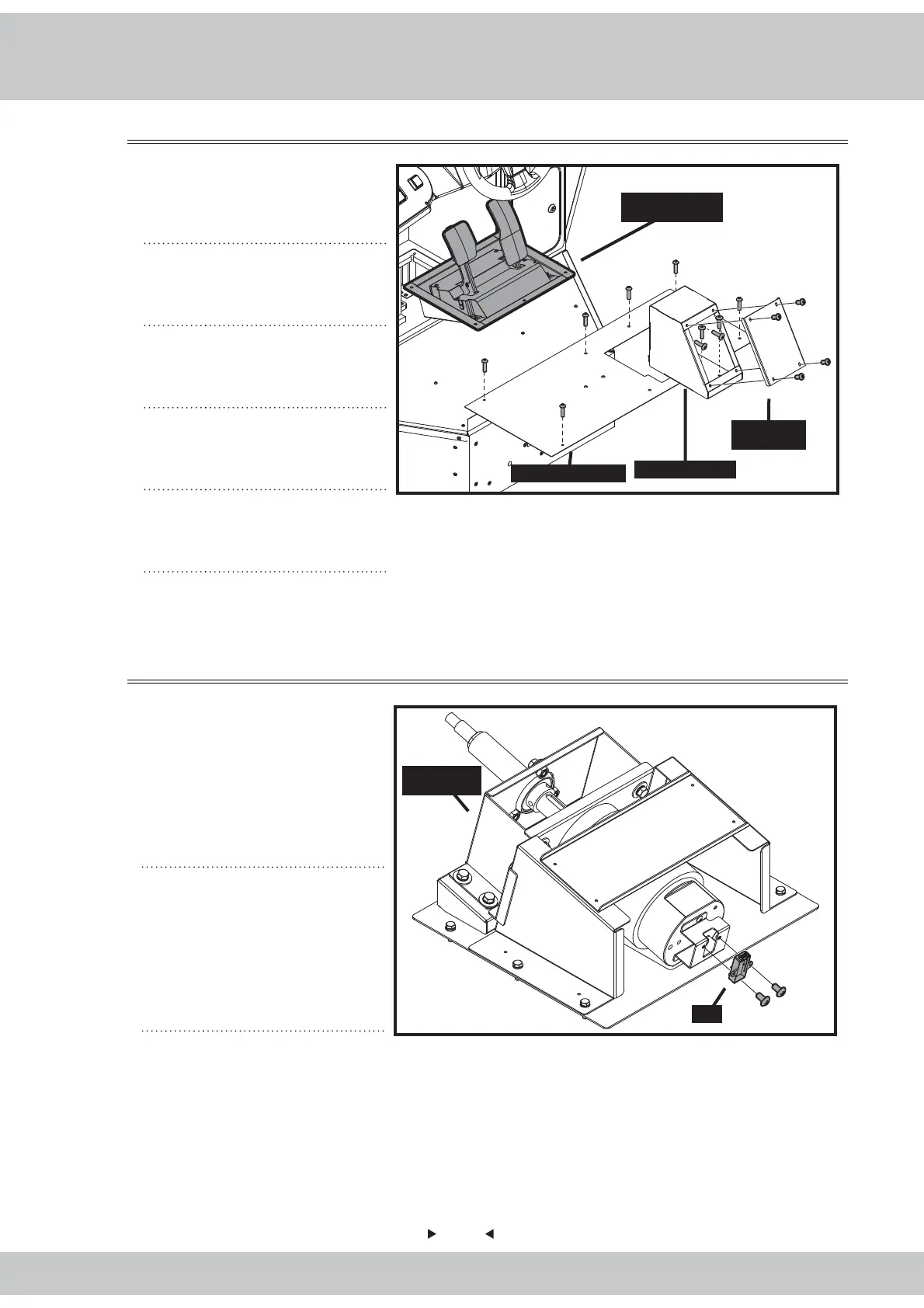

5.2.13 Replacing the pedals of the throttle and brake
5.2.14 Replacing the VR of the steering wheel
1
Remove 4 M4 inner hex
screws and the left foot
rest pedal cap.
Pedals of the
throttle and brake
Left foot rest
pedal cap
Left foot rest pedal
The decorative pedal
2
Remove 4 M4 cruciform
screws and take off the
left foot rest pedal.
3
Remove 8 M4 inner
hex screws and the
decorative pedal.
4
Take off the pedal of the
throttle and the brake.
5
When done, reassemble
according to the reversed
assembly sequence.
1
Remove 2 cruciform
screws behind the
cabinet to take off VR.
Steering
wheel motor
VR
2
When done, reassemble
according to the reversed
assembly sequence.
