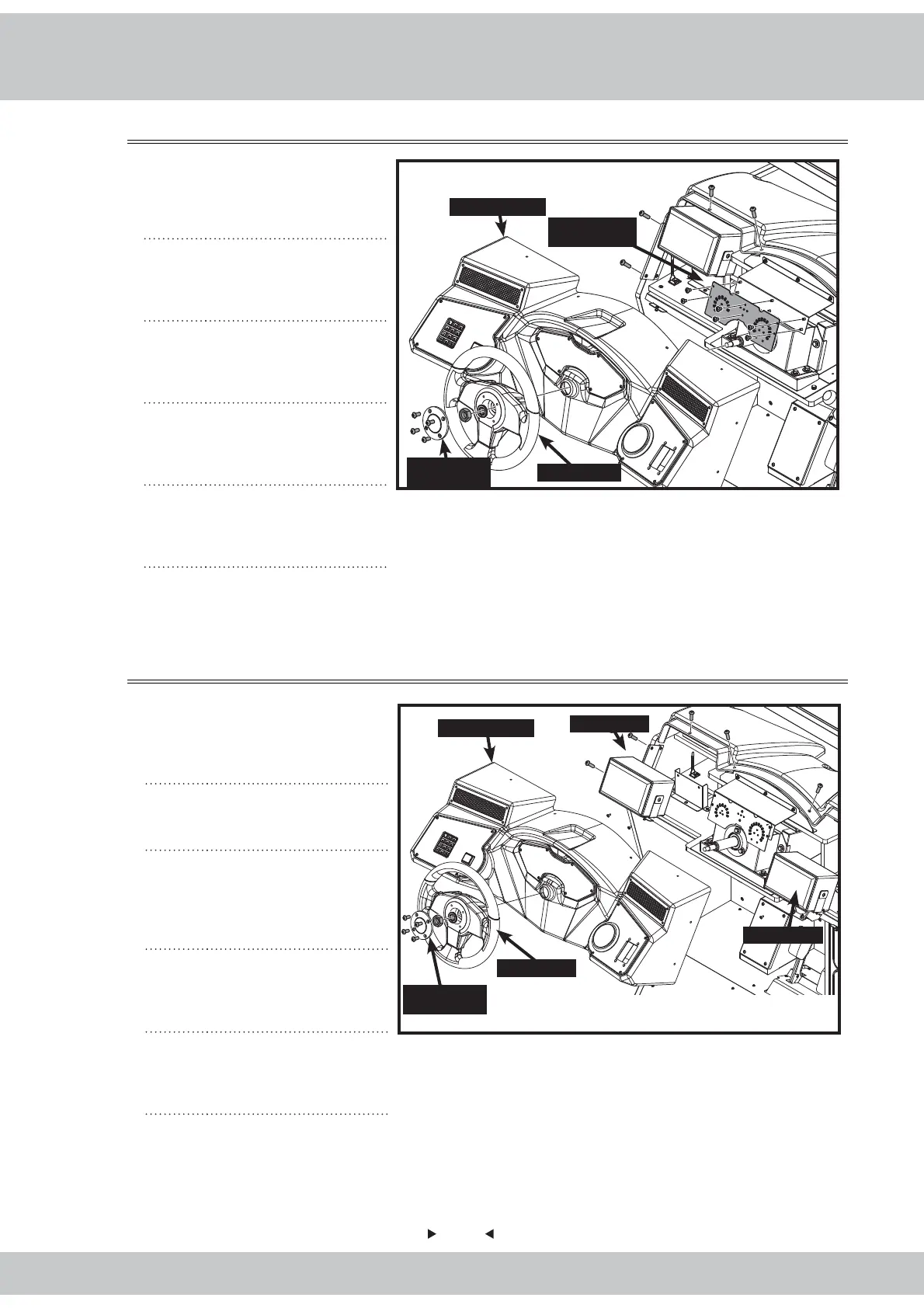

5.2.11 Replacing the dashboard LED light plate
5.2.12 Replacing front speaker
1
Remove 4 M3 inner hex
screws and take off the
cap in the center of the
steering wheel.
Steering wheel
center cap
Steering wheel
Dashboard cover
Dashboard LED
light plate
2
Remove M12 screws
and take off the steering
wheel.
3
Remove 10 M4 inner hex
screws and the cover of
the steering wheel.
4
Remove 6 M3 cruciform
screws and replace the
LED plate.
5
When done, reassemble
according to the reversed
assembly sequence.
1
Remove 4 M3 inner hex
screws and take off the
cap in the center of the
steering wheel.
Steering wheel
center cap
Steering whee
Dashboard cover
Front speaker
Front speaker
2
Remove M12 screws and
take off steering wheel.
3
Remove 10 M4 inner hex
screws and take off the
cap on the controlling
panel.
4
Remove 4 M4 cruciform
screws and replace the
two loudspeakers.
5
When done, reassemble
according to the reversed
assembly sequence.
