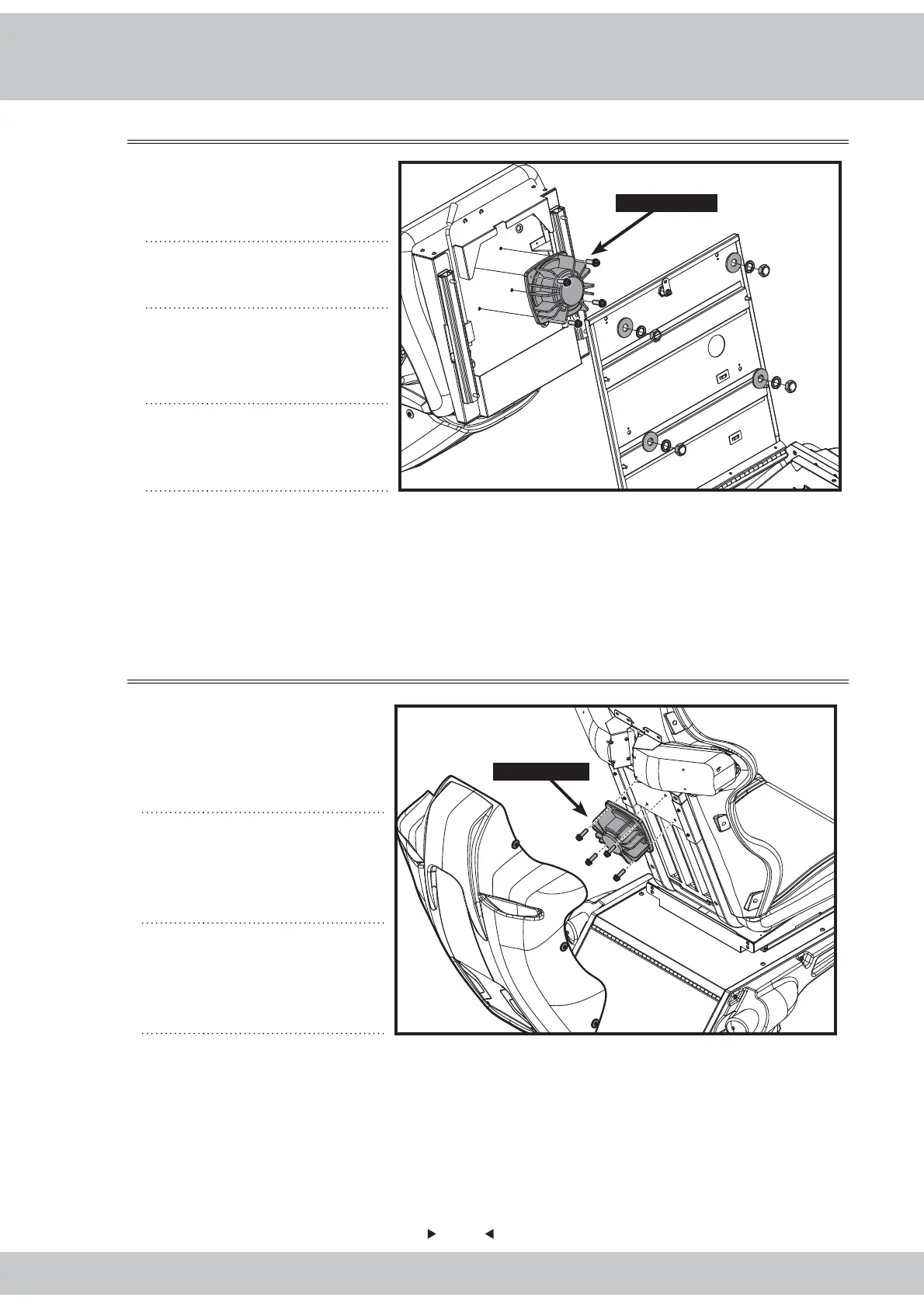

5.2.7 Replacing the vibration speaker under the seat
5.2.8 Replacing the vibration speaker behind the seat
1
Remove 4 M6 inner hex
screws and lift up the
chair.
Vibration speaker
2
Remove 4 M8 screws.
3
Remove 4 M4 cruciform
screws and replace the
vibration loudspeakers.
4
When done, reassemble
according to the reversed
assembly sequence.
1
Remove 6 plastic screws
and take off the cover.
Vibration speaker
2
Remove 4 cruciform
screws and replace the
vibration loudspeakers.
3
When done, reassemble
according to the reversed
assembly sequence.
