18 Image Vault
®
PRO Command

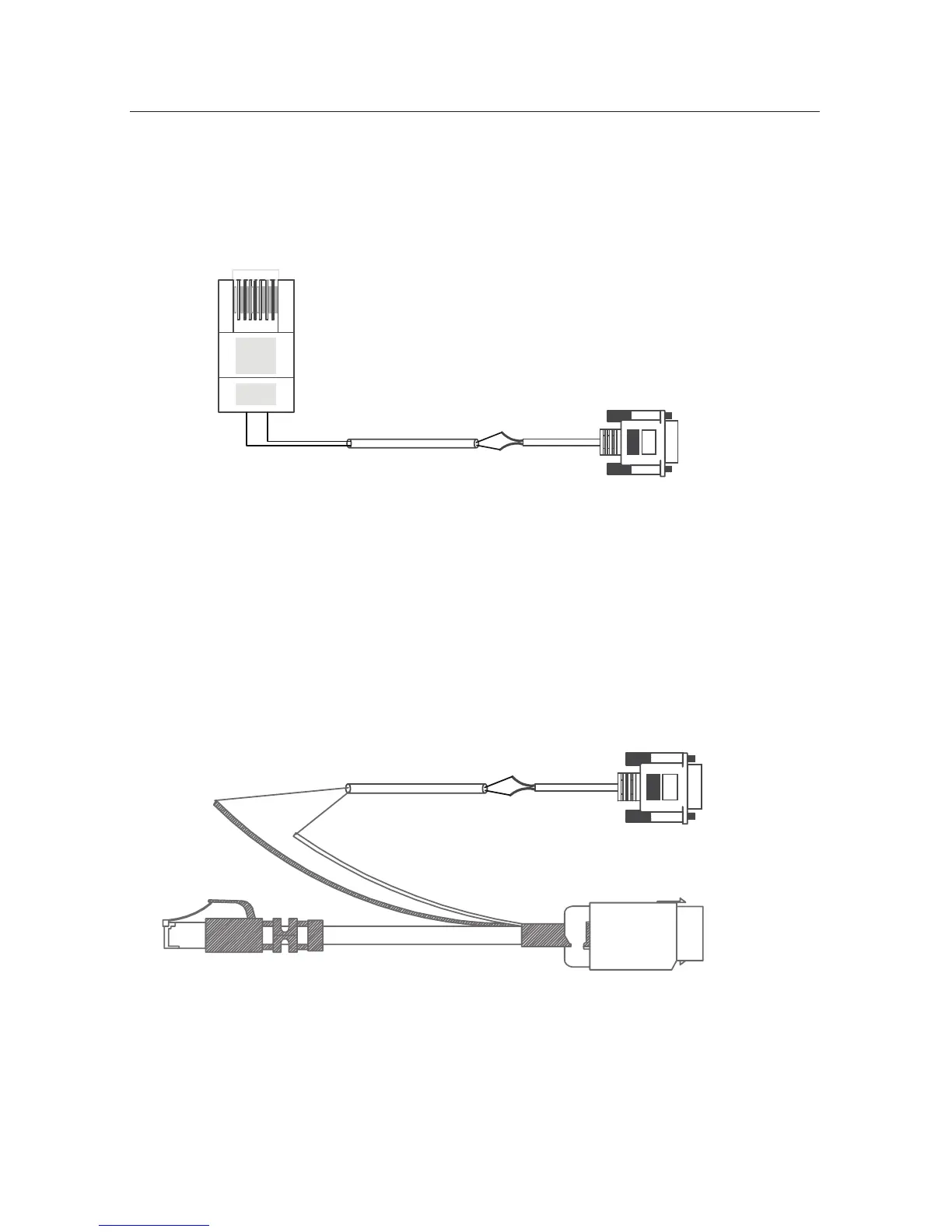

IV-G POS Wiring to Gilbarco
This diagram illustrates the proper wiring of the IV-G pigtail kit used to capture
data from Gilbarco register systems.
IV-R POS Wiring to Ruby Verifone
This diagram illustrates the proper wiring of the IV-R pigtail kit used to capture
data from Ruby Verifone register systems using RJ45-style printer cables.
Plug into the “JNL PNTR”
Port on the G-Site Register
DB9F
DVR Connector
DVR PIGTAILHOME RUN WIREIV-G POS PIGTAIL
18 AWG Twisted Pair
Orange
(Pin 2)
Black (Pin 3)
Black (Pin 5)
Red (Pin 2)
To DVR POS
PORT 1 or 2
DB9F
DVR Connector
DVR PIGTAILHOME RUN WIRE
IV-R POS PIGTAIL
18 AWG Twisted Pair
Black (Pin 5)
Black (Pin 6)
Male Side to
Printer or Terminal
Female Side to
Existing Printer Cable
Red (Pin 2)
Red (Pin 1)
To DVR POS
PORT 1 or 2
