4.3 Cashbox Mounting
Below you will find details on how to fit the different cashboxes mentioned in section
2.6.
Slide cashboxes are made up of 2 x parts. The outer housing and the cashbox itself,
which slides in and out of the housing. These are used for when the unit is mounted
horizontally.
Clip on cashboxes attach directly onto the validator. These are mainly used for when
the unit is mounted vertically.
4.3.1 Cashbox Fitting

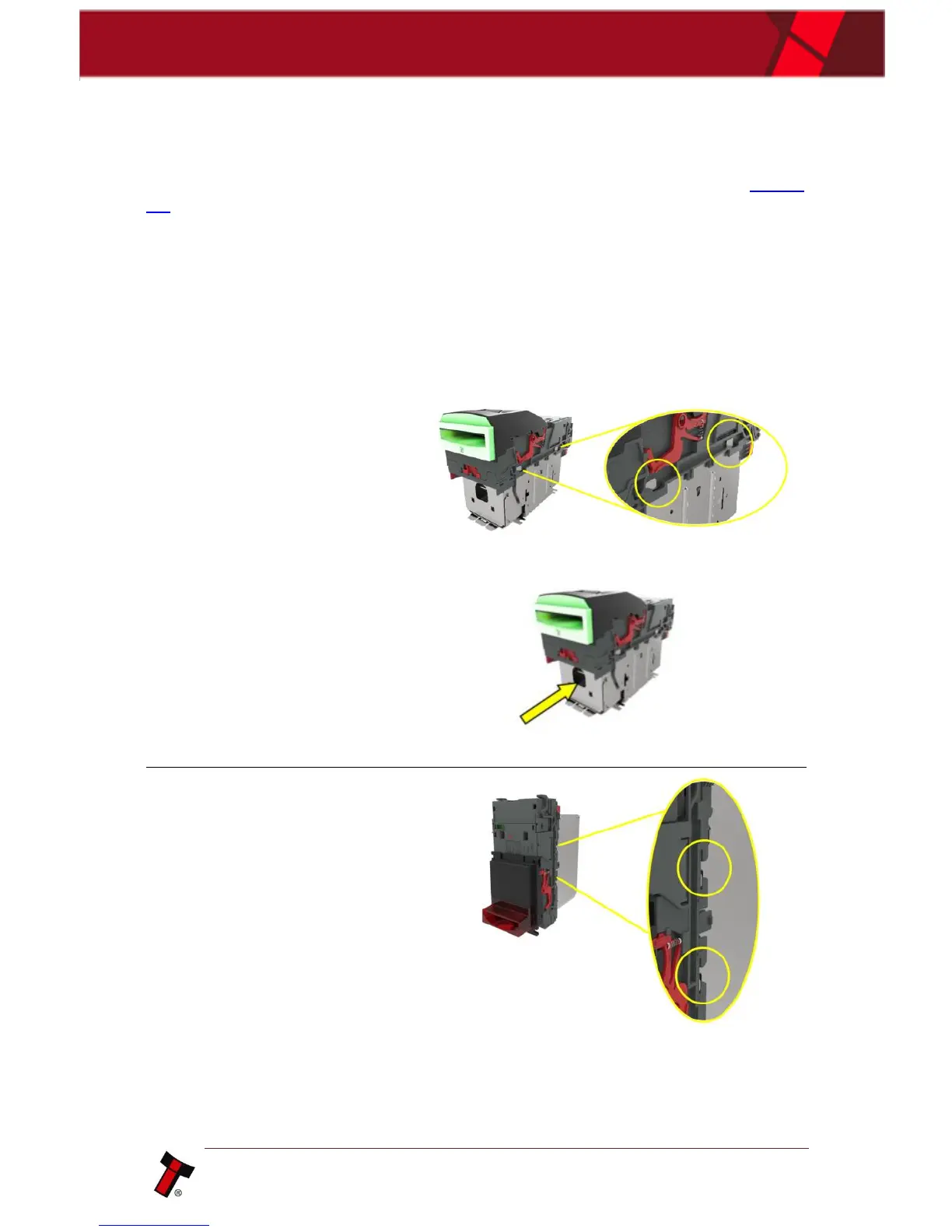

1. Slide Cashbox
The outer housing has 2 x
lugs on either side and
these need to be pushed
up into the cashbox slots
as per the image.
Then slide housing
forwards to lock into place.
The outer housing is
mounted inside the
machine and you simply
slide the removable
cashbox, inside the outer
housing.
2. Clip-on Cashbox
The clip-on cashbox
attaches directly to the
validator and is identical to
the process above.
