6.4 CC4
6.4.1 General Description
The CC4 protocol is an extension of ccTalk with additional status and payout
commands to support the note float recycler unit and thus should be used if wanting
to use the NV11 in ccTalk. Please contact support for the necessary protocol
documentation.

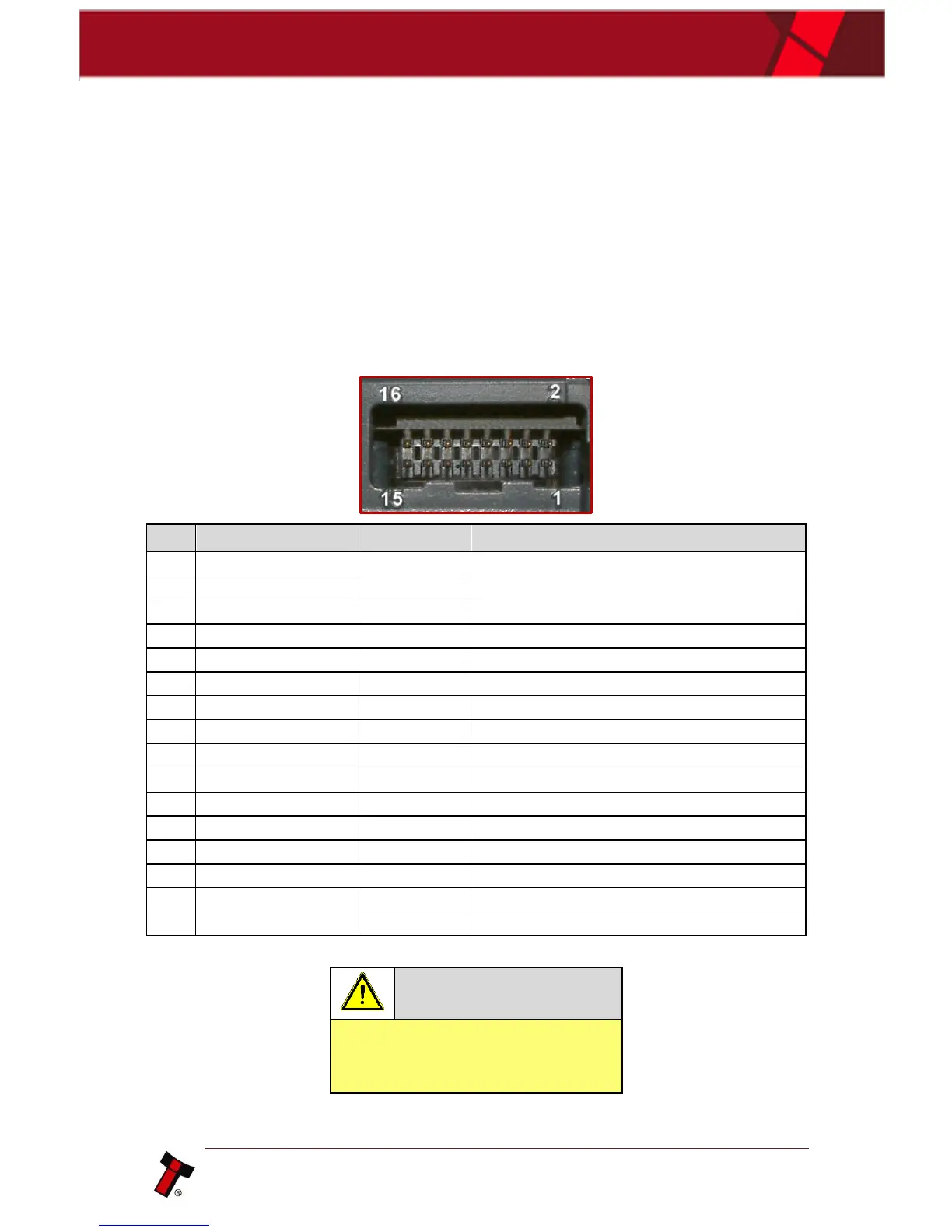

6.4.2 Pinout
Pin
Name
Type
Description
1
Vend 1
Output
Serial Data (link to Pin 5)
2
Vend 2
Output
DA3 Data Logging
3
Vend 3
Output
Not Used
4
Vend 4
Output
Not Used
5
Inhibit 1
Input
Serial Data (link to Pin 1)
6
Inhibit 2
Input
Not Used
7
Inhibit 3
Input
Not Used
8
Inhibit 4
Input
Not Used
9
Busy
Output
Not Used
10
Escrow
Input
Not Used
11
USB +
Data
USB Data +
12
USB -
Data
USB Data -
13
USB Vcc
Power
USB Vcc (+5VDC)
14
Factory Use Only
Do not connect
15
+ Vin
Power
+12/24VDC Supply
16
0V
Power
0V Supply (GND)
Caution!
+12VDC and 0V (GND) must
always be connected, also when
using USB connections.
