11.7 Escrow Control
The NV9USB+ has a single note escrow facility. This allows the validator to hold
onto the note once validated, and then only stack the note into a cashbox when the
host machine confirms that the Vend operation has been completed. If no
confirmation of the Vend is received, then the note will be returned to the user after
30 seconds. If the host machine itself aborts the transaction by setting the
corresponding inhibit input high, the note is returned immediately. The sequence of
operation is as follows:

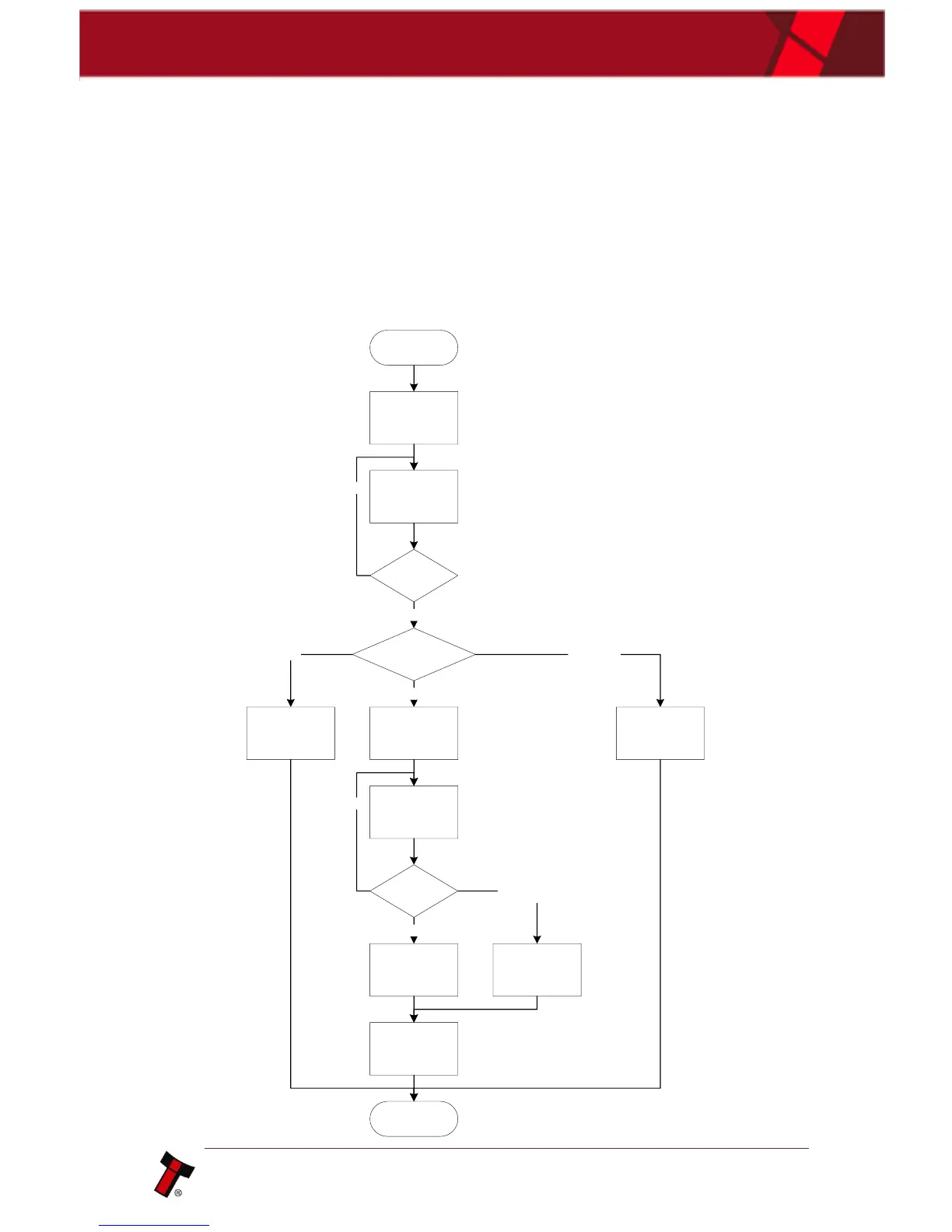

Start
Pin 10 Held Low
Pulse Received?
Check Credit Line/s
No
Want to Accept Note?No
No Response
in 30s
Yes
Hold Pin 10 High Note Rejects
Pulse Received?
Check Credit Line/s
No
Credit
End
Hold Pin 10 Low
Channel Inhibit High
Yes
Yes
No Response
in 30s
Note Forcibly
Removed By
Customer
