4.5 Machine Mounting
4.5.1 Machine Mounting

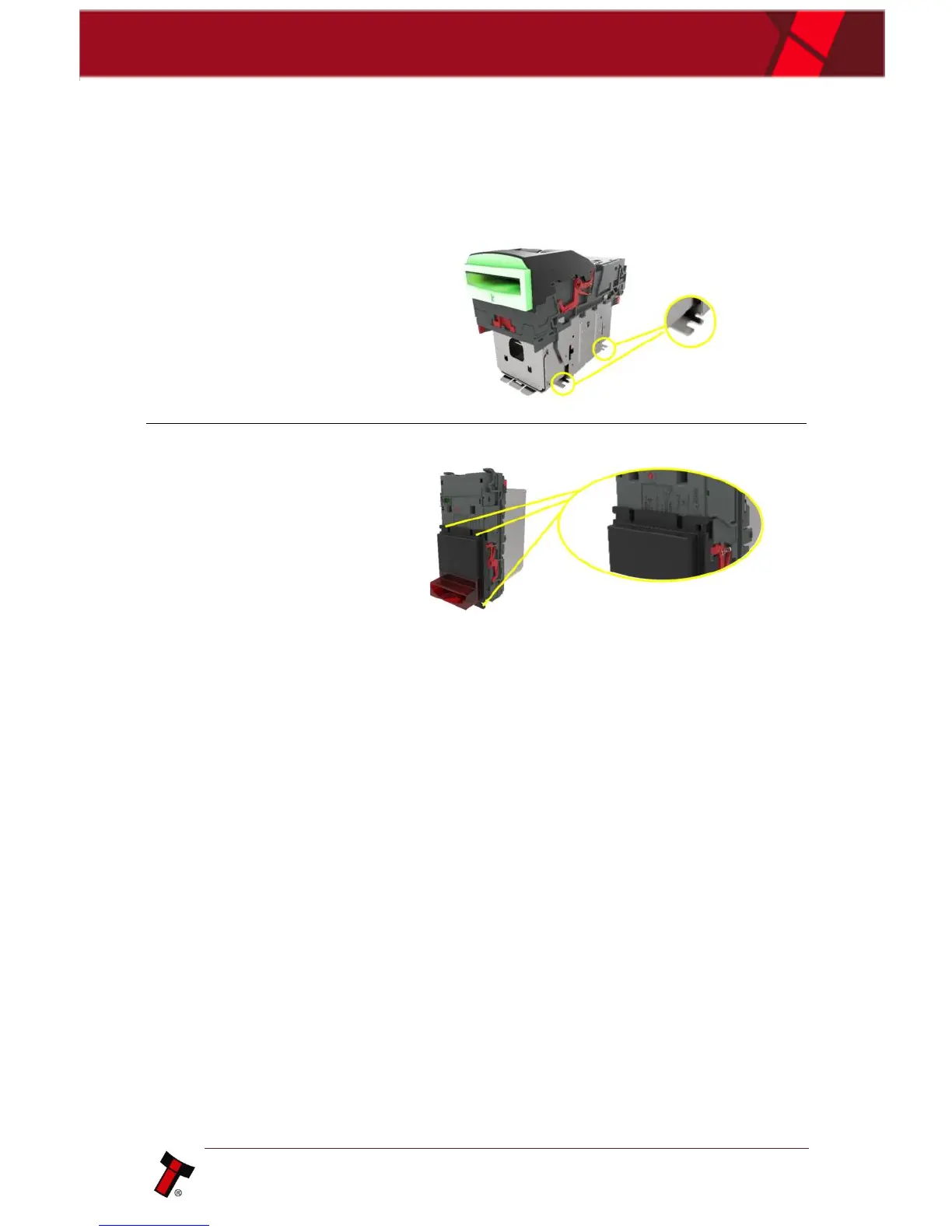

1. Horizontal
Configuration
The slide cashbox
configuration has 4 x
mounting points, for
each corner.
These should be used
to secure the validator
to a base/shelf inside
the host machine.
2. Vertical
Configuration
The vertical bezels
available to the NV9
range all have
mounting locations to
allow you to mount the
unit to the back of the
door.
4.5.2 Earth Bonding
It is very important that the NV9USB+ is properly bonded to earth. Lack of proper
bonding can cause communication issues and other failures.
