6.3 ccTalk
®
6.3.1 General Description
ccTalk
®
is a serial communications protocol designed by Money Controls to allow 3-
wire interfacing between a host and cash handling peripherals. Please contact
support@innovative-technology.com for further information.

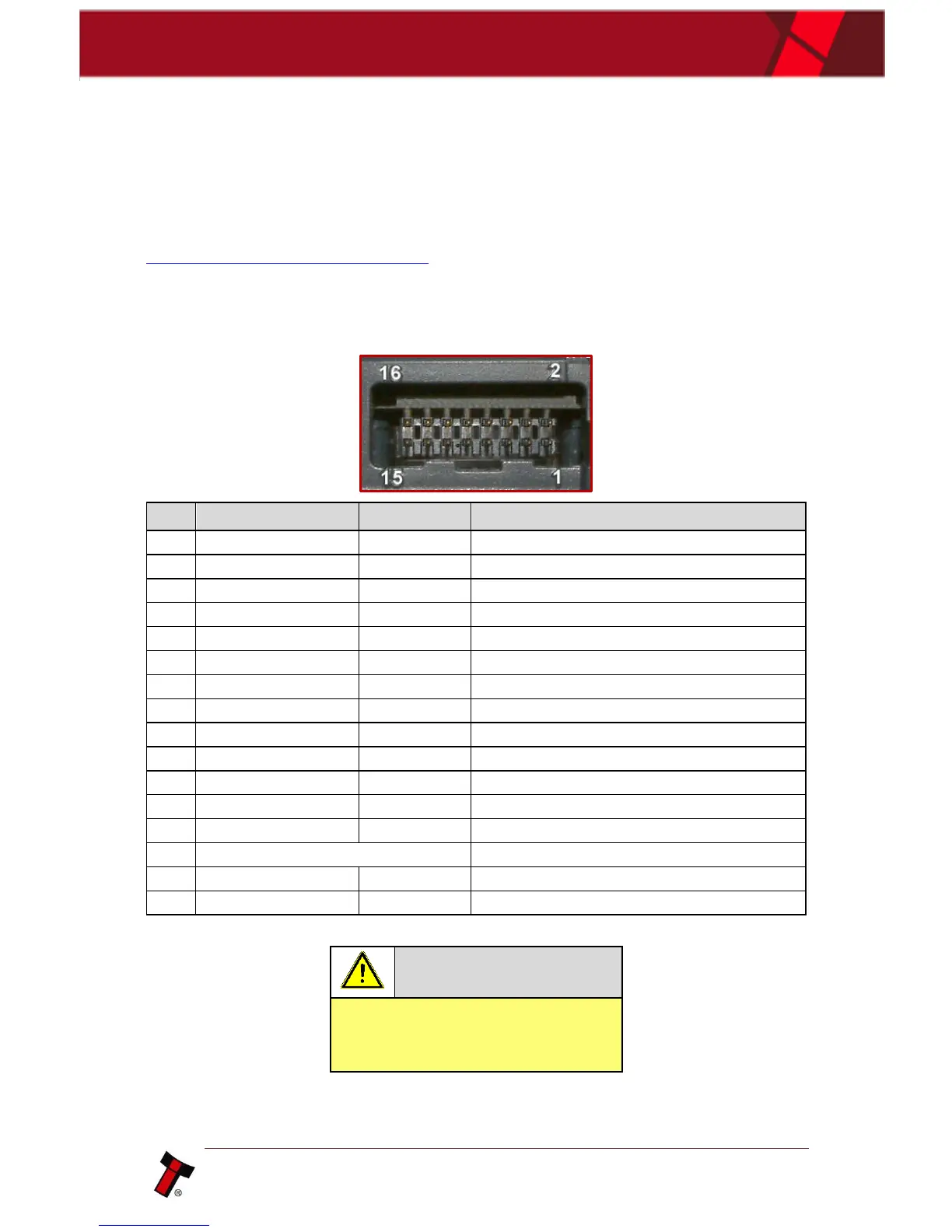

6.3.2 Pin Assignments
Pin
Name
Type
Description
1
Vend 1
Output
Serial Data (link to Pin 5)
2
Vend 2
Output
DA3 Data Logging
3
Vend 3
Output
Not Used
4
Vend 4
Output
Not Used
5
Inhibit 1
Input
Serial Data (link to Pin 1)
6
Inhibit 2
Input
Not Used
7
Inhibit 3
Input
Not Used
8
Inhibit 4
Input
Not Used
9
Busy
Output
Not Used
10
Escrow
Input
Not Used
11
USB +
Data
USB Data +
12
USB -
Data
USB Data -
13
USB Vcc
Power
USB Vcc (+5VDC)
14
Factory Use Only
Do not connect
15
+ Vin
Power
+12/24VDC Supply
16
0V
Power
0V Supply (GND)
Caution!
+12VDC and 0V (GND) must
always be connected, also when
using USB connections.
