6.9 Pulse
6.9.1 General Description
Pulse can be used for the acceptance of up to 16 channels. When a note is
recognised vend 1 (pin 1) will pulse a pre-set number of times. The amount of
pulses as well as the high/low pulse ratio is configurable. For programming and
configuration please refer to Section 4 of this User Manual.
Caution!
Pulse is an unsecure interface and
should not be used for new
developments!

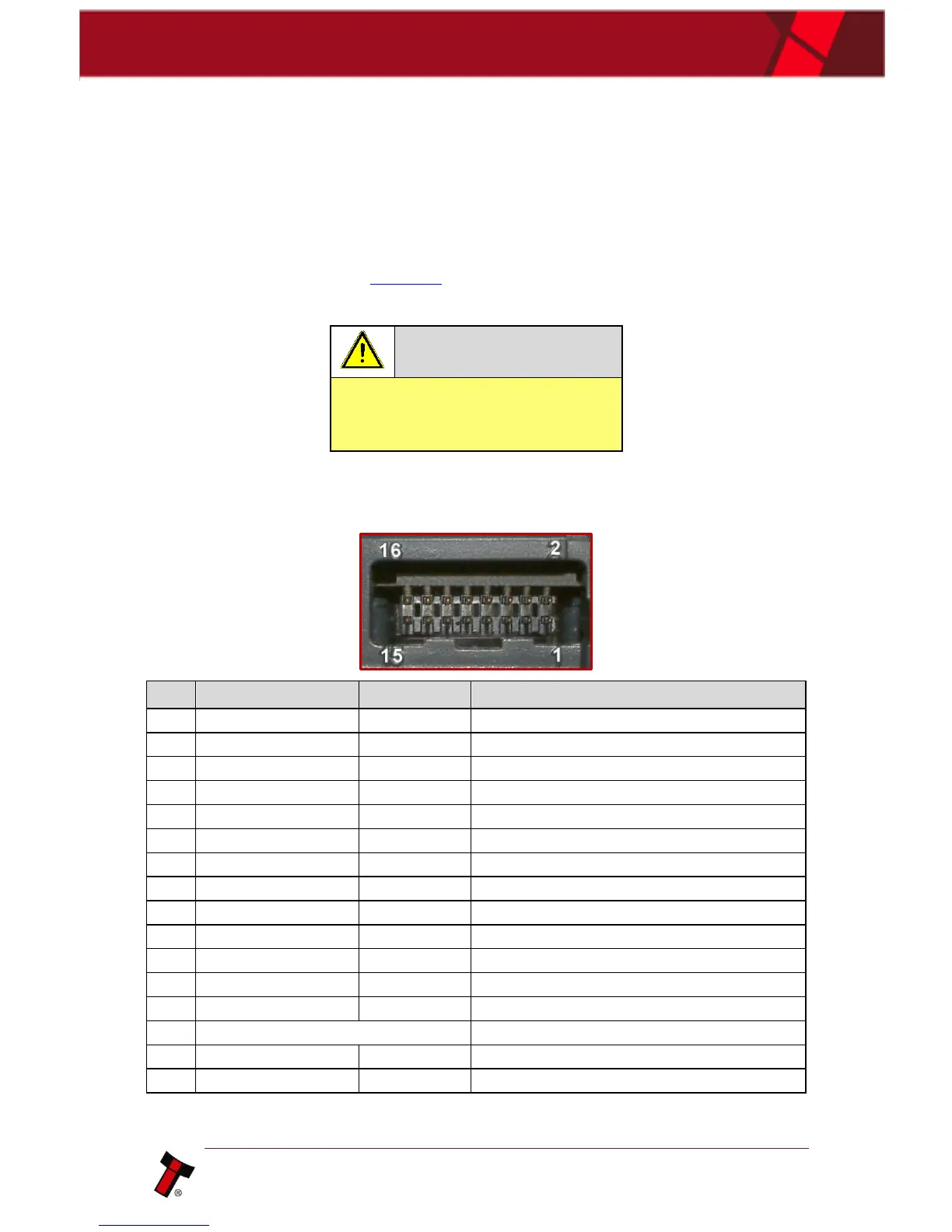

6.9.2 Pinout
Pin
Name
Type
Description
1
Vend 1
Output
Credit Output Pulse Stream
2
Vend 2
Output
Not Used
3
Vend 3
Output
Not Used
4
Vend 4
Output
Not Used
5
Inhibit 1
Input
Inhibit Input Channel 1
6
Inhibit 2
Input
Inhibit Input Channel 2
7
Inhibit 3
Input
Inhibit Input Channel 3
8
Inhibit 4
Input
Inhibit Input Channel 4
9
Busy
Output
Output Busy Signal
10
Escrow
Input
Input Escrow Control
11
USB +
Data
Not Used
12
USB -
Data
Not Used
13
USB Vcc
Power
Not Used
14
Factory Use Only
Do not connect
15
+ Vin
Power
+12VDC Supply
16
0V
Power
0V Supply (GND)
