Wiring
‑99‑

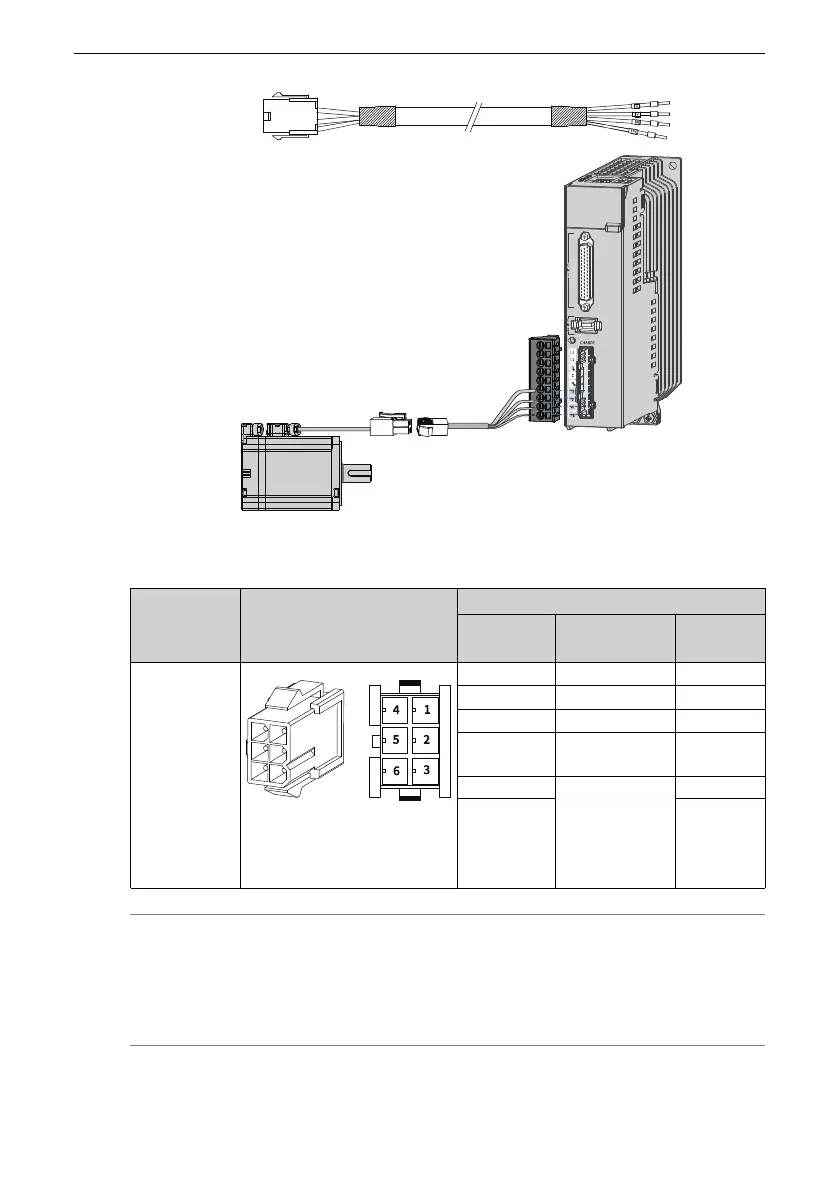

Figure 3‑28 Wiring between the servo drive and lead wire‑type motor
Table 3–22 Description of the power cable connector (motor side)
Applicable
Motor Flange
Size
[1]
Outline Drawing of the
Connector
Terminal Pin Layout
Pin No.
Signal Name
Color
Lead wire‑
type motor
40 (Z‑S series)
60 (Z‑S series)
80 (Z‑S series)
Black 6‑pin connector
Recommendation: Plastic
housing: MOLEX‑50361736
Terminal: MOLEX‑39000061
1
U
White
2
V
Black
3
W
Red
4
PE
Yellow/
Green
5
Brake (polarity
insensitive)
Brown
6
Blue
Note
● [1] The flange size refers to the width of the mounting flange.
● Power cable colors are subject to the actual product. All cable colors mentioned in
this guide refer to Inovance cable colors.
● The following table describes the connector for high‑power motor power cables.
