Inovance SV660P Series User Manual

Wiring
‑75‑
No. Name
Description
4
U, V, W
(terminals for
connecting the
servo motor)
Connected to U, V, and W phases of the servo motor.
5
Motor grounding
terminal
Connected to the grounding terminal of the motor for
grounding purpose.
Servo drives in size C and size D (rated power: 1.0 kW to 3.0 kW): SV660PT3R5I,
SV660PT5R4I, SV660PT8R4I, and SV660PT012I

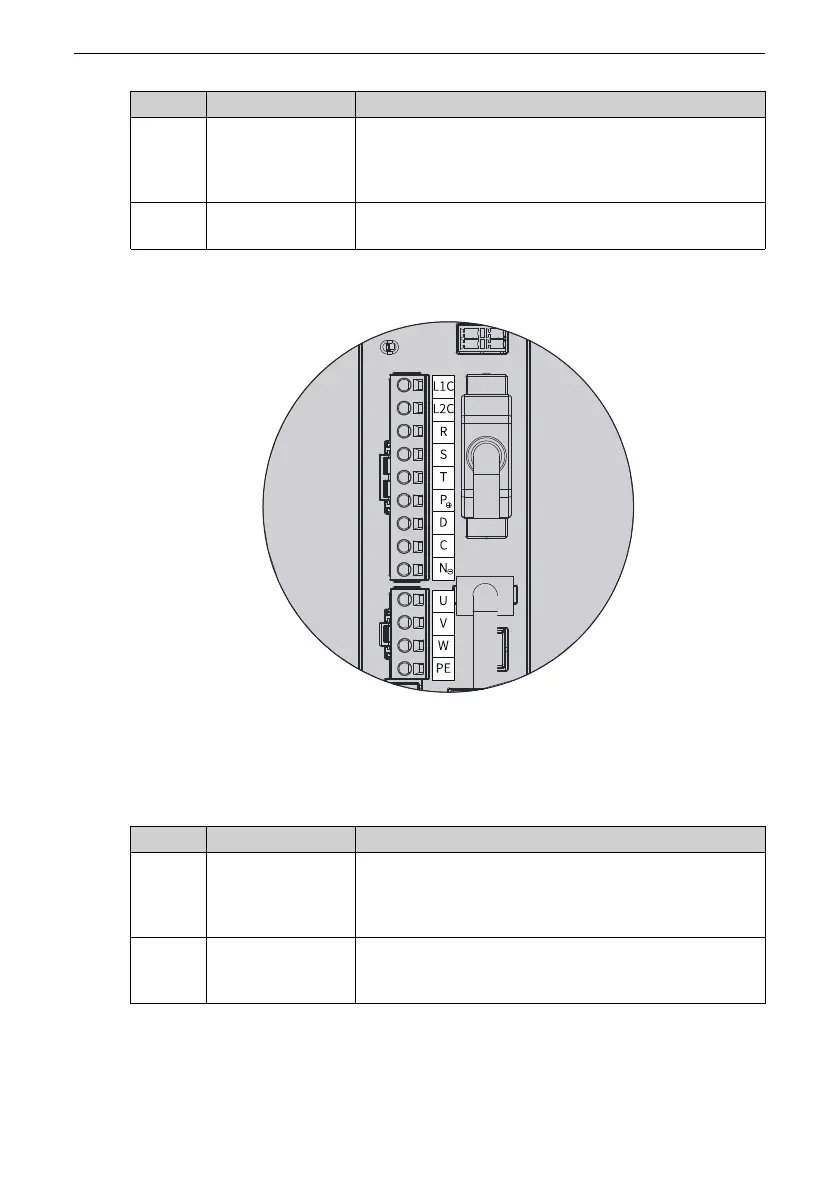

Figure 3‑14 Main circuit terminal pin layout of servo drives in size C (SV660PT3R5I,
SV660PT5R4I) and size D (SV660PT8R4I, SV660PT012I)
Table 3–4 Description of main circuit terminal pins of servo drives in size C (SV660PT3R5I,
SV660PT5R4I) and size D (SV660PT8R4I, SV660PT012I)
No. Name
Description
1
L1C, L2C
(control circuit
power input
terminals)
See the nameplate for the rated voltage class.
2
R, S, T
(main circuit power
input terminals)
See the nameplate for the rated voltage class.
