Integra DRX-8.4 User Manual

7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
7.1.4ch
5.1ch
58
Speaker Connections

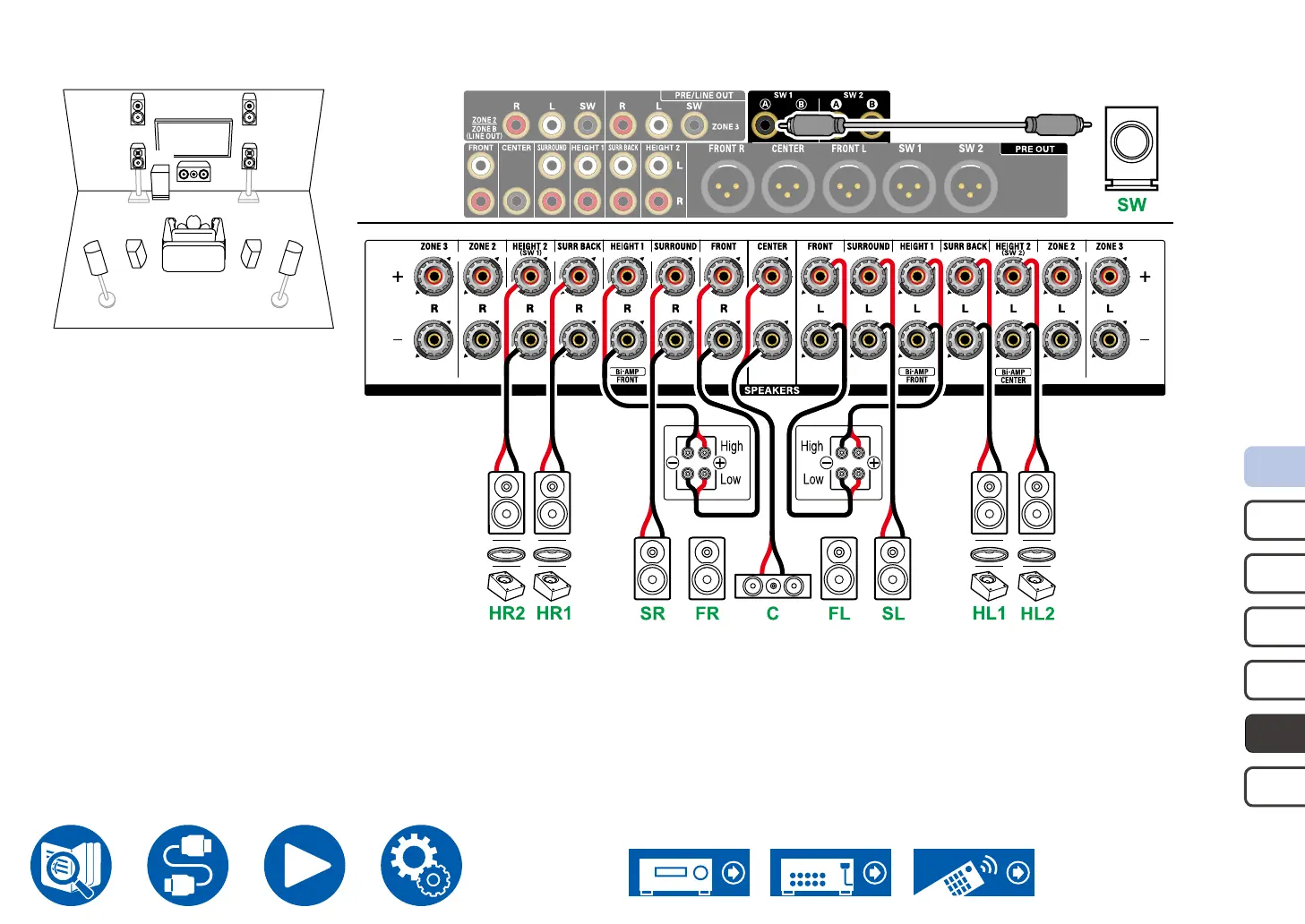

 5.1.4 Channel System (Bi-Amping the Speakers)
SL SR
FL FR
C
SW
HL1 HR1
HR2HL2
Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of
your speakers as well.
*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers(Front)).
*2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers(Surround)).
*1 *1*2 *2
