Integra DRX-8.4 - Page 59

5.1.4ch
7.1.2ch
7.1ch
5.1.2ch
7.1.4ch
5.1ch
59

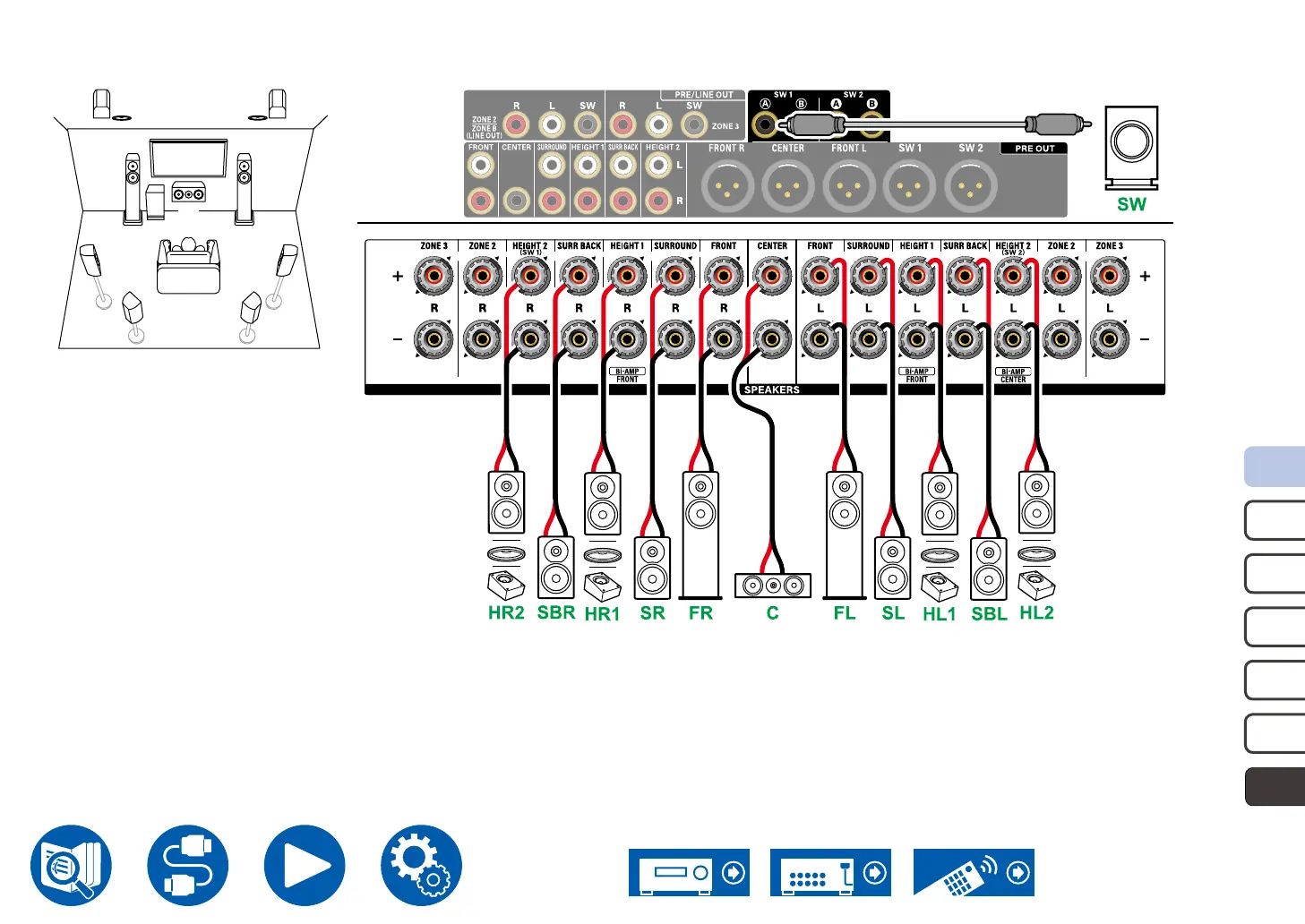

Speaker Connections
 7.1.4 Channel System
FL
FR
SL
SR
SBL SBR
SW
RHR
TMR
RHL
TML
C
*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)).
*2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround,
Surround Back)).
*1 *2*1*2
