3.7.2.1.7 PCI Screen
The PCI Screen provides fields to configure PCI add-in cards, the onboard NIC controllers, and
video options.
To access this screen from the Main screen, select Advanced | PCI.

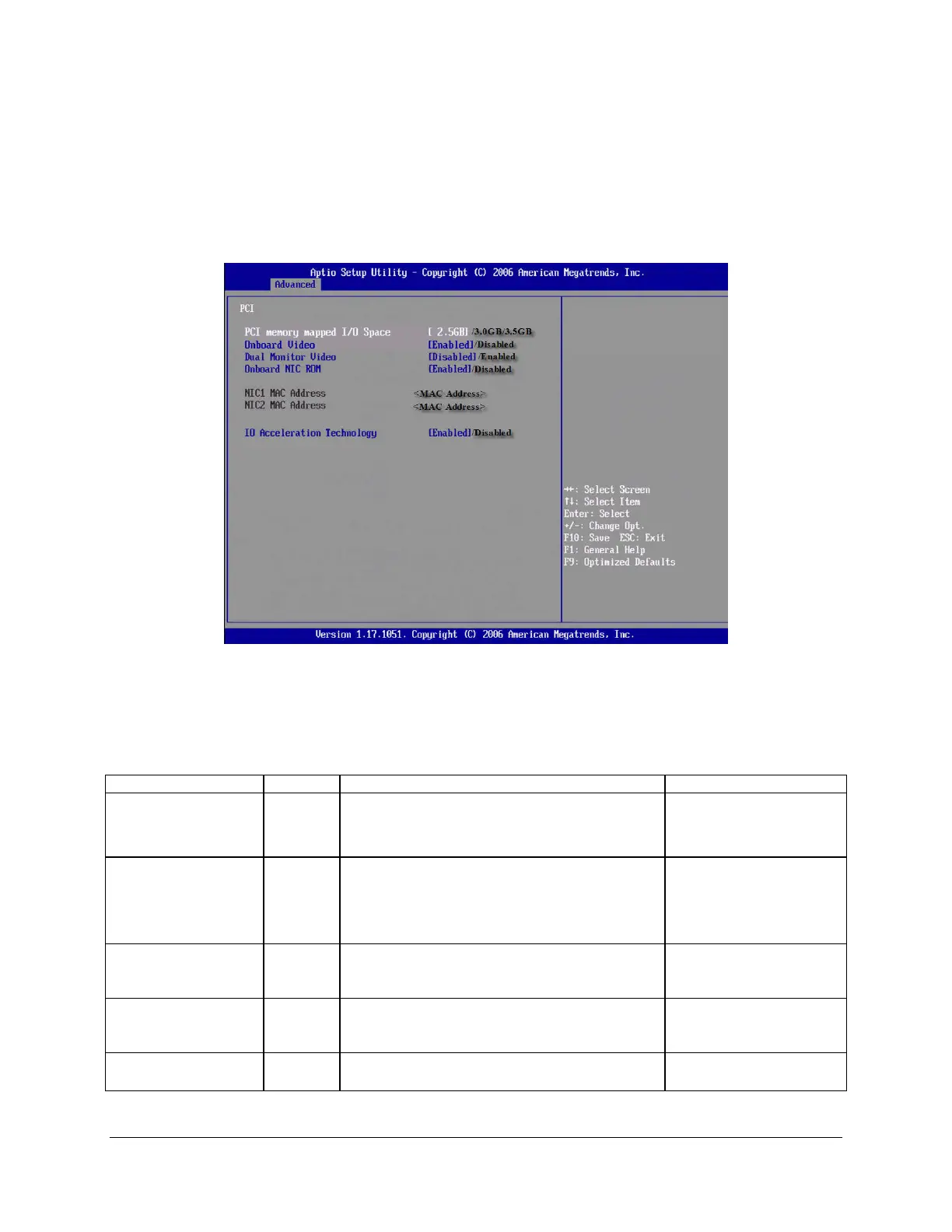

Figure 15. Setup Utility — PCI Configuration Screen Display
Table 23. Setup Utility — PCI Configuration Screen Fields
Setup Item Option Help Text Comment
PCI Memory Mapped
I/O Space
2.5GB
3.0GB
3.5GB
If enabled, allows for mapping of PCI memory
above the 4GB boundary. This requires an OS
which can utilize memory above 4GB
On-board Video
Enabled
Disabled
Enabled or disables the onboard video controller.
Must be enabled for dual monitor video to work
When disabled, and no
other video card is in the
system, there will be no
video running on the
system.
Dual Monitor Video Enable
Disable
If enabled, will allow the onboard video to be in
conjunction with an add-in video controller.
Onboard video will be primary video
On-board NIC ROM
Enabled
Disabled
Enables or disables the network controller option
ROM. If disabled, NIC1 and NIC2 cannot be used
to boot the system
NIC 1 MAC Address No entry
allowed
Information only. 12 hex
digits of the MAC address.
To Next Page
