Intel Agilex Series

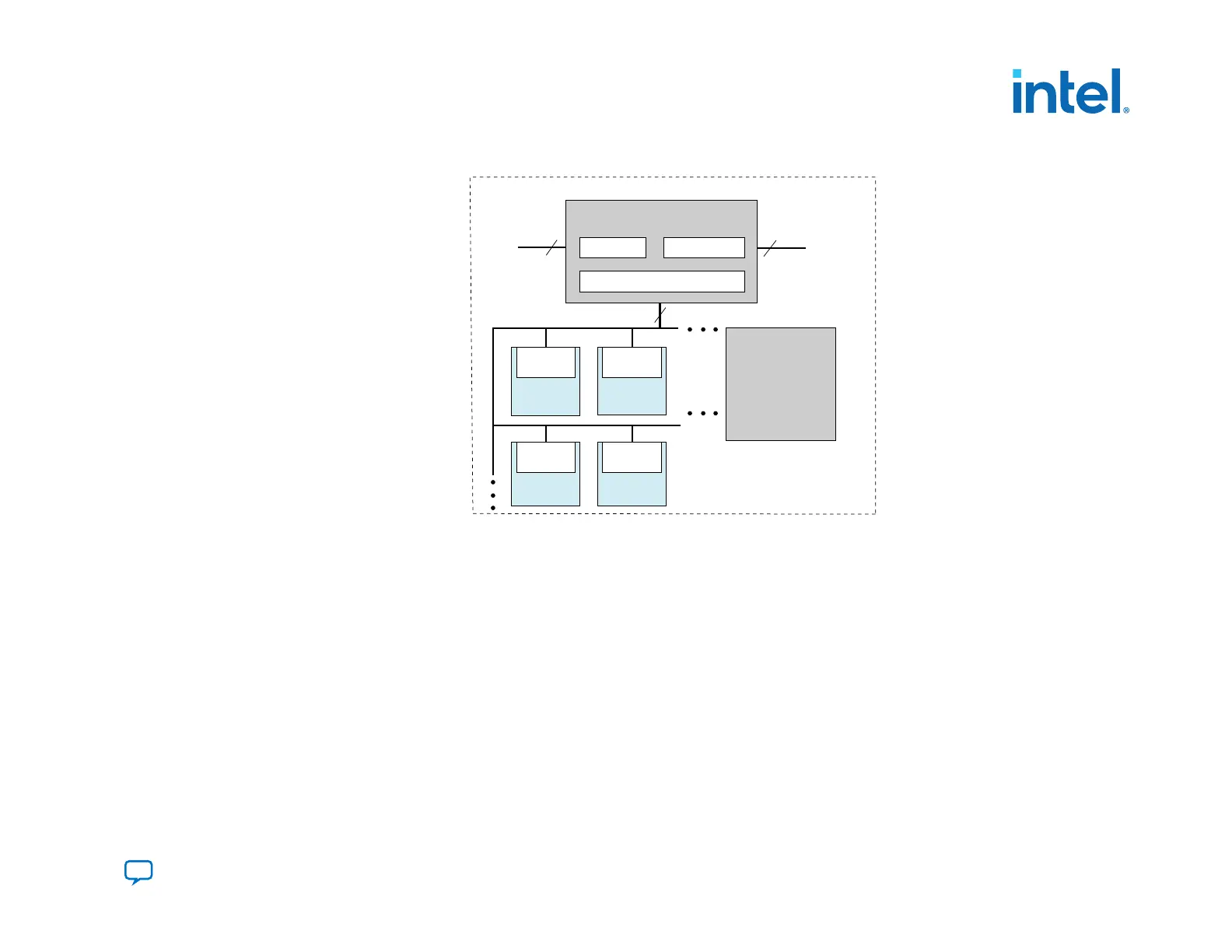

Figure 2. Intel Agilex Configuration Architecture Block Diagram
Configuration
Sector
Configuration
Sector
Configurable Network Interface
SDM Pins
Secure Device Manager
Dual Purpose I/O
Intel Agilex FPGA
Configuration
Sector
Configuration
Sector
Configuration Network
Local Sector
Manager (LSM)
Local Sector
Manager (LSM)
Local Sector
Manager (LSM)
Local Sector
Manager (LSM)
Intel Agilex Blocks
(All Family Variants)
Related Information
Intel Agilex FPGAs and SoC Device Overview
