5.1.2. Remote System Update Using AS Configuration
Remote system update using AS configuration includes the following components:
• Your remote system update host design. The host can be custom logic, the HPS, or a Nios
®
II processor in the FPGA.
• One factory image.
• Flash memory for image storage.
• At least one application image.
• Designs that do not use the HPS as the remote system update host require a Mailbox Client Intel FPGA IP as shown in the
figure below. The Mailbox Client sends and receives remote system update operation commands and responses, such as
QSPI_READ and QSPI_WRITE.

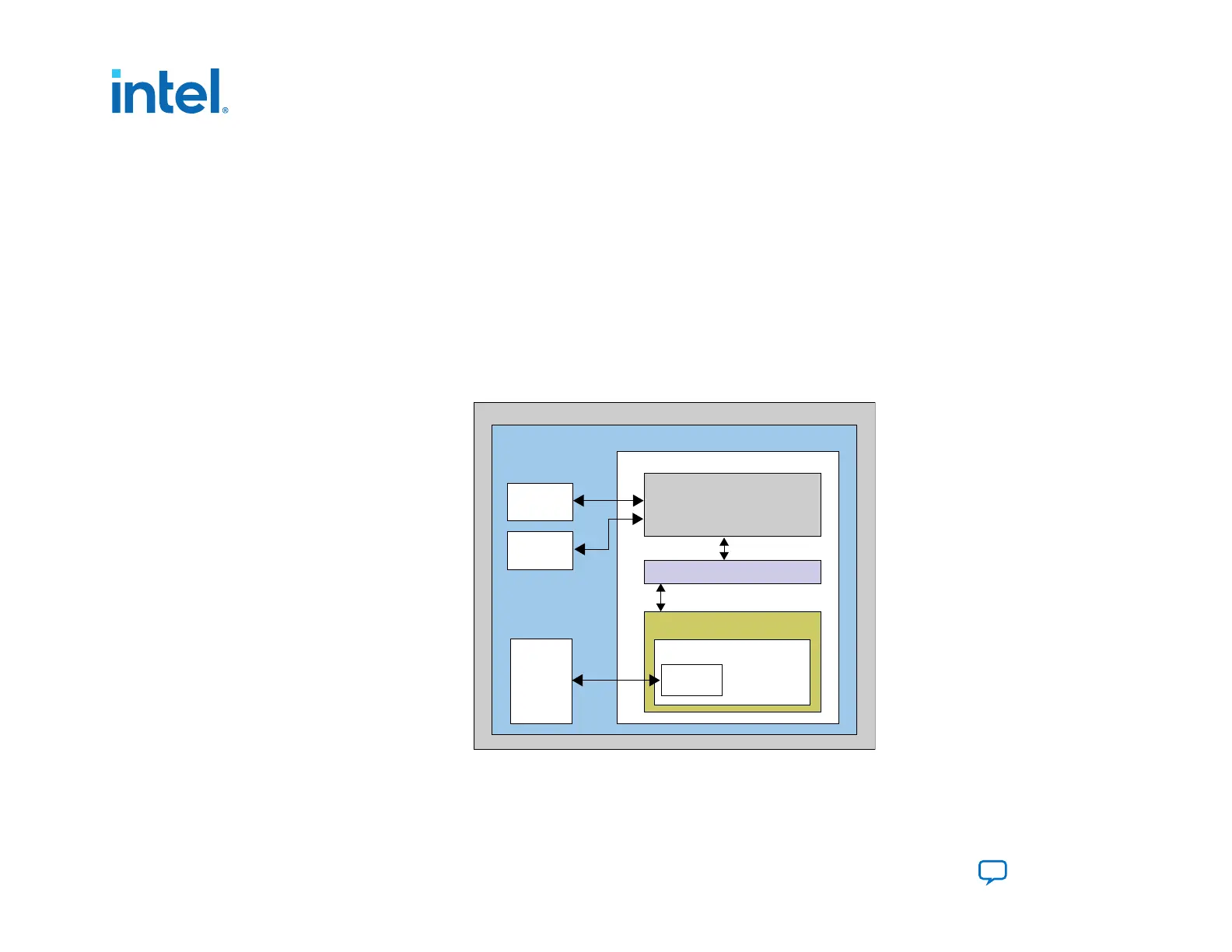

Figure 62. Intel Agilex Remote System Update Components
System
Intel FPGA
Flash
Memory
JTAG
Interface
Mailbox Client IP
Avalon-MM Interface
FPGA Fabric
User Logic
RSU Host
Controller
Secure Device Manager
(SDM)
Board
External
RSU Host
Logic
Related Information
Mailbox Client Intel FPGA IP User Guide
