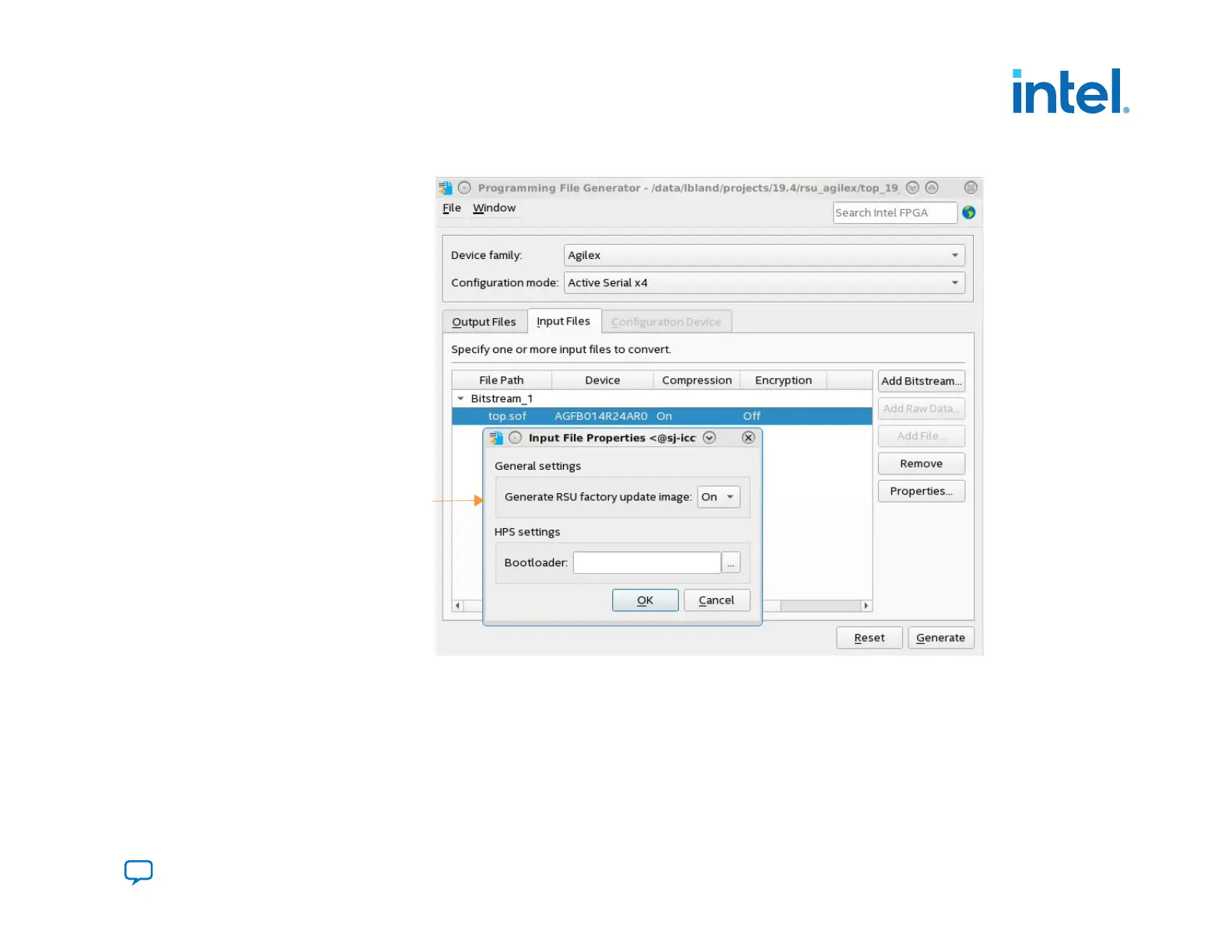

Figure 75. Turn On Remote System Firmware Upgrade

Turn On

10. Click Generate to generate the RSU programming files. You can now update the Intel Agilex firmware. You can save the

configuration in a .pfg file for later use.

5. Remote System Update (RSU)

683673 | 2021.10.29

Send Feedback

Intel

Agilex

™

Configuration User Guide
