4. On the Output Files tab, assign the output directory and file name.
5. Select the output file type.
Select the following file types for the Active Serial (AS) x4 configuration mode:
•
JTAG Indirect Configuration File (.jic)
•
Memory Map File (.map)
•
Raw Programming File (.rpd). Generating the .rpd file is optional.

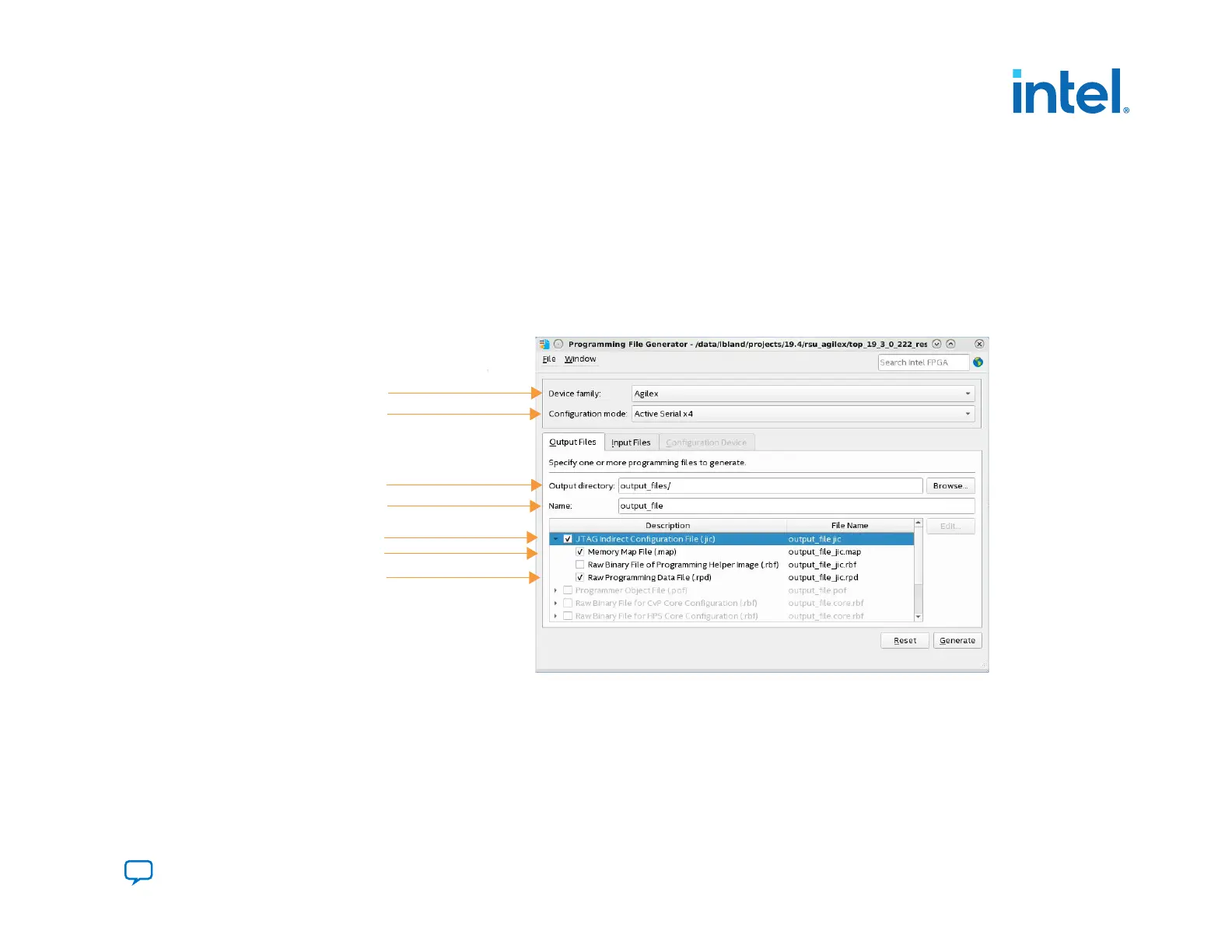

Figure 77. Output Files Tab: Creating Initial Flash Image
Configuration Mode
Raw Programming Data
Output Directory
Output File Name
Device Family
JTAG Indirect Configuration
Memory Map File (.map)
6.
On the Input Files tab, click Add Bitstream, select the factory image .sof file and click Open. Repeat this step for the
application image .sof.
a. Bitstream_1 is the bitstream for factory image.
b. Bitstream_2 is the bitstream for application image.
