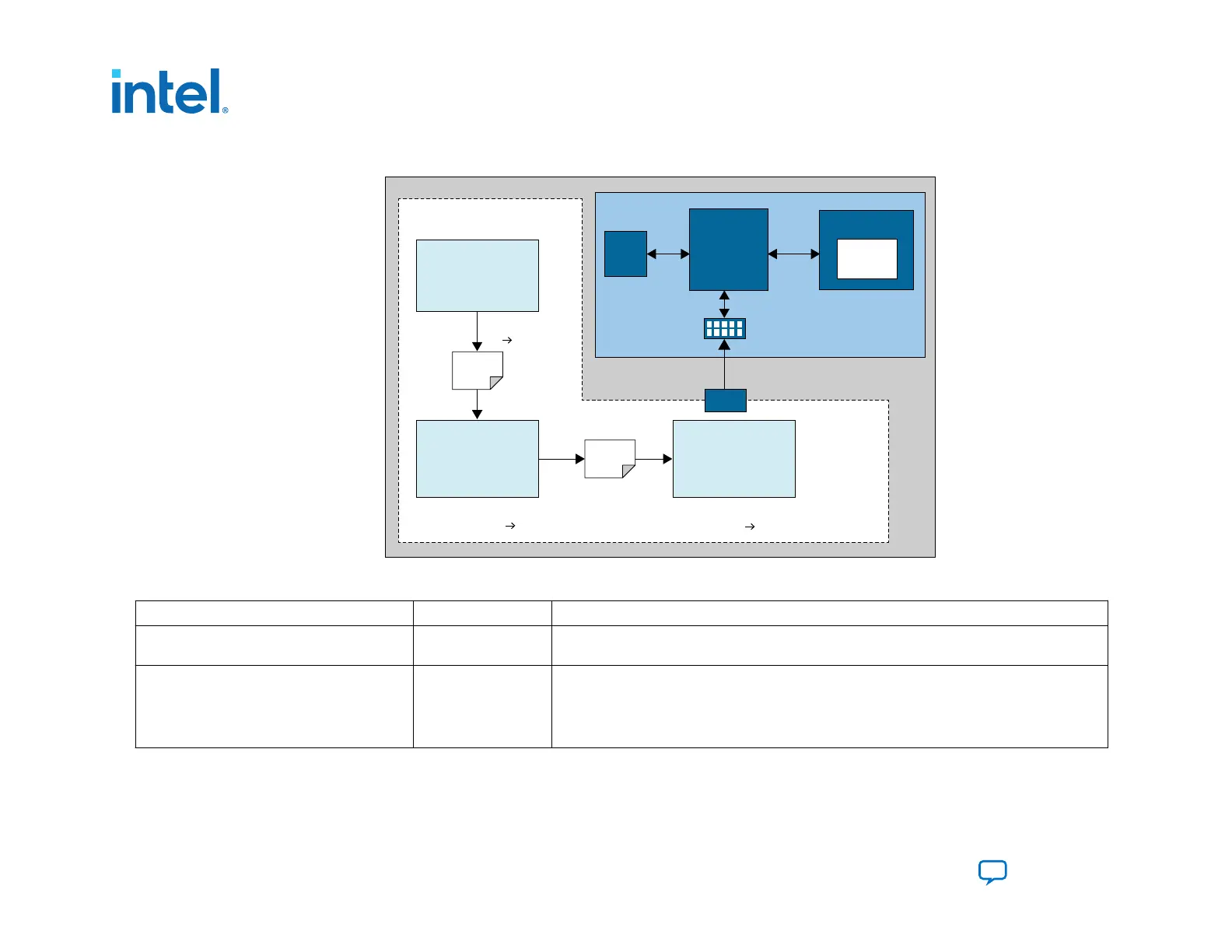

Figure 15. Components and Design Flow for .pof Programming
Quartus Software flow on PC
Quartus Prime
Programmer
10 pin JTAG header
Intel FPGA Download Cable II
CFI
Intel FPGA
SDM
Flash
PCB
Quartus Prime:
File Programming File Generator
Quartus Prime:
File Start Compile
Quartus Prime:
Tools Programming
Quartus Prime
Programming File
Generator
Quartus Prime
Compilation
USB
CPLD with
PFL II
Avalon-ST
SOF
POF
Table 16. Output File Types
Programming File Type Extension Description
Programmer Object File
.pof The .pof is a proprietary Intel FPGA file type. Use the PFL II IP core via a JTAG header to write
the .pof to an external CFI flash or serial flash device.
Raw Binary File
.rbf You can also use the .rbf with the Avalon-ST configuration scheme and an external host such as
a CPU or microcontroller.
You can program the configuration bitstreams or data in the .rbf file directly into flash via a
third-party programmer. Then, you can use an external host to configure the device with the
Avalon-ST configuration scheme.
If you choose a third-party microprocessor for Avalon-ST configuration, refer to the Avalon Streaming Interfaces in the Avalon
Interface Specifications for protocol details.
