Intel Agilex Series

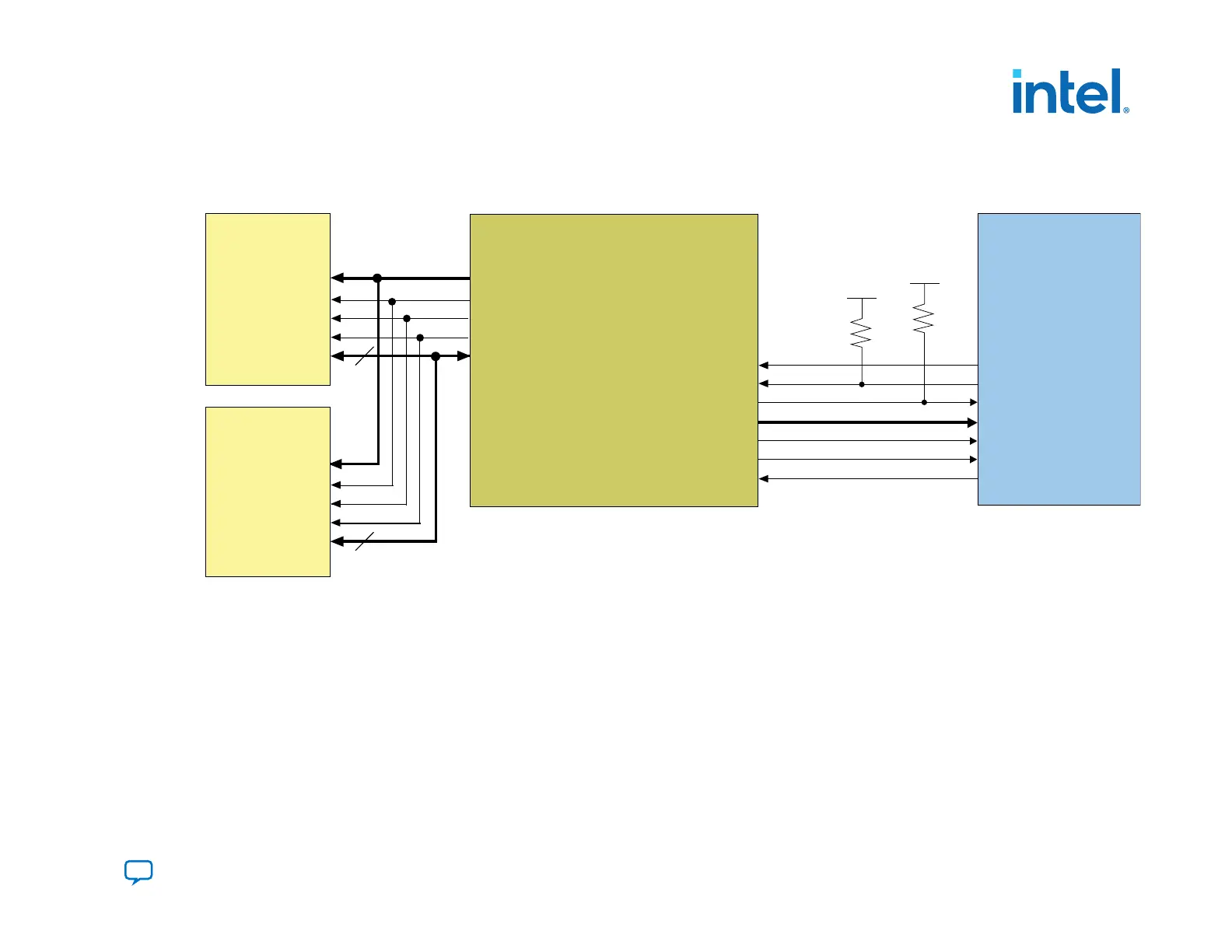

Figure 21. PFL II IP core with Dual MT28EW CFI Flash Memory Devices
The flash memory devices must have the same memory density from the same device family and manufacturer.
CFI Compliant Flash External Host with PFL II IP Core Intel FPGA
CFI Compliant Flash
16
16
ADDR[24..0]
NCE
NWE
NOE
DATA[15..0]
ADDR[24..0]
NCE
NWE
NOE
DATA[15..0]
flash_addr[24..0]
flash_nce
flash_nwe
flash_noe
flash_data[31..0]
fpga_conf_done
fpga_nstatus
fpga_nconfig
avst_data
avst_clk
CONF_DONE
nSTATUS
nCONFIG
AVSTx8_DATA/AVST_DATA
AVSTx8_CLK/AVST_CLK
avst_valid
avst_ready
AVSTx8_VALID/AVST_VALID
AVST_READY
10kΩ
V
CCIO_SDM
10kΩ
V
CCIO_SDM
