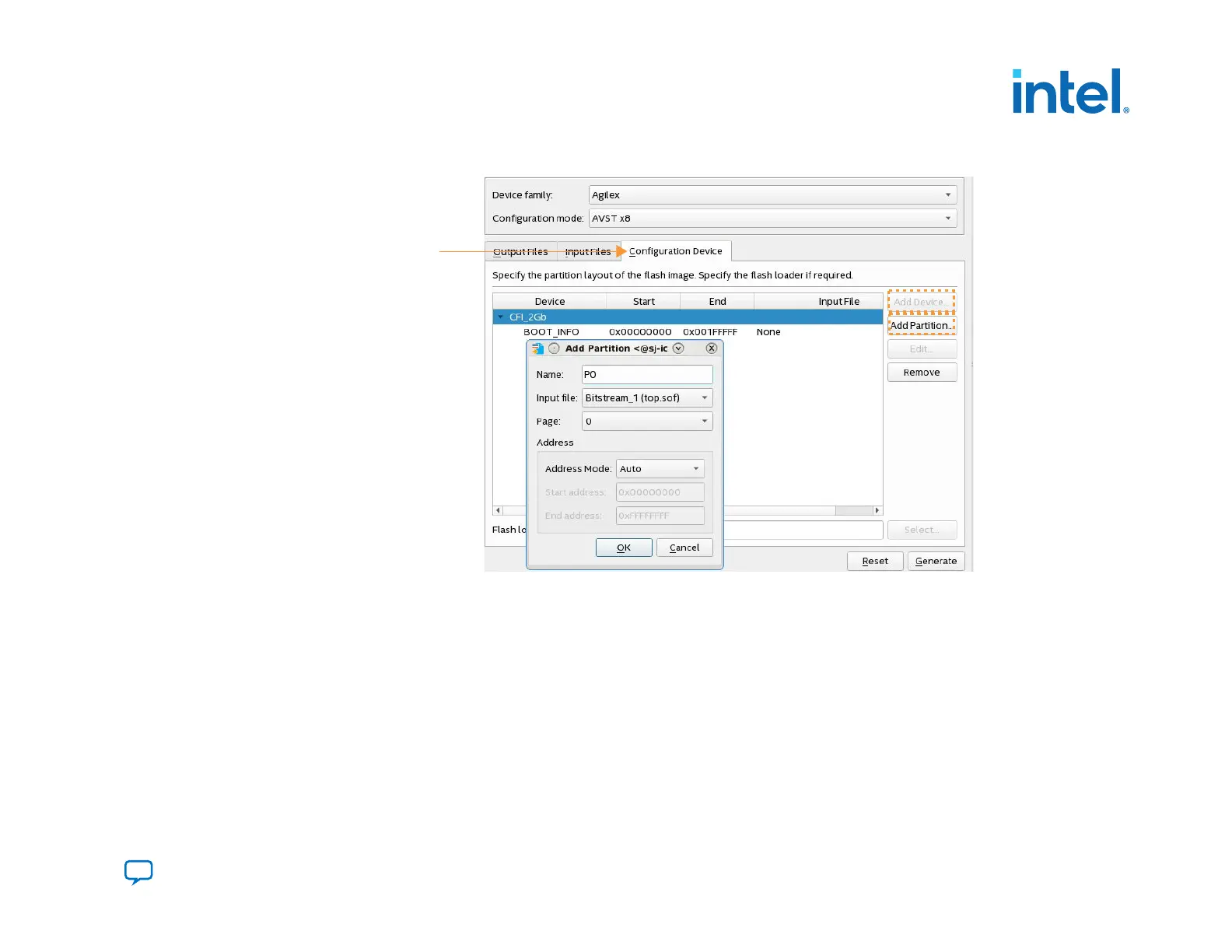

Figure 35. Add Flash Device and Partition
a. For Name select a Partition name.
b.
For Input File specify the .sof.
c.
From the Page dropdown list, select the page to write this .sof.
d. For Address mode select the addressing mode to use.
The following modes are available:
• Auto— For the tool to automatically allocates a block in the flash device to store the data.
• Block—To specify the start and end address of the flash partition.
• Start—To specify the start address of the partition. The tool assigns the end address of the partition based on the
input data size.
