Intel Desktop Board D815EEA2/D815EPEA2 Technical Product Specification
64
2.8.1 Back Panel Connectors

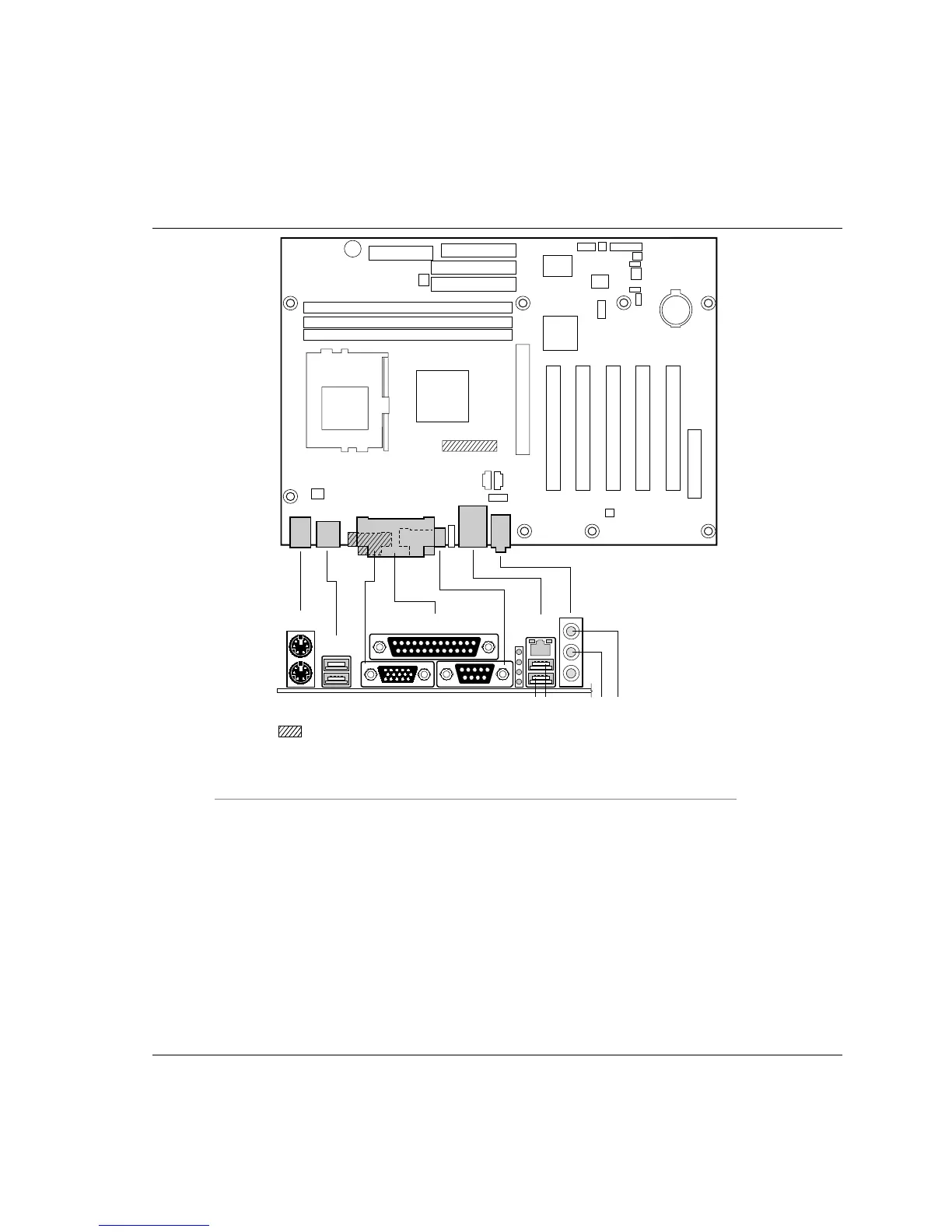

Figure 13 shows the location of the back panel connectors on the D815EEA2 and D815EPEA2
boards. The back panel connectors are color-coded in compliance with PC 99 recommendations.
The figure legend below lists the colors used.
OM11463
A
F
C
H
BKJGDI
L M
Present only on D815EEA2 boards
E
Item Description Color For more information see:
A PS/2 mouse port Green Table 20
B PS/2 keyboard port Purple Table 20
C USB port 1 Black Table 21
D USB port 3 Black Table 21
E VGA port Dark blue Table 22
F Parallel port Burgundy Table 23
G Serial port A Teal Table 24
H LAN (optional) Black Table 25
I USB port 2 Black Table 21
J USB port 0 Black Table 21
K Mic in Pink Table 26
L Audio line out Lime green Table 27
M Audio line in Light blue Table 28
Figure 13. Back Panel Connectors
