Intel Desktop Board D815EEA2/D815EPEA2 Technical Product Specification
96
2.12 Thermal Considerations
CAUTION
An ambient temperature that exceeds the boards maximum operating temperature by 10
o
C could
cause components to exceed their maximum case temperature and malfunction. For information
about the maximum operating temperature, see the environmental specifications in Section 2.14.
CAUTION
The processor voltage regulator area (item A in Figure 25) can reach a temperature of up to 85
o
C
in an open chassis. System integrators should ensure that proper airflow is maintained in the
voltage regulator circuit. Failure to do so may result in damage to the voltage regulator circuit.

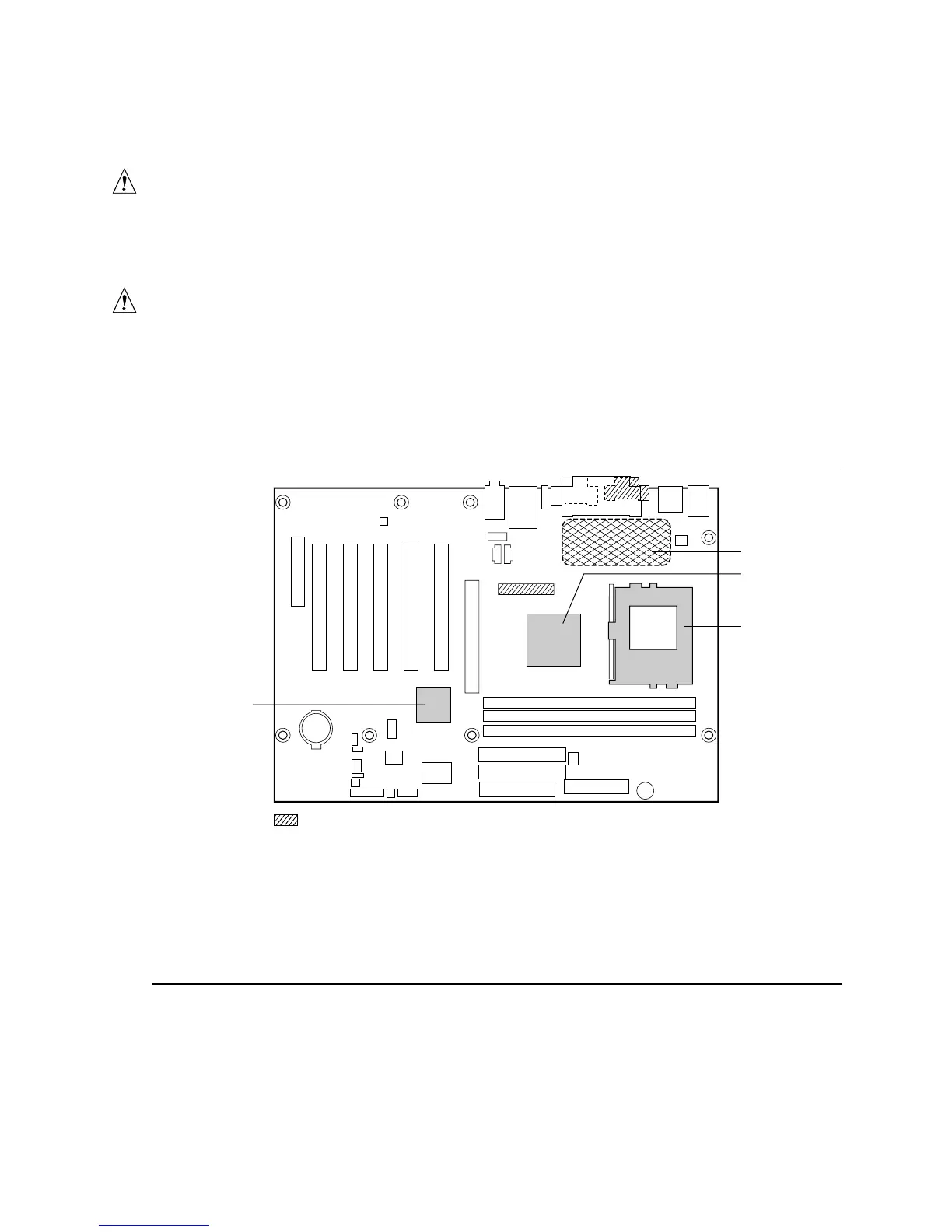

Figure 25 shows the locations of the localized high temperature zones for the D815EEA2 and
D815EPEA2 boards.
OM11468
C
B
D
A
Present only on D815EEA2 boards
A Processor voltage regulator area
B
Intel 82815 Graphics and Memory Controller Hub (GMCH)
(D815EEA2 boards)
Intel 82815EP Memory Controller Hub (MCH)
(D815EPEA2 boards)
C Processor
D Intel
82801BA ICH2
Figure 25. Localized High Temperature Zones
