Intel Desktop Board D815EEA2/D815EPEA2 Technical Product Specification
78
2.8.3 External I/O Connectors

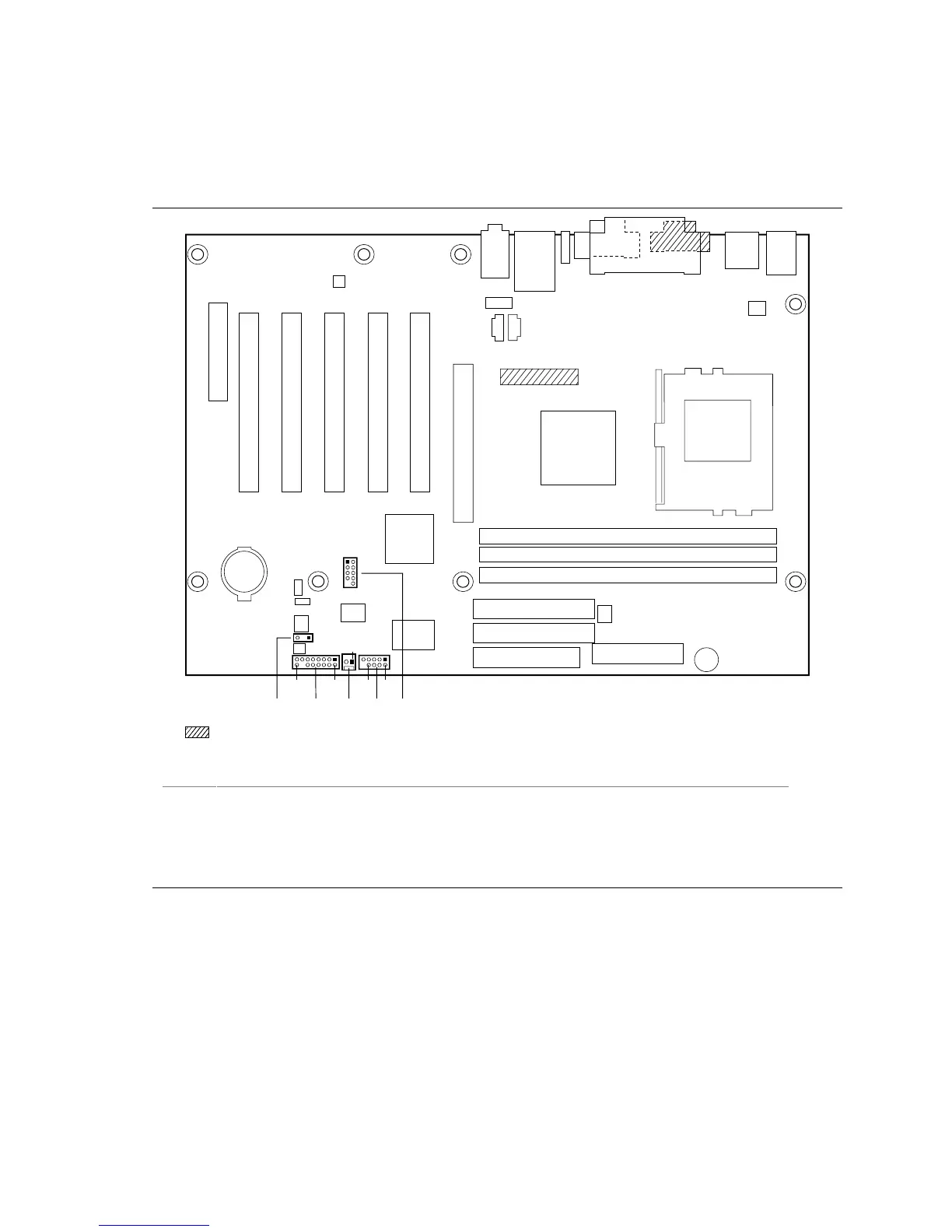

Figure 16 shows the locations of the external I/O connectors on the D815EEA2 and D815EPEA2
boards.
OM11466
A B DC E
2
10
7
1
1
15
2
16
1
1
9
2
8
1
Present only on D815EEA2 boards
Item Description Reference Designator For more information see:
A Auxiliary front panel power LED J9H2 Table 46
B Front panel J9H3 Table 48
C SCSI LED J8H2 Table 47
D Serial port B J8H1 Table 44
E Front panel USB (optional) J8F1 Table 45
Figure 16. External I/O Connectors
