2.10 Mechanical Considerations
2.10.1 Form Factor
The D815EEA2 and D815EPEA2 boards are designed to fit into a standard ATX-form-factor
chassis. Figure 18 illustrates the mechanical form factor for the D815EEA2 and D815EPEA2
boards. Dimensions are given in inches [millimeters]. The outer dimensions are 11.55 inches by
8.20 inches [293.37 millimeters by 208.28 millimeters]. Location of the I/O connectors and
mounting holes are in compliance with the ATX specification (see Section 1.4).
OM11467
6.50[165.10]
1.70[43.18]
2.50[63.50]
2.60[66.04] 8.80[223.52]
5.20[132.08]
9.05[229.87]
6.10[154.94]
2.30[58.42]
0.80[20.32]
0.00
0.00
Present only on D815EEA2 boards

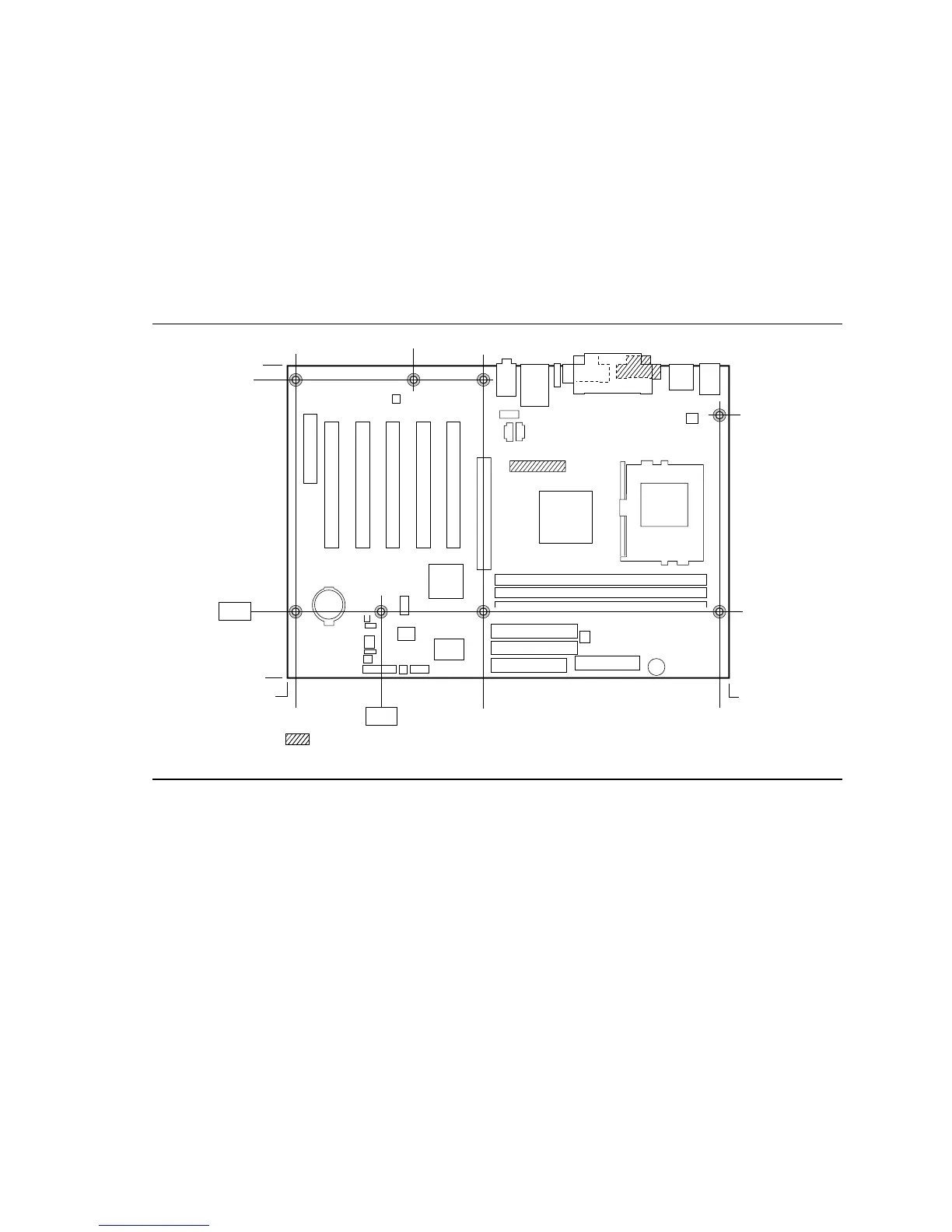

Figure 18. Board Dimensions
