Intel Desktop Board D815EEA2/D815EPEA2 Technical Product Specification
86
OM11400
0.063±0.005
[1.600±0.120]
8X R0.5 MIN
0.567
[14.400]
0.465
[11.811]
0.027
[0.690]
0.519
[13.190]
3x Dia 0.330 [8.380]
6.390 Ref
[162.300]
0.787±0.010 TYP [20±0.254]
0.039 Dia. [1.000]
0.884
[22.450]
0.276
[7.012]
0.465
[11.811]
0.567
[14.400]
1.807
[45.892]
2.079
[52.804]
3.219
[81.768]
5.010
[127.250]
4.451
[113.050]
5.732
[145.584]
0.447
[11.345]
1.195
[30.360]
0.00
0.00
Pictorial
View
4x Dia 0.125 [3.180]
0.621
[15.770]
1.89
Ref

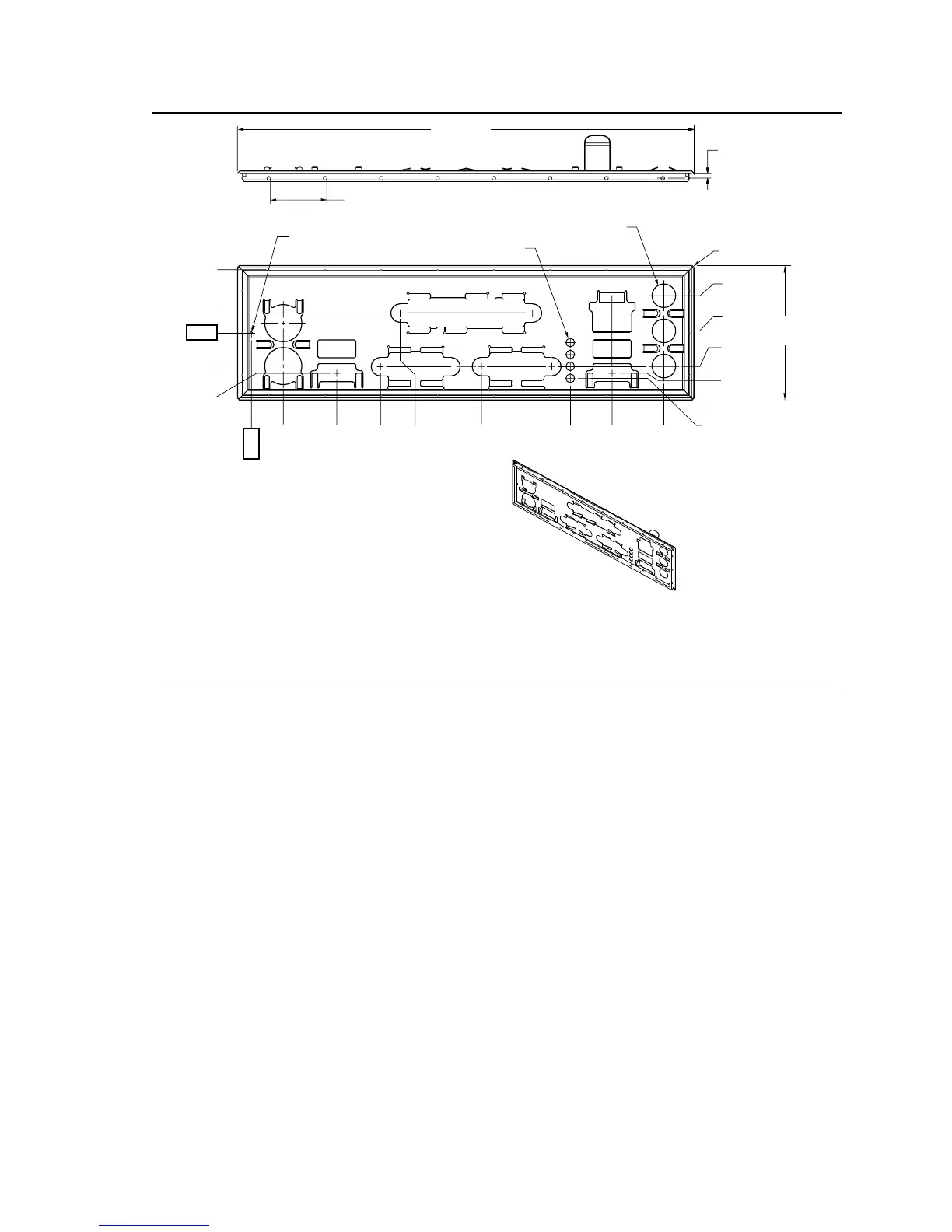

Figure 19. I/O Shield Dimensions
(for D815EEA2 Universal Boards with Onboard LAN Subsystem)
