Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
88
3.2.2 Removing the ESRT2 RAID 5 Key
1. Power off the system and disconnect the power cable(s).
2. Remove the chassis side cover.
3. Using the key pull tab, pull the key up until it disengages from the connector.
3.3 Intel® VROC Key Installation/Removal (S2600ST Server Board Family Only)
3.3.1 Installing the Intel® VROC Key

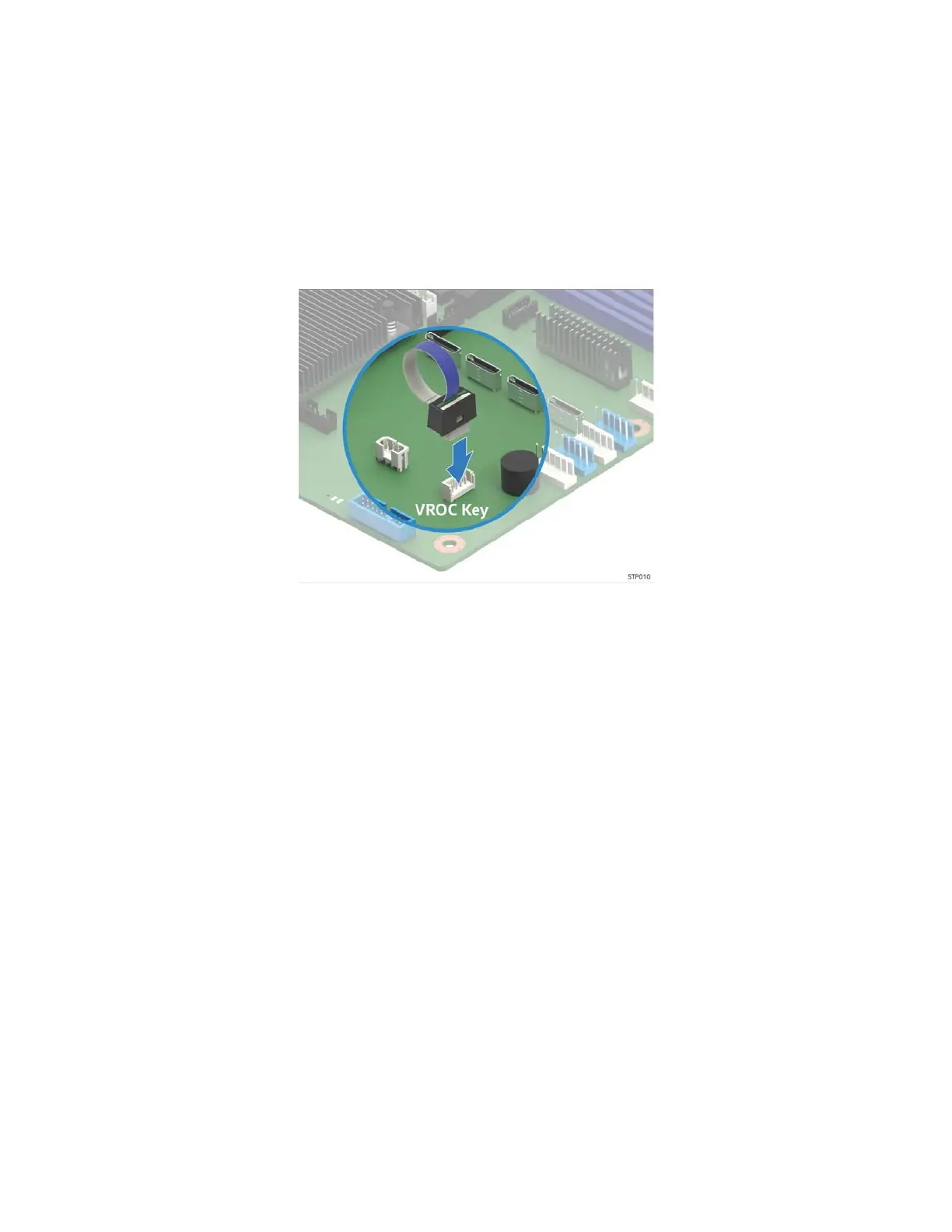

Figure 114. VROC Key Location
1. Remove the ESRT2 RAID 5 Key from its packaging.
2. Locate the key connector shown in Figure 107.
3. To install the key, place it over the connector and confirm the orientation of the key matches that of
the connector.
4. Press the key down onto the connector.
3.3.2 Removing the Intel® VROC Key
1. Power off the system and disconnect the power cable(s).
2. Remove the chassis side cover.
3. Using the key pull tab, pull the key up until it disengages from the connector.
