5. Cable connections:
S2600CW Server Board Family:

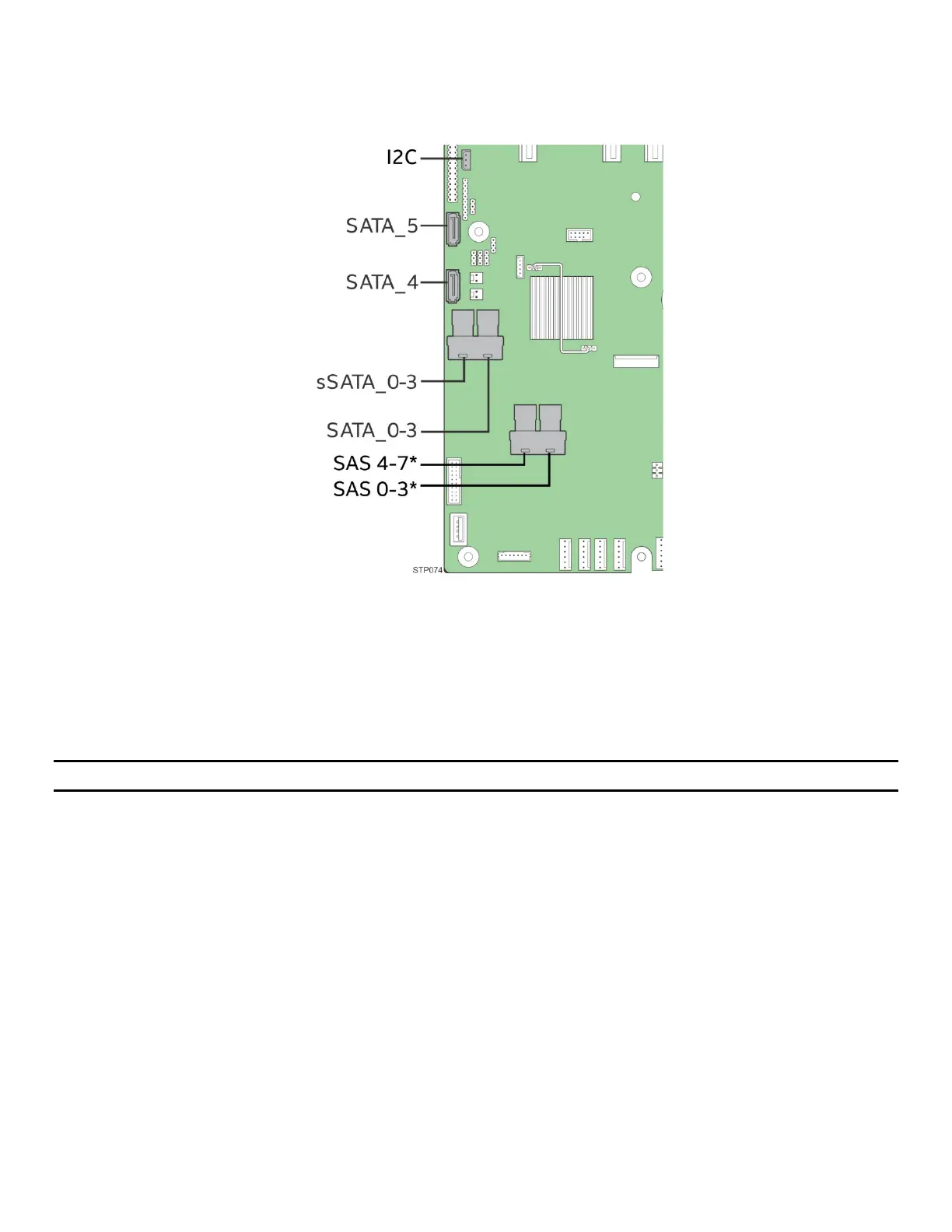

Figure 79. Connecting Data Cables for Two 8x2.5” Hot-Swap Drive Bay Kits – 2600CW Board Family
6. Connect two of the Mini-SAS HD cables to the server board connectors labeled as SAS_0-3 and
SAS_4-7 and one end of the I²C cable in the locations shown on the above illustration.
7. Additionally, connect the other two Mini-SAS HD cables to the server board connectors labeled as
sSATA_0-3 and SATA_0-3.
Note: The SAS_0-3 and SAS_4-7 are available on S2600CW2S and S2600CWTS.
The two backplanes are cascaded with an I²C cable as shown below.
