3.6 Trusted Platform Module (TPM) Installation
3.6.1 For S2600CW Server Board Family

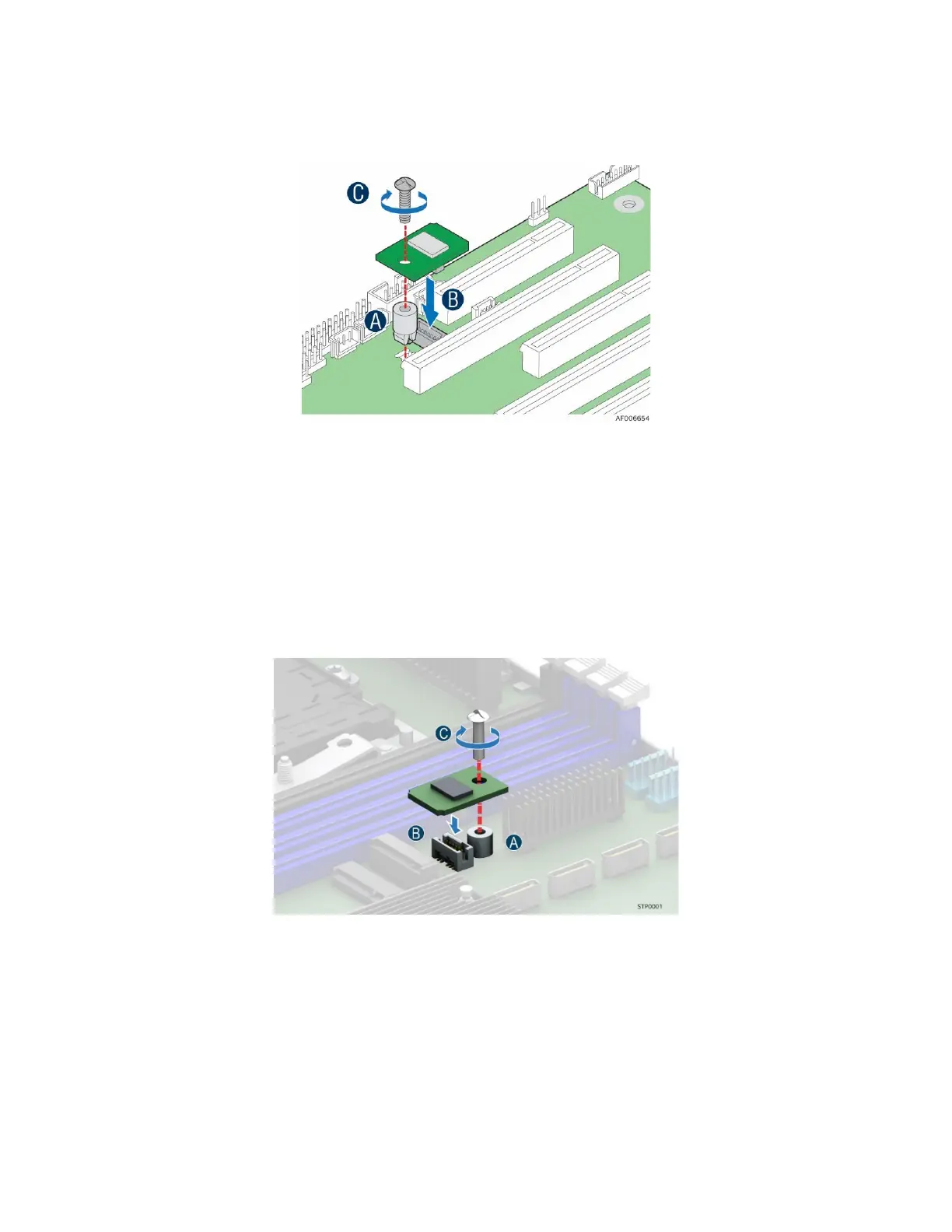

Figure 117. Platform Module (TPM) Installation – S2600CW Board Family
1. Locate the TPM module connector on the server board near the first PCIe* slot.
2. Install the stand-off to the server board mounting hole (see letter A).
3. Place the TPM module over the connector, match the orientation and press the key down onto
the connector (see letter B).
4. Secure the TPM module to the stand-off with the screw (see letter C).
3.6.2 For S2600ST Server Board Family
Figure 118. Trusted Platform Module (TPM) Installation – S2600ST Board Family
1. Locate the TPM module connector on the server board next to the DIMM slots.
2. Install the standoff to the server board mounting hole (see letter A).
3. Place the TPM module over the connector, match the orientation and press the key down onto
the connector (see letter B).
4. Secure the TPM module to the stand-off with the screw (see letter C).
