Intel P4304XXMUXX - Figure 159. P4304 XXMFEN2 Cable Routing - S2600 ST Server Board Family; Figure 160. P4304 XXMUXX Cable Routing - S2600 ST Server Board Family

Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
142

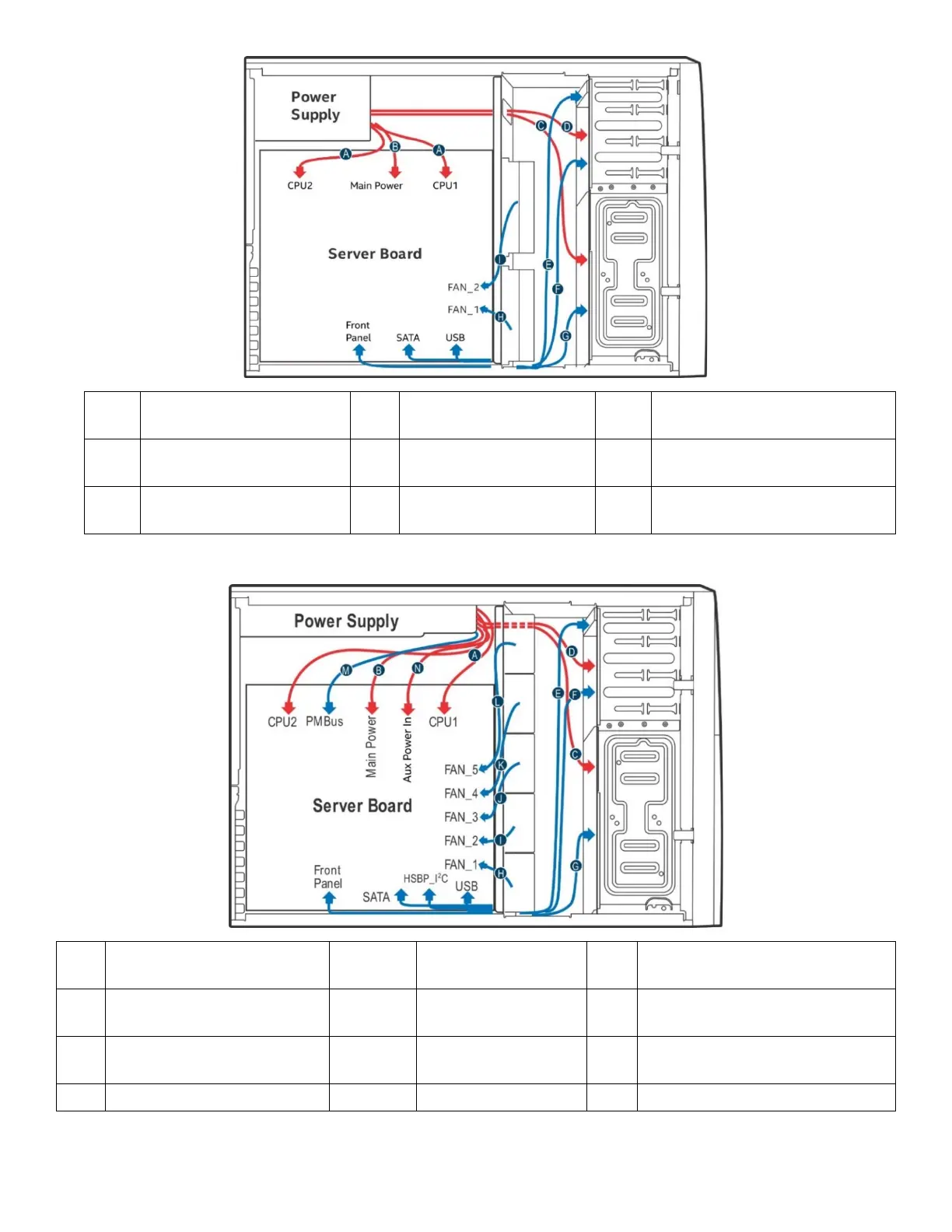

Figure 159. P4304XXMFEN2 Cable Routing - S2600ST Server Board Family
Figure 160. P4304XXMUXX Cable Routing - S2600ST Server Board Family
A CPU1/2 power cable B Main power cable C SSD/HDD drive bay power cable
(SAS/SATA)
D ODD drive bay power
cable
E Front panel and USB
cable
F ODD data cable
G SSD/HDD drive bay data
cable (SATA)
H FAN_1 cable (PCIe* fan) I FAN_2 cable (CPU fan)
A CPU1/2 power cable B Main power cable C SSD/HDD drive bay power cable
(SAS/SATA)
D ODD drive bay power cable E Front panel and
USB cable
F ODD data cable
G SSD/HDD drive bay data
cable (SATA)
H, I, J,
K, L
FAN_n cables M PMBus cable
N
Aux Power In
