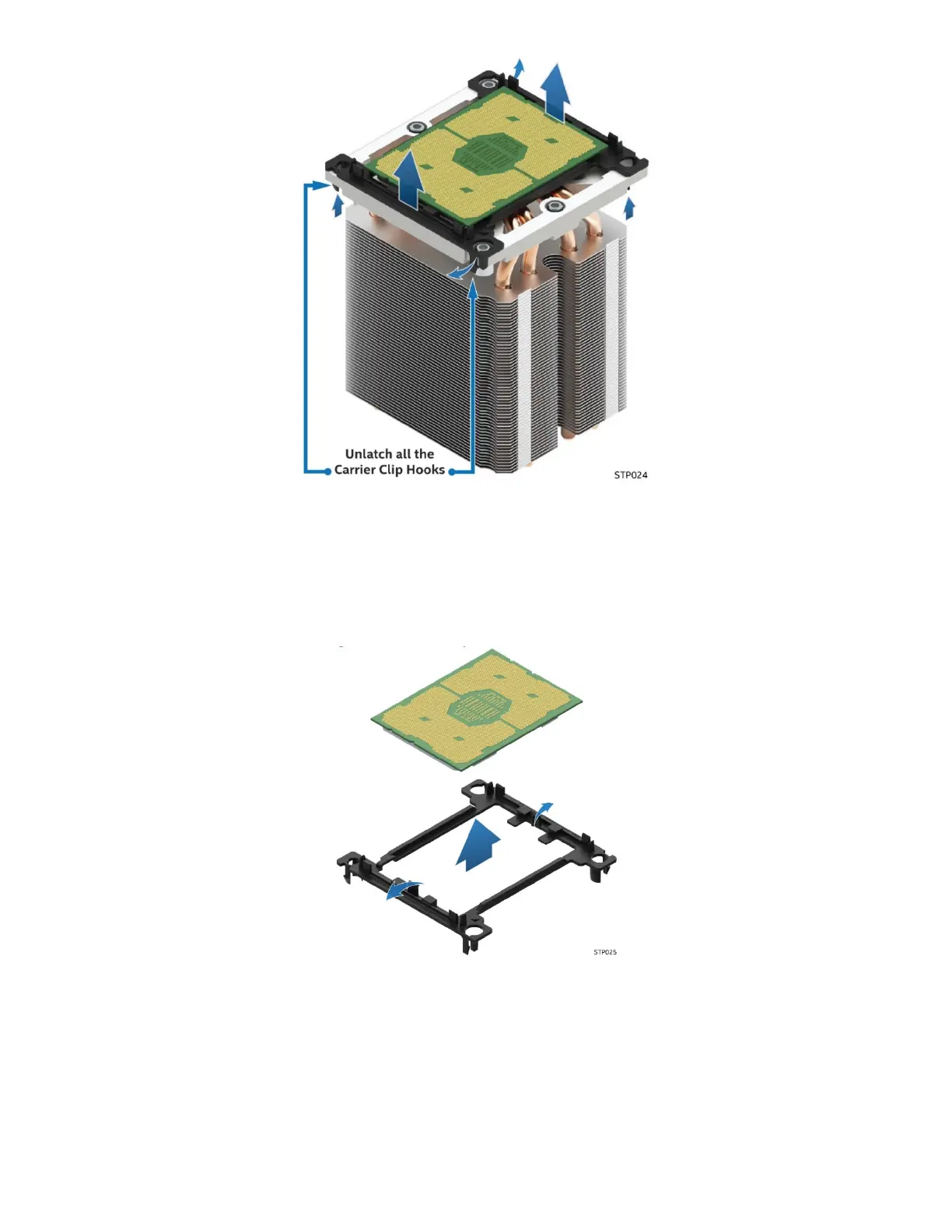

Figure 44. Releasing the Processor Carrier Clip from the Heat Sink
5. Remove the processor from the processor carrier clip by carefully pushing back one of the latches
located on the ends of the processor and rotating the processor up and out of the processor
carrier.
Figure 45. Releasing Processor from Carrier Clip
