Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
113
• Upgrade Option: One optional 2.5” drive bay with Hot-Swap backplane. Supports up to 8x2.5”
drives (SAS/SATA/NVMe).
• Upgrade Option: One 2.5” drive bay with dual port Hot-Swap backplane. Supports up to 8x2.5”
SAS drives.
• Upgrade Option: Two optional 2.5” drive bay with Hot-Swap backplanes supporting up to 16x2.5”
drives (SAS/SATA).

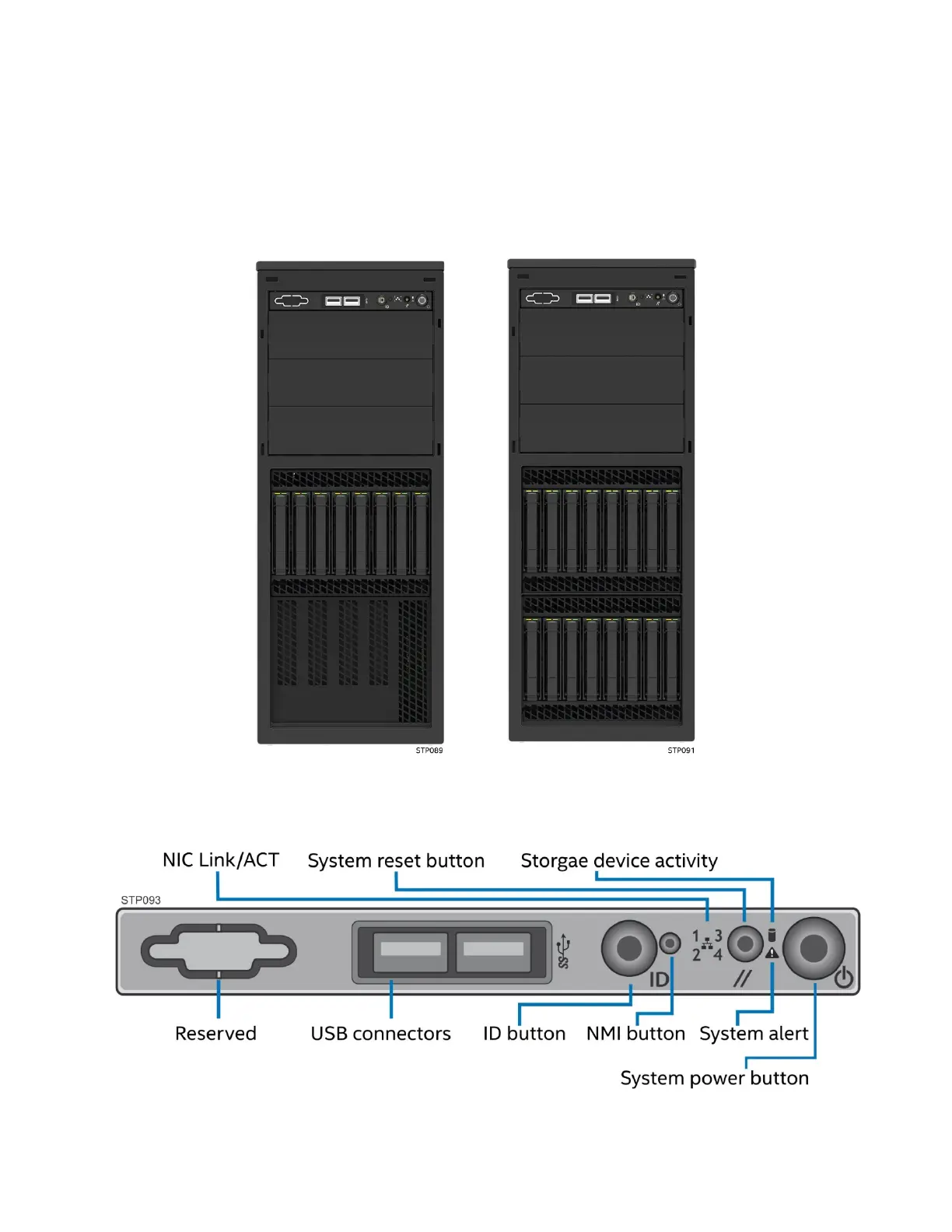

8x2.5 Upgrade Option 16x2.5 Upgrade Option
6.1.2 Control Panel Features
Figure 132. P4304XXMFEN2/P4304XXMUXX Front Panel
