2.3.9.2 Drive Carrier Installation

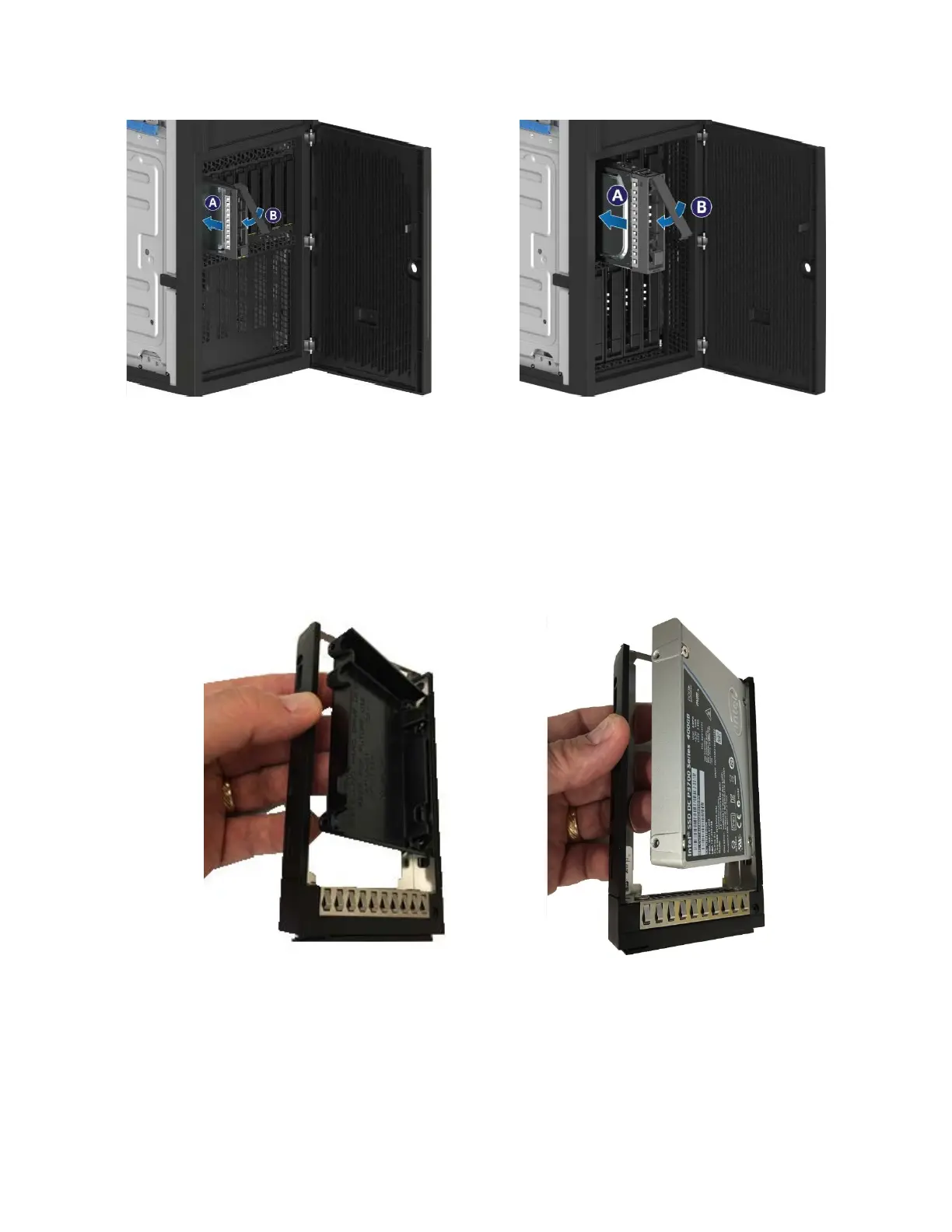

Figure 89. Drive Carrier into Chassis Installation
1. Align the drive assembly with the open drive bay
2. With the lever in the open position, insert the drive assembly into the drive bay (See letter A) and
push forward until the drive makes contact with the backplane
3. Complete the drive installation by closing the drive assembly lever until it locks into place (See
letter B)
2.3.9.3 2.5” HDD / SSD Drive Carrier Assembly
Figure 90. 2.5” Drive Carrier Assembly – Drive / Drive Blank Removal
1. Remove the drive or drive blank from the carrier by gently rotating the top edge of a carrier rail
outwards while at the same time pushing the drive or drive blank up from the bottom (as shown
above).
