Intel

Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide

121

6.2 System Configuration and Recovery Jumpers

6.2.1 S2600CW Server Board Family

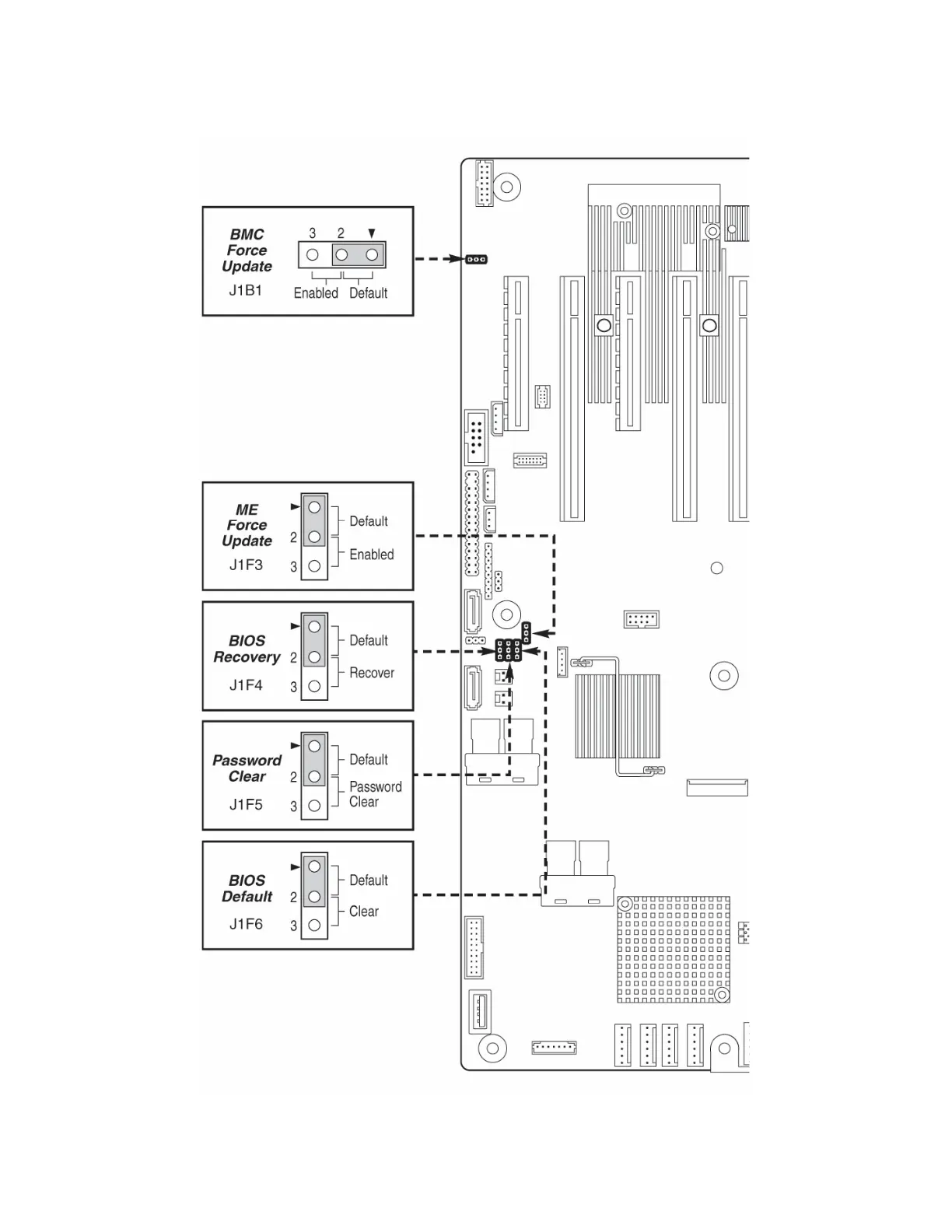

Figure 141. System Configuration and Recovery Jumpers
