Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
97

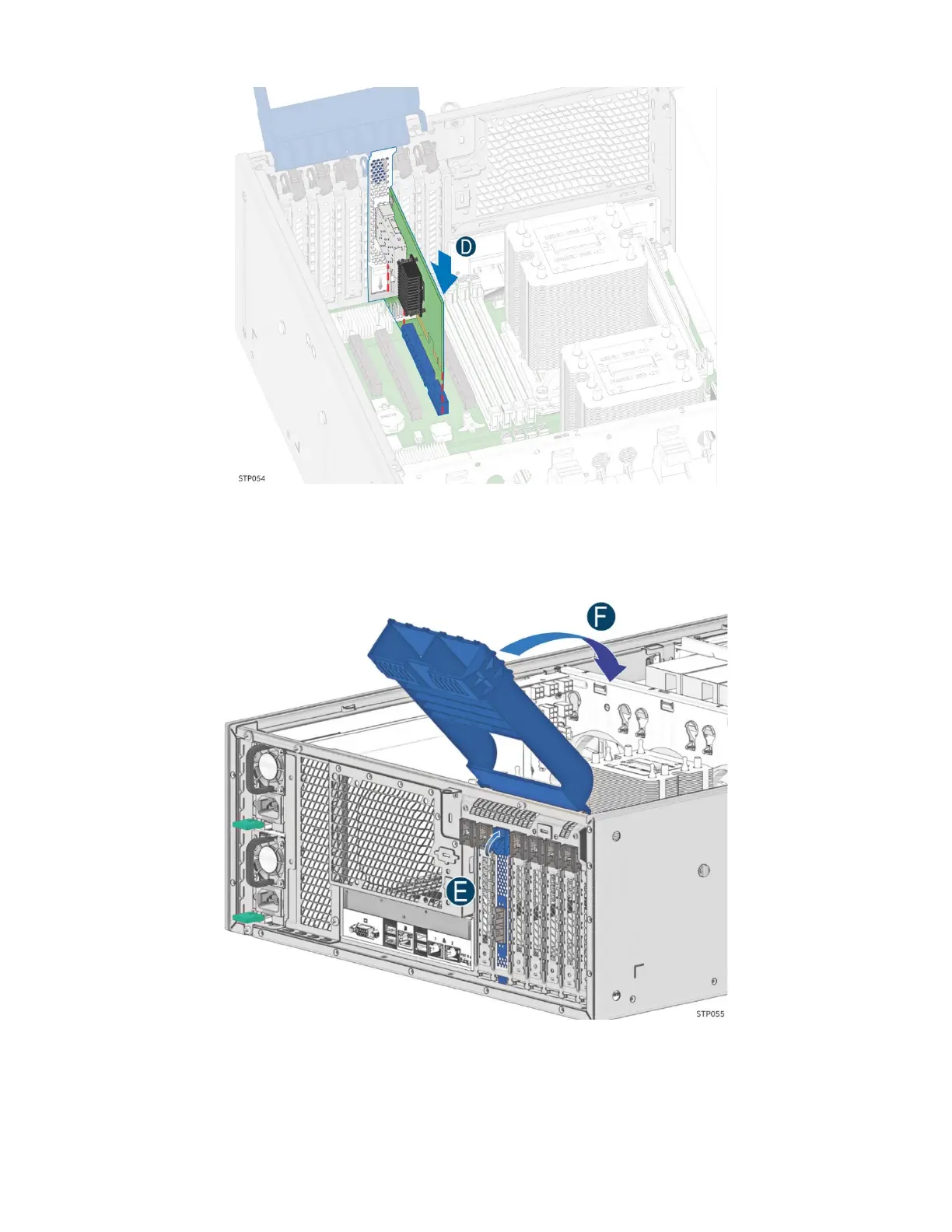

Figure 125. Installing the LAN Riser 2/3
6. Install the LAN riser in PCIe* Slot 5 on the server board (see letter D).
Figure 126. Installing the LAN Riser 3/3
7. Secure the LAN riser PCIe* retainer (see letter E).
8. Return the GPGPU retainer to its original position (see letter F).
