3.5 Intel® Remote Management Module 4 Lite Key – Installation / Removal
3.5.1 Intel® RMM4 Lite Key Installation

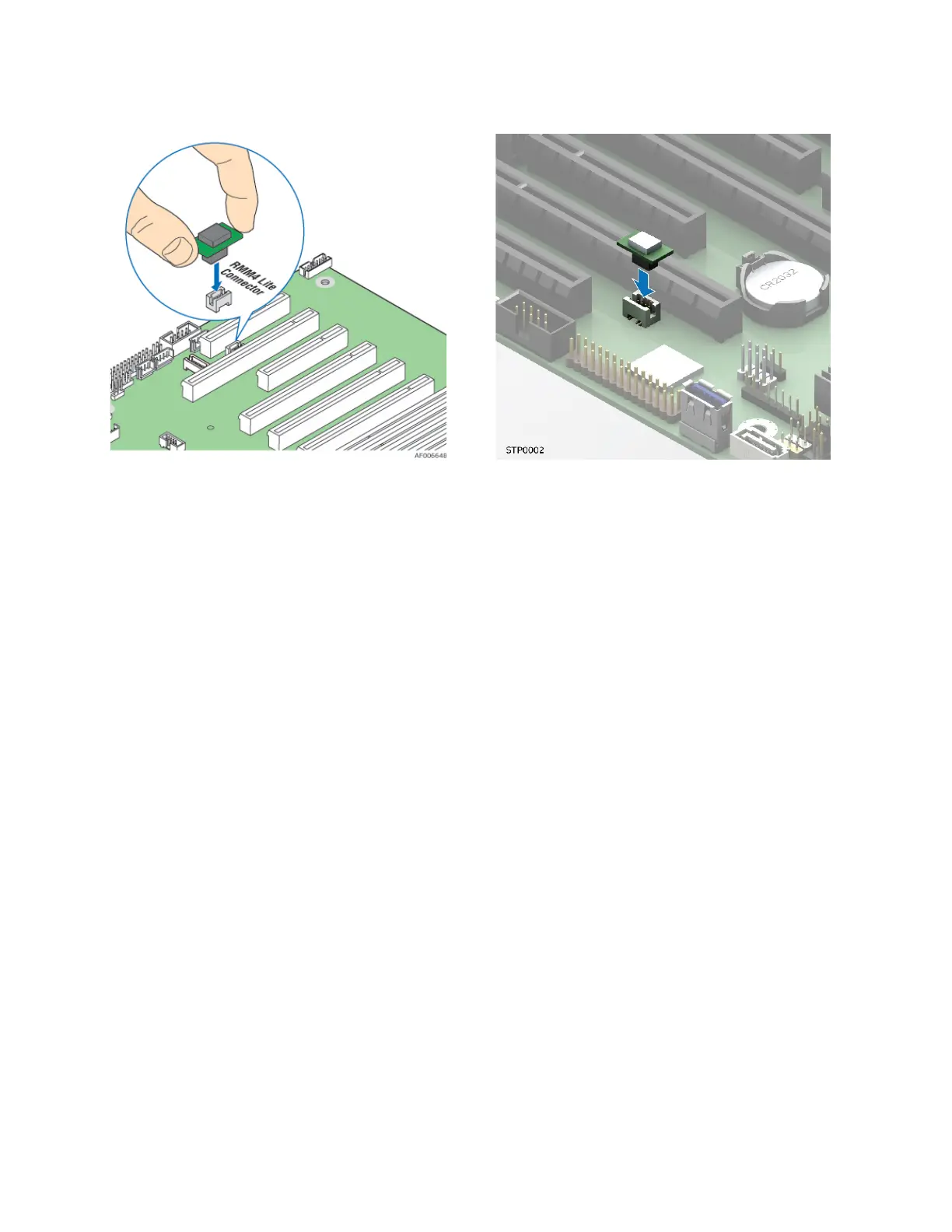

Figure 116. Installing the Intel
®
RMM4 Lite
1. Remove the Intel® RMM4 Lite key from its packaging.
2. Locate the Intel® RMM4 Lite connector on the server board between the first two PCIe* slots.
3. Place the Intel® RMM4 Lite key over the connector and match the orientation of the key to that of
the connector.
4. Press the key down onto the connector.
3.5.2 Intel® RMM4 Lite Key Removal
1. Power off the system and disconnect the power cable(s).
2. Remove the chassis side cover.
3. Carefully grasp the key and pull it up until it disengages from the connector.
