Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
11
1.2.5 Server Board Installation
Note: Follow ESD precautions outlined at the beginning of this document.

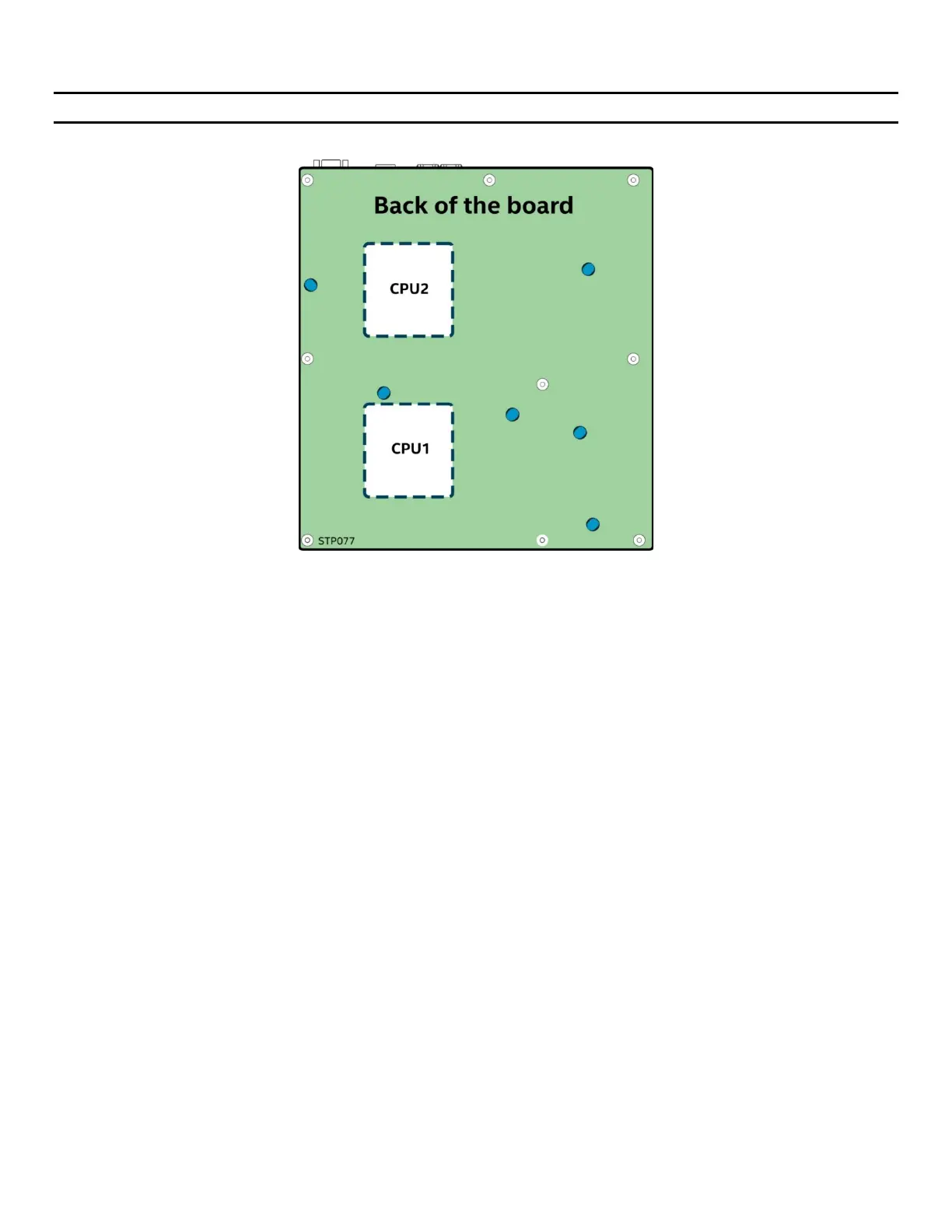

Figure 11. Bumper Position on Server Board
1. Remove the server board from its anti-static bag.
2. Attach the bumpers to the back of the server board. They are identified with circles as shown in
the above illustration.
